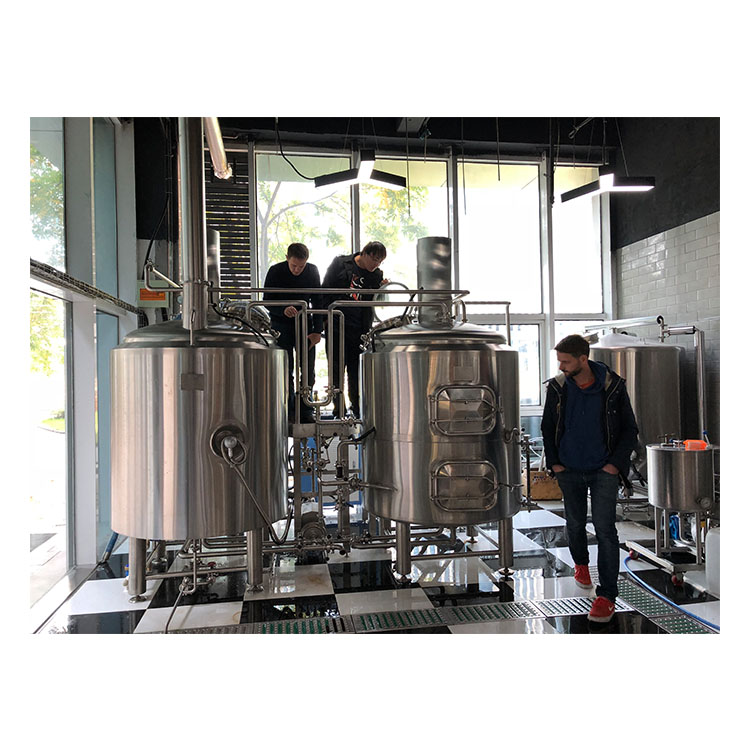

The picture shows a two vessels's combination of beer mash and boiling, filtering and Lauter/whirlpool tun equipment in the installation site of our customer.Inner material SUS304, 3mm, thick stainless steel as outer material.

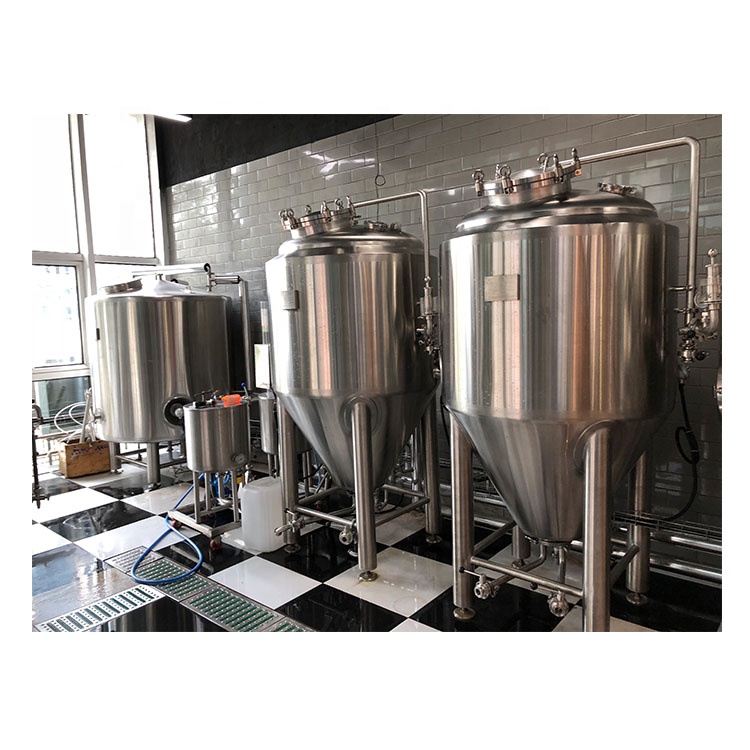

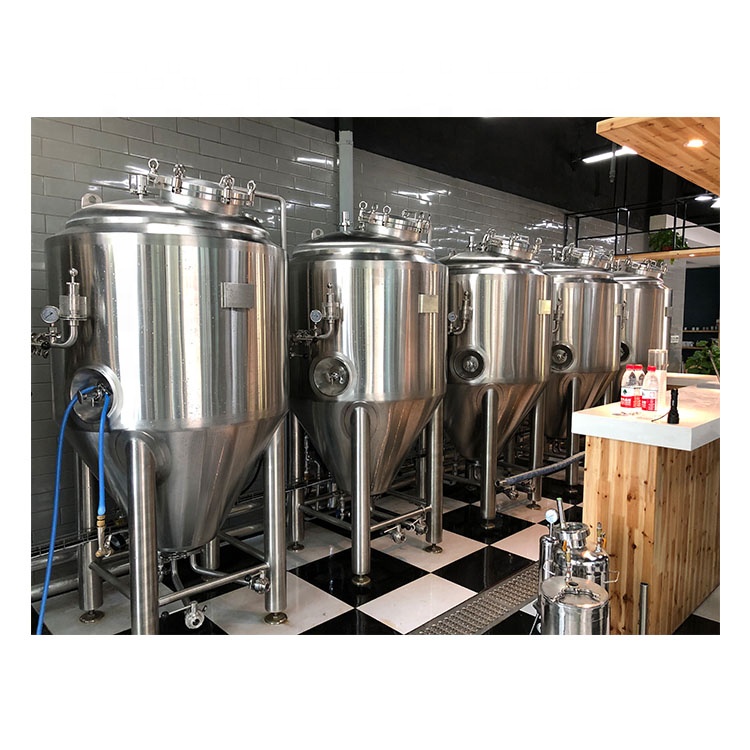

The picture shows the beer fermentation tank and the CIP cleaning water truck,Inner material SUS304, thickness 3mm; Outer material SUS304, thickness 2mm; Dimensions: D = 1060mm, H = 2260mm / device manhole opening height 2530mm.Miller plate jacket, material SUS304, thickness 1.5mm, cylinder cooling area is about 40% of the cylinder surface area, cone cooling area is about 50% of the cone surface area.Polyurethane foam insulation, thickness 80mm.The pressure resistance of the tank is 2.5 bar.
Inside the equipment 2B surface, pickling passivation treatment, welds after fine treatment, no deformation, etc.; external surface wire drawing treatment, equipment appearance, pipe layout, opening position, etc. to meet the operation, On-site installation and visit requirements. The upper part is equipped with manhole and positive and negative pressure safety valve, single head.Equipped with a washing ball, the installation position is slightly lower than the welding seam between the cylinder and the head, the cleaning tube Ø32,The upper cleaning port is connected to the cleaning trolley

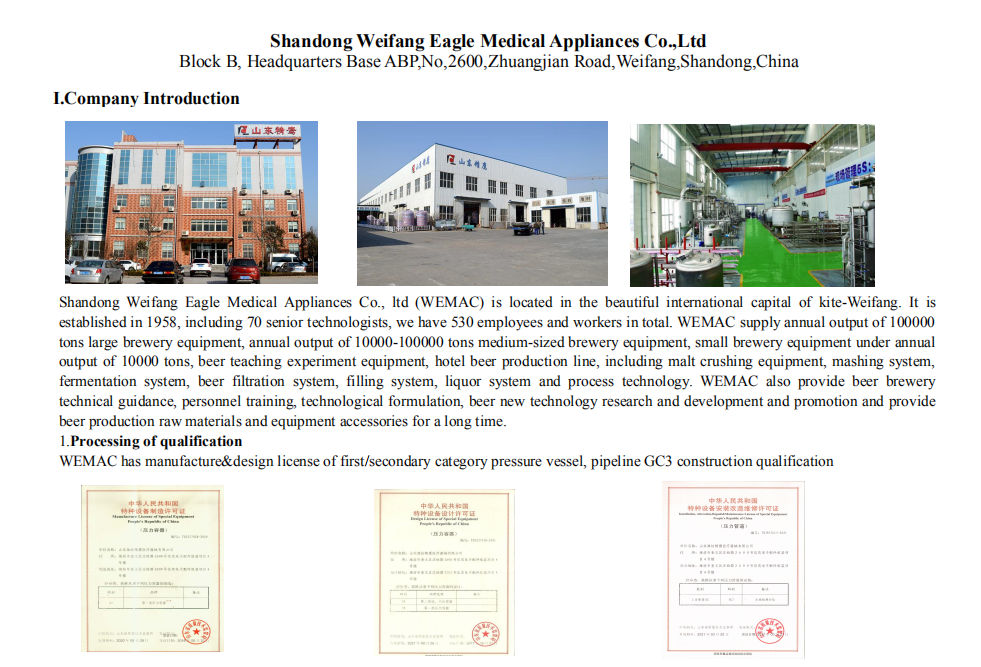

we are the professional beer brewing equipment manufacturer and supplier,we have been in this industry for many years ,and our factory was established in 1958,except the beer brewing equipment,we are also the pharmaceutical equipment manufacturer too,beer equipment also in very high standard the same as pharmaceutical equipment.
If you want to ask anything just fill in the form below and send us.
Name: Samuel time:2020-08-20 10:03:12
The equipment is of good quality and the beer tastes good.
Name: Beer brewing buyer time:2020-07-23 13:50:15
The second purchase was for a friend. The beer brewing equipment is of good quality and the logistics is fast!
