Wemac is a beer brewing equipment supplier, has always insisted on being the elite of beer equipment, creating craftsmanship and obtaining many high-tech patents. Beer equipment mainly includes crushing system, saccharification system, fermentation system, refrigeration system, cleaning system, control system and auxiliary system. Designed by German beer production technology, it is made of 304 stainless steel material. The pipelines and valves between the whole set of equipment are connected by sanitary quick-connect fittings, which is convenient and quick to disassemble, assemble, move and transform, bringing better experience to customers, focusing on beer equipment and developing together. Welcome to consult.
We design and manufacture a whole brewery system US for you.

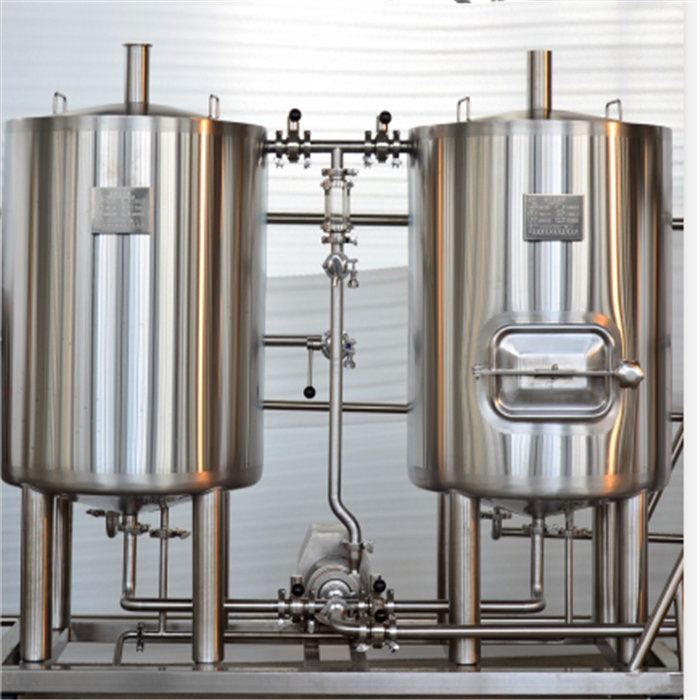

Mash system is one of the most important key parts of the whole brewing system
The Mash system is composed of boiling ketlle, lauter tank, whirlpool tank and process pipeline. The mash boiler is steam heating type; Electric heating type; Gas heating type . The tank body is made of "rock wool or polyurethane" with double-layer insulation. The heating area is enough to reach the boiling evaporation capacity of wort, which can effectively prevent the leakage of heat energy consumption. The inside of the tank is finished with international standard stainless steel304. The external is made of stainless steel 304, with simple and elegant appearance,Adding stirring system at the top of mash boiling pot can make mash evenly; A plow blade system is installed at the top of the filter tank to ensure uniform filtration of mash to avoid oxidation. Vortex precipitation system; Excess protein and impurities can be completely separated by tangential line and centrifugal force to achieve the purity of mature wort.

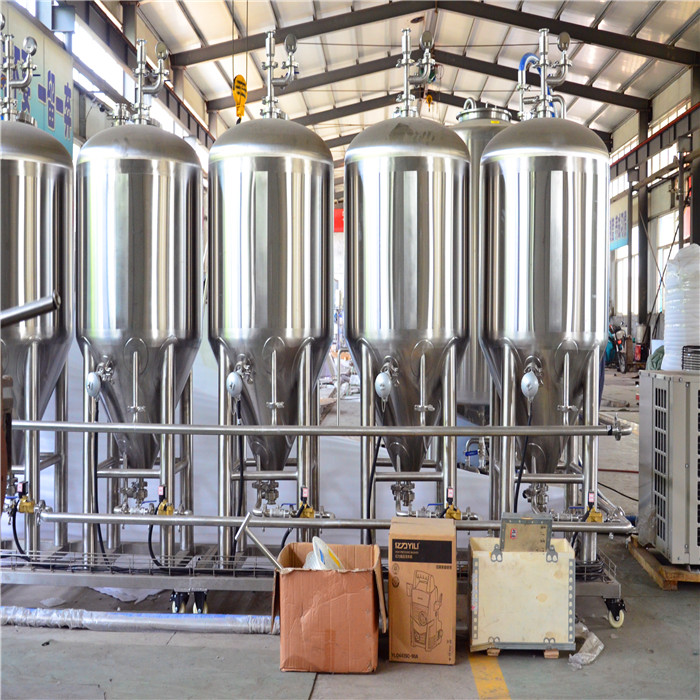

Beer fermentation tank parts of the whole brewing system
The inner tank is made of SUS304,thickness3mm,outsourcing is made of SUS304,thickness 2mm.Miller board jacket,material SUS304.Polyurethane foam insulation,thickness 80mm.The tank can withstand a pressure of 2.5bar.Compression-resistant design of cone under 60°.The uppre part is equipped with manhole and positive and negative pressure safety valve,single head.The tank body is equipped with temperature sensor(-10-150℃,4-20mA signal ),sampling valve,there is a sewage outlet at the bottom,and a wine valve at the bottom of the cone,dried hops,The inernal 2B surface of the equipment,pickling passivation treatment,external surface drawing treatment,beautiful appearance,pipeline layout,opening position,etc.

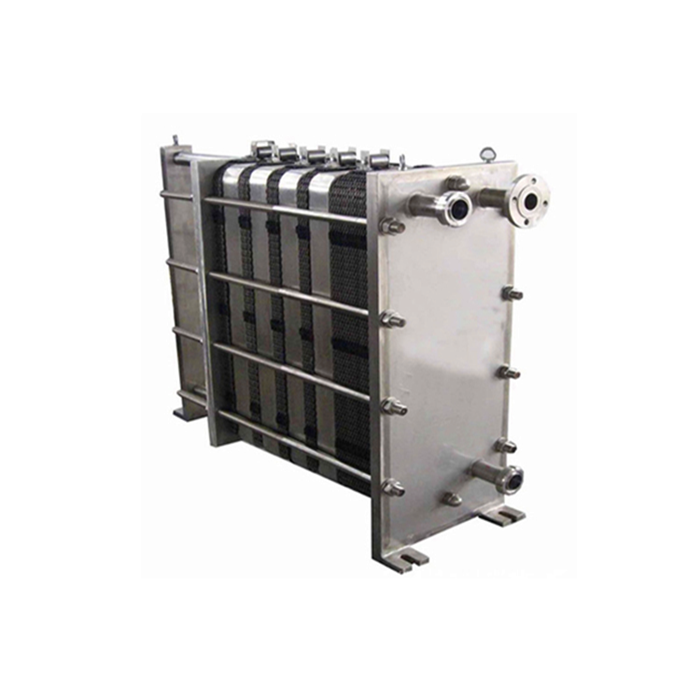

Beer brewing equipment also includes two-stage clod
Two-stage clod,suspended type.The design pressure is 1.0mpa,the design temperature is 150degerees,and the flow rate is 4T/H.The late material is 304 stainless steel,and the frame is 304 stainless steel.The heat exchange area and process combination meets:the wort drops from 98 degrees to 8-10 degrees,and the material is finished in 40minutes. The temperature of tap water is 25 degrees,the temperature of cooling water is -5℃.
If you want to ask anything just fill in the form below and send us.
The nearest brewery system suppliers-WEMAC,we supply beer brewing system with turn-key project.
