500L 5HL Beer brewing equipemnt suppliers near me-WEMAC
Processing | Fermenting Equipment |
Processing Types | Alcohol |
After-sales Service Provided | Field installation, commissioning and training |
Voltage | 3phase/380V/50Hz(customized) |
Dimension(L*W*H) | Capacity Request |
Weight | 3-4T |
Material | SUS304/SUS316L/ Copper |
Material thickness | 2-3mm |
Welding | TIG |
Control system | Pu/rock wool |
Energy source | Steam,electricity,direct fire |
Output capacity | 500L |
Area request | 40㎡ |
Building height requirement | 2.5M |
Power supply | Single Phase/ 220(110, 240…)v/50(60)H |
Cooling way | Chiller |
Material | SUS304 |
Control | PLC,Touch screen |
● WEMAC supply beer brewing system with turn-key project.
● WEMAC provide beer equipment with free consultation,3D design,free installation,training.
● Three years warranty for the main equipment and spare parts.
● WEMAC beer machine brew different flavors of beer and several flavors of beer at the same time.
● WEMAC beer machine has beautiful appearance, it is convenient for customer visiting.
Small and medium breweries, regional breweries,bars, hotels, beer houses, restaurants, clubs, farm breweries etc.
Our equipment is controlled by PLC+large screen touch screen. The terminal line is connected before leaving the factory. Customers can set the heating temperature and time according to different types of beer.The historical fermentation temperature and other parameters of the fermentation tank are traceable and can be viewed online.
We can add condensed steam collection and discharge devices for customers according to the place where the equipment is used. The secondary steam from the mashing and boiling process is discharged indoors to reduce environmental pollution caused by the direct emptying of the secondary steam. The waste heat of the indoor discharged secondary steam can also be recovered and converted into hot water for other uses to achieve savings The purpose of energy. Using the indoor exhaust device can also make the mashing space no steam or dripping water, and optimize the working environment.
The advantages of this, in addition to keeping the environment of the brewing space and reducing pollution, can also help you easily obtain the equipment's operating license certification. The operation safety and stability of the equipment can be improved through the condensate collection and emptying device.

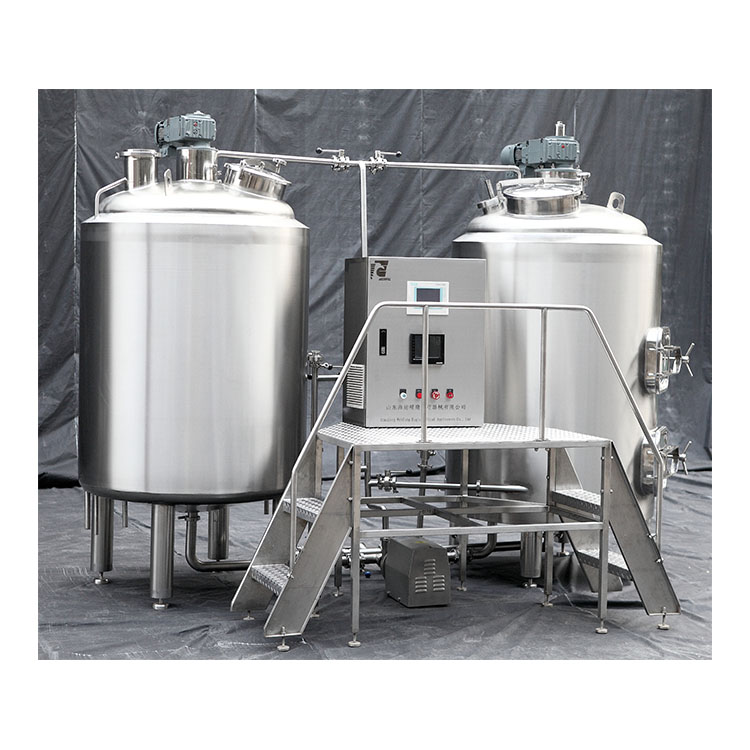

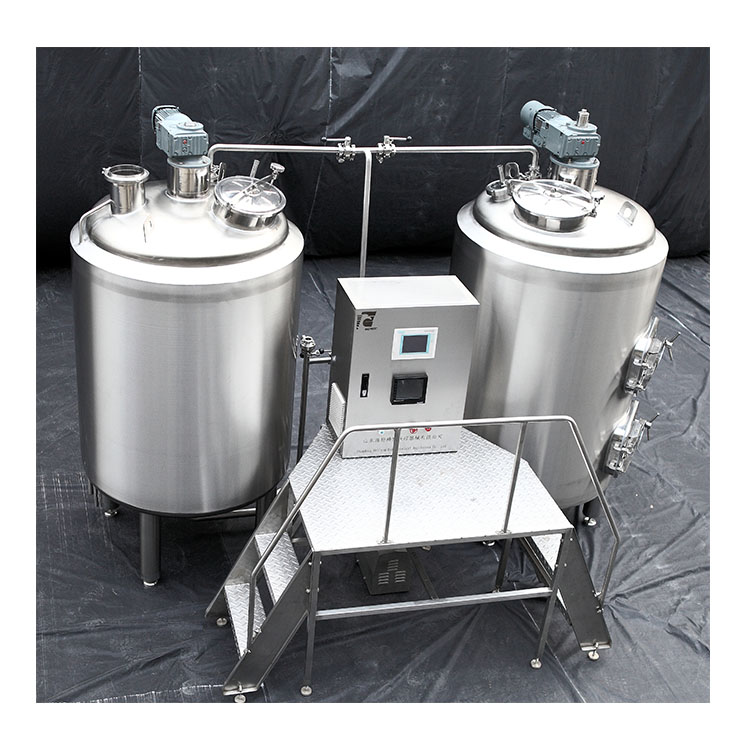

500L beer brewing system are different in different model,for example,when using the two vessls types,mash/kettle tun share one tank,the lauter tun and whirlpool tun are in same tank. we also have three vessels,the more tanks with more production,the brewing batches be reach to 3-4 batches per day.
Installing such a behemoth in bars, hotels, etc., will attract people’s attention. With proper craft beer culture promotion and irregular discounts, this set of 500L beer brewing system equipment is guaranteed to attract you More consumers.
The case of sufficient investment budget, you can consider increasing the scale of the saccharification system and the number of fermentation tanks, so that the production capacity of the equipment can be doubled.WEMAC makes it possible.
Composition | Specification | Technical parameter |
Malt Miller | 150kg/H | Double roller |
Carbon steel spray paint/Stainless steel | ||
Power:0.75Kw | ||
Mash/Kettle Tun | 500L | Material:SUS316L/SUS304/copper |
Interior Shell: 2B/mirror plate; TH=3mm | ||
Dimple, coil jacketed for steam heating,electric | ||
ABB stirring motor | ||
80mm rock wool for insulation | ||
Round glass manhole, dish head,with temperature | ||
Lauter/Whirlpool Tun | 500L | Material:SUS316L/ SUS304/copper |
Interior Shell: 2B/mirror plate; TH=3mm | ||
80mm rock wool for insulation | ||
Lauter tun with round glass manhole,side mounted grain outdoor with spent grain chute,sampling valve,sight glass | ||
Lauter plate: milling | ||
Racking device,positive turn cultivating spent grain,reverse discharging spent grain | ||
Tangential whirlpool inlet | ||
With cleaning tube, with standard washing ball,cleaning pipeline ISO32 | ||
1000L | Material:SUS316L, SUS304,copper | |
Interior Shell: 2B/mirror plate; TH=3mm | ||
80mm rock wool for insulation | ||
Top dish head, bottom conical head, round glass manhole | ||
Dimple, coil jacketed for steam heating,electric heating tube, combustion chamber | ||
With a cleaning tube, with a standard wash ball, cleaning pipeline ISO32, overflow port,temperature sensor | ||
Heat exchanger | SUS304,Two stage cooling | |
Wort oxygenator | SUS304, venturi principle with sight glass | |
Yeast Adding Tank | 10L | With valve, sight glass, pipe fittings, hand-held |
Wort pump | China top brand, Sanitary SUS304 | |
Hot liquid pump | China top brand, Sanitary SUS304 | |
Pipe and fittings | As design | Completely SUS304,including platform and steps |
Heating method | Steam heating | |

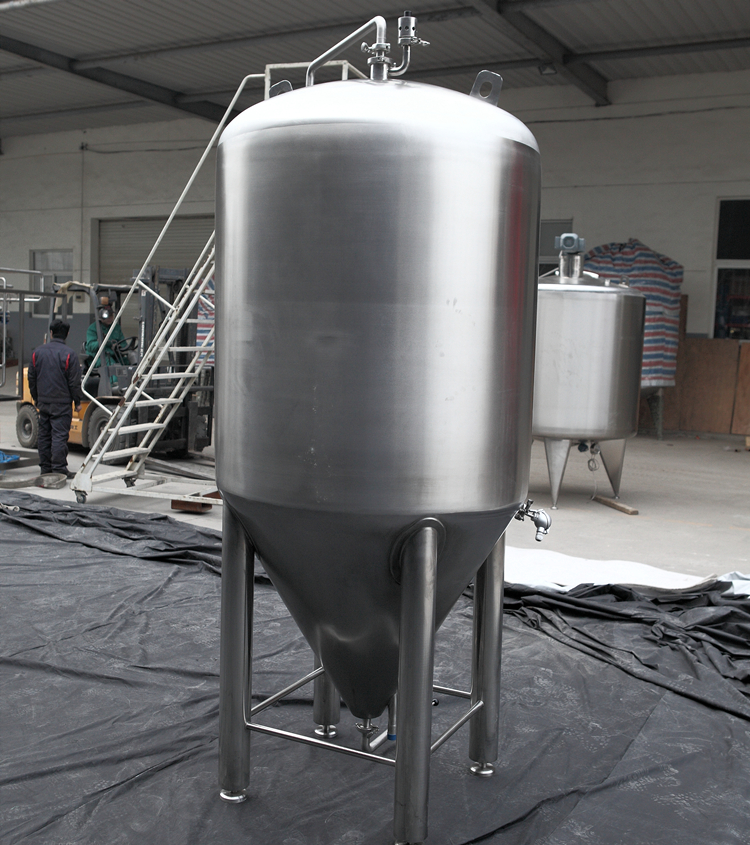

Fermenter | 500L | Material:SUS316L /SUS304 |
Interior Shell: 2B/mirror plate; TH=3mm | ||
80 mm PU for insulation | ||
Dish head,cylinder,60 degree cone bottom(adjustable) | ||
Top or side manhole, | ||
With electromagnetic valve or mechanical pressure regulating valve,sample valve,temperature sensor, adjustable leg,Rotating | ||
Option:Dry hop mouth,CO2 filling device With titanium | ||
Candle diatomaceous earth filtration | 500kg/hr | Power:1Kw |
Filter Area: 0.8M2 | ||
SUS304 | ||
Bright beer tank | 500L | Material:SUS316L or SUS304 |
Interior Shell: 2B/mirror plate; TH=3mm | ||
80 mm PU for insulation | ||
Dish head /bottom,cylinder | ||
Top or side manway | ||
With electromagnetic valve or mechanical pressure | ||
Chiller | 5Px1PCS | Cooling Capacity: 6364Kcal |
Installed Power:4.86kw | ||
Refrigerant: R22 | ||
Noise:70-80db | ||
Coperland compressor | ||
Ice Water Tank | 1500L | Insulated conical top and sloped bottom |
Ice water pump | 3M3 | Sanitary SUS304, VFD control |
Pipeline and fittings | As designed | SUS304 |
Mashing and fermentation process Controlling | Floor type | Panel instrument digital |
Control system | PLC control with touch screen for special | |
CIP system | Acid Tank-50L | SUS304 |
Alkali Tank-50L | SUS304 | |
CIP Pump-3M3 | Flow:3T Lift:24 |
