WEMAC Craft Beer Filler And Capper Machine fillling &capping system from China

  • * Processing : Fermenting Equipment, Beer Brewing
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
Main functions and features:
1. The whole process of programmable controller is automatically controlled, and the parameters can be adjusted.
2. Filling and capping can be done in this machine at one time
3. Equipped with CO2 replacement and vacuum pump can be added.
4. Adopt equal pressure filling method, unique pressure holding system, stable and reliable, low beer loss.
5. The regulator can automatically replenish beer.
6. It can be used as a manual glass bottle or stainless steel bottle filling and capping machine (user can choose)

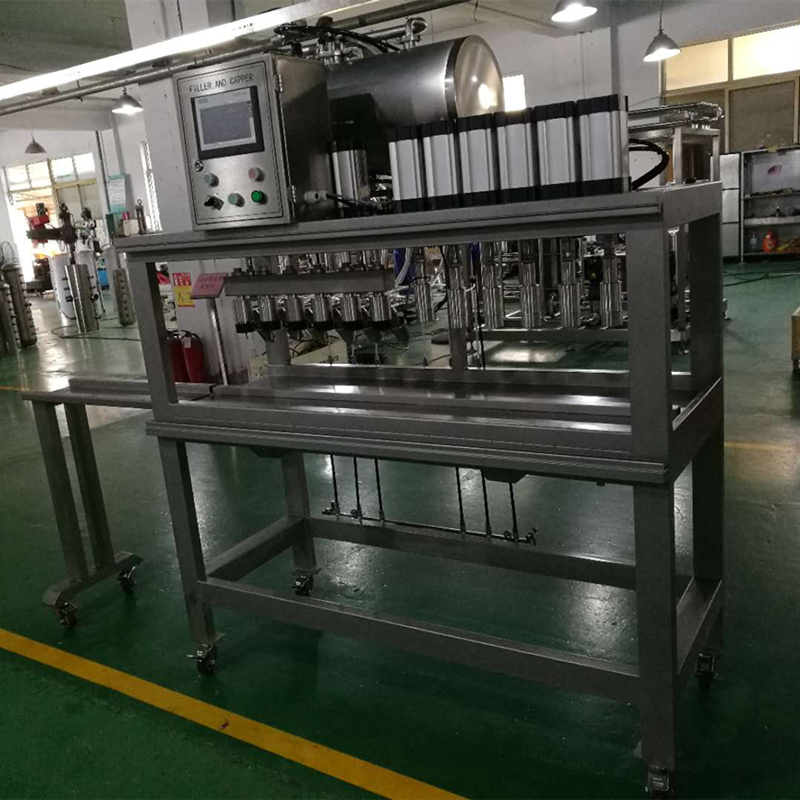

beer filler and Capper machine.png

The main technical parameters:

Dimensions

2950mm×800mmm×2150mm

Net Weight

200Kg

Production capacity

300-400 Bottles/H

Voltage

220V 50Hz( customized)

Work station

Customized

Scope of application

Glass bottle


Main functions and features:

1. The whole process of the programmable controller is automatically controlled, and the parameters can be adjusted through the touch screen.

2. Filling and capping can be done in this machine at one time.

3. With CO2 pressure backup and replacement function.

4. Adopt equal pressure filling method,unique pressure holding system,stable and reliable,and minimum beer loss.

5. The regulator tank automatically replenishes beer.


Working process:

Compaction-CO2 replacement-CO2 replacement-equal pressure-filling-voltage stabilization-pressure relief-stop-move to the capping station-capping-take out the bottle.
