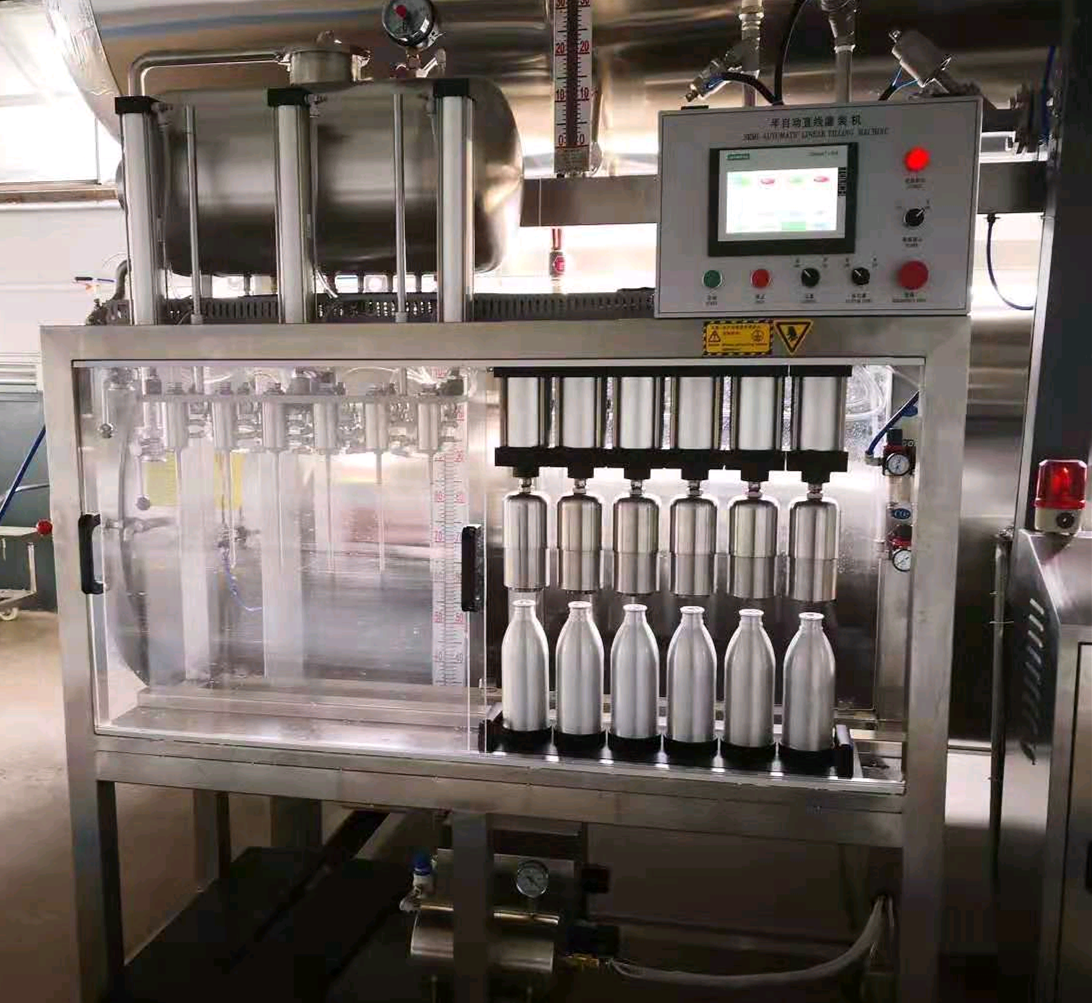

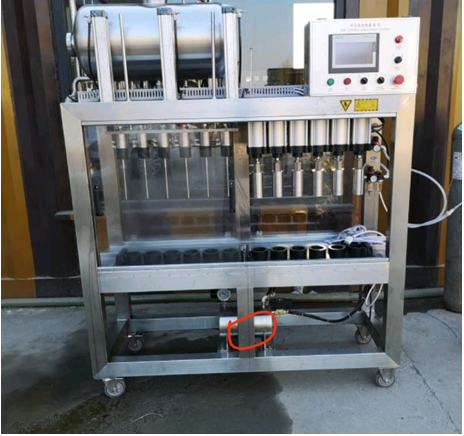

our beer bottle filling and capping machine is made of high-quality stainless steel and is durable, safe and reliable in use, reasonable in design, easy and simple to operate, and automatically controlled by the programmable system.
The filling process is automatically completed, and it is suitable for a variety of bottle types. This machine is mainly composed of 1-frame, 2-electric control system, 3-tray, 4-filling valve, 5-storage tank, 6-capping assembly.
Working table size 2200mmx 270mm
Working table height 850mm
Machine size 2200mm x800mm x2200mm
Maximum stroke of cylinder piston 350mm
Net weight 350kg
Production capacity 360-400 bottles/hour
Filling method: Upright filling
Adapt to bottle type: Bottle diameter: ≤Φ100
Bottle height: ≤320mm
Wine source pressure 0.2 ---- 0.3Mpa
Air source pressure 0.6 ---- 0.8Mpa
CO2 pressure 0.2 ---- 0.3Mpa
Cylinder pressure 0.5---- 0.6Mpa
Power supply voltage Single phase 220V 50Hz (can be customized according to customer requirements)
1. The programmable controller is automatically controlled during the whole process, and the parameters can be adjusted through the touch screen.
2. Filling and capping can be done at one time in this machine
3. With CO2 backup pressure and replacement function
4. Adopt equal pressure filling method, unique pressure maintaining system, stable and reliable, and minimum wine loss.
5. Stable tank automatically fills the wine.
Compaction-carbon dioxide replacement-carbon dioxide replacement-equal pressure-filling-pressure stabilization-pressure relief-stop-move to the capping station-capping-take the bottle
