Keg beer filling machine WEMAC G015

  • * Processing : Fermenting Equipment, Beer Brewing
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Size : To Be Determined
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
All electrics including wiring have UL on all parts and wires
When running washer, can all setting be adjusted.
Be able to wash one keg and fill another keg at same time.
Water heaters and control system working and set with automated program
All set up and installation information in manual properly in English

keg-filler-and-washer (12).jpg

Main function and feature

1.Automatic control by PLC, all parameters can be adjusted through touch screen.

2.Cleaning and filling process can be finished in this machine at one time.

3.With unique pressure maintaining system,performance stable and reliable, beer loss minimum.

4.With CIP automatic cleaning system

5.Table board is lifting, and convenient to take kegs, labor-saving and time-saving.

keg-filler-and-washer (6).jpg

Working process

Washing Station: Put the keg ---Drain residue--water wash--caustic wash--hot water wash--hot water wash --steam sterilization -- Co ₂ pressurization -- Take the keg

Filling station: Fix the keg--filling--stop--take the keg

keg-filler-and-washer (2).jpg

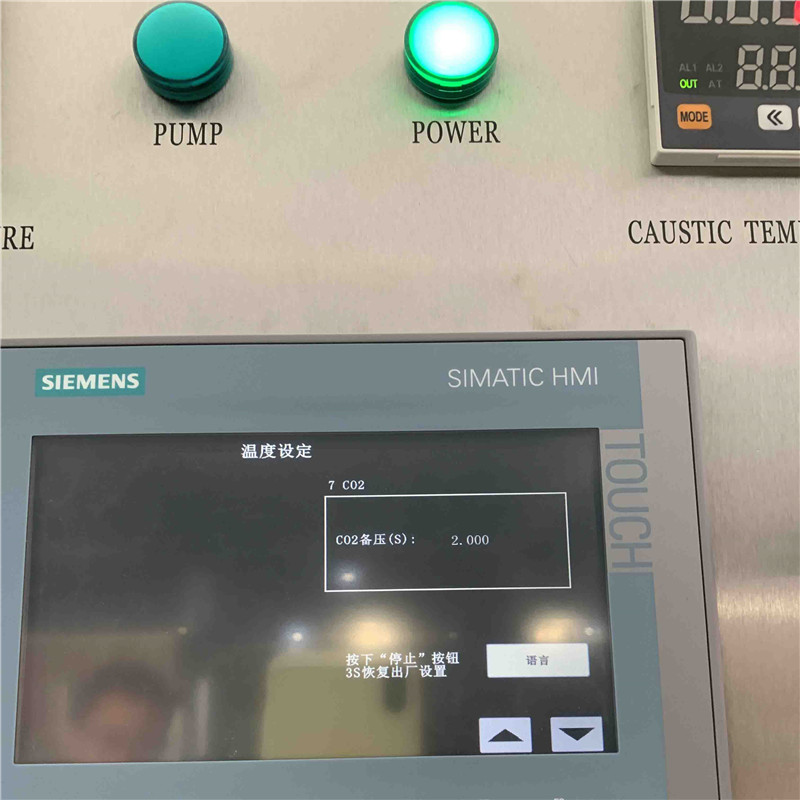

Control system

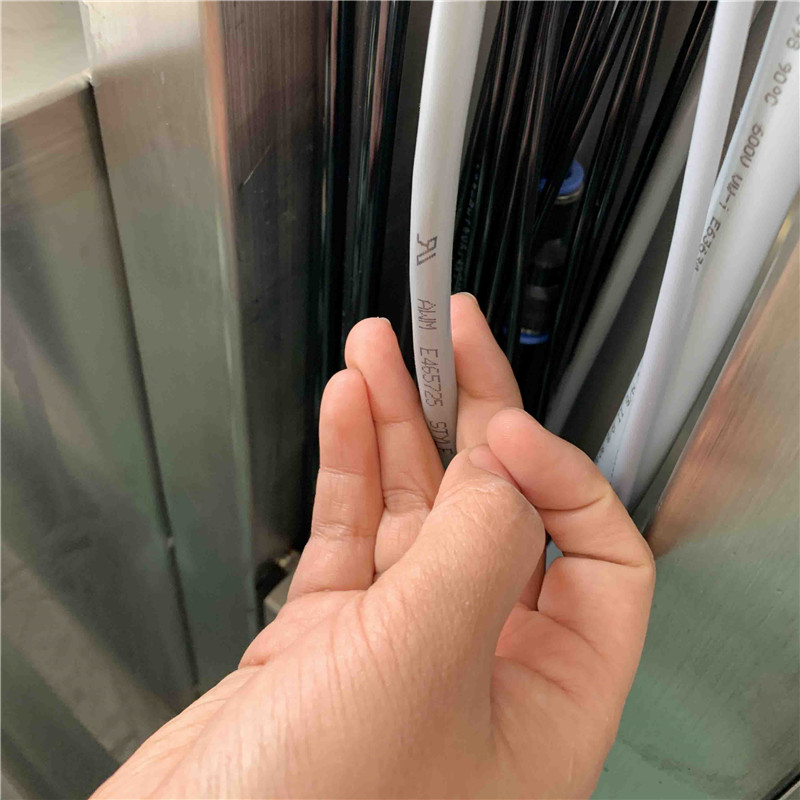

Touch screen is SIEMENS all electrics including wiring have UL on all parts and wires.

Adjustable cycle times for every cycle and then be able to set them so you push 1 button and all cycles go through the allotted time and finish.  Make sure keg has 100% co2 before going to filling stage.

All cleaning cycles fully automated

keg-filler-and-washer (1).jpg

Main Technical Parameters

Equipment Outer Dimensions:1200*1600*2000mm

Net Weight380KG

Power Steam Heating: 3KW  Electric Heating: 18KW

Production Capacity30-40 kegs/H

Applicable Kegs5L-60L

 Tank Heating WayElectric Heating or Steam Heating

Table Boardlifting

Power Supply Voltage:110V or 380V
