1000l beer brewing equipment Chinese manufacturer
The 1000 litre brewery is for Indian buyers.
We received his inquiry from the Internet. He said he wanted to open a small brewery but didn't have any equipment. He wants us to provide a complete set of brewing equipment. According to his estimation of beer production and the situation of the working site, our beer experts suggest using 1000L brewing equipment. Then our team of engineers designed the process flow chart and provided the detailed configuration and technical data of all required equipment. Indian buyers are happy with the whole plan and are asking for some minor changes. Thus, the whole equipment scheme is determined. We have arranged the production and delivery of 1000L beer brewing system. After receiving the equipment and installing it, he tested the production of beer for several weeks. The beer system runs well and the beer produced tastes good. He was happy and told us that he was so happy and lucky. He thanked us for our help in design, manufacturing and delivery. He also told us that his new brewery was in preparation and he wanted to buy another 1000 liters of brewing equipment from us. We are also happy that we really help our customers achieve their goals and develop better.
Technical parameters of mash kettle of 1000L beer brewing equipment:
1. Liner material sus304,3mm, outer liner 2mm; dimension: D = 1460mm, H = 2570mm.
2. Electric heating 60kW, maximum. The pressure is 3 bar, and the temperature rise can reach 1-1.5 ℃ / min. Water tank and bottom control respectively
3. Thermal insulation rock wool solid thickness 80mm
4. Mixing motor 20R / min, mixing equipment material SS304, mixing shaft with scale, with bushing at the bottom. The top of the water tank is equipped with a sealing device to prevent steam leakage from the shaft.
5. In 159, the condensate collection device and drain pipe were embedded in the thermal insulation layer.
6. Temperature sensor - 10-150 ℃, 4-20mA signal, l = 200mm, 50.5 chuck connector, Furuisi brand.
7. The inner surface of tank 2B shall be treated with acid pickling and passivation. The weld shall be treated finely without concave convex deformation. The outer surface shall be coated with beautiful appearance. The pipeline configuration and port position shall meet the operation and installation requirements. 8. Round glass manhole, disc head.
9. Equipped with cleaning pipe, standard cleaning ball and cleaning pipe din32.

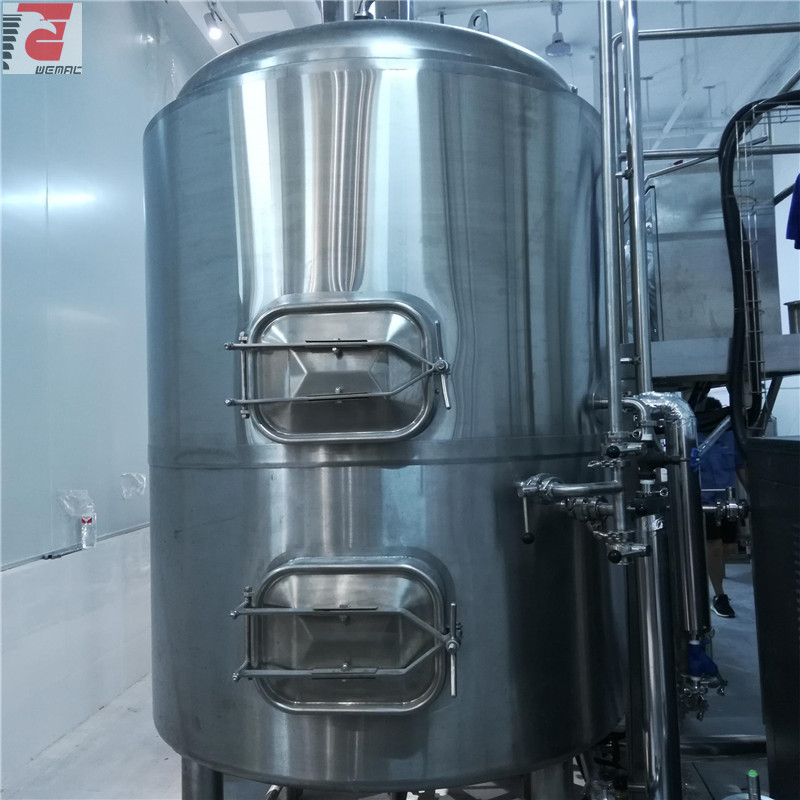

Technical data of Lauter and whirlpool of 1000L brewing equipment:
1. The effective volume of laught is 1100L, and that of whirlpool is 1300l.
2. Lining material sus304,3mm, outer lining 2mm, dimension: D = 1460mm, H = 2570mm.
3. The thickness of insulation rock wool of Lauder is 80mm.
4.3 one top feed pipe, one return pipe and two grain washing pipes. Built in material washing device, adjustable double umbrella plate type material washing, material washing pipe is Laut type material washing, equipped with standard material washing ball din32.
5. Laute is equipped with top round manhole, side discharge port (with sliding plate), and Laute discharge pipe is equipped with mirror and sanitary sampling valve. The mirror is installed horizontally, which can be used for natural filtration and suction filtration. Natural filtration and particle washing can be carried out simultaneously.
6. Filter plate: milling. SUS304 material, opening rate is 8%, the surface is smooth and clean, it can be partially opened, without deformation during use, the distance between the pull plate and the bottom of the box is 2-5cm, the bottom of the box is equipped with a cleaning device, and the position above 3 is correct.
7. Grain raking device: Material: SS304, firmly installed, stable rotation, frequency conversion control, raking angle ≤ 15 °, internal raking frame fixed on the tank body, no bottom, mixing motor and gear are covered with SS304 protection shell. Motor and gear speed 19r / min, national famous brand.
8. Whirlpool type anti clockwise tangential material feed, the feed port is located at 1 / 3 of the liquid level, equipped with liquid level pipe and breathing hole, and the tank side is equipped with quick manhole. The shape of the bottom and the flow of materials can achieve the effect of eddy current, improve the convenience of operation, and reduce the liquid loss of materials.

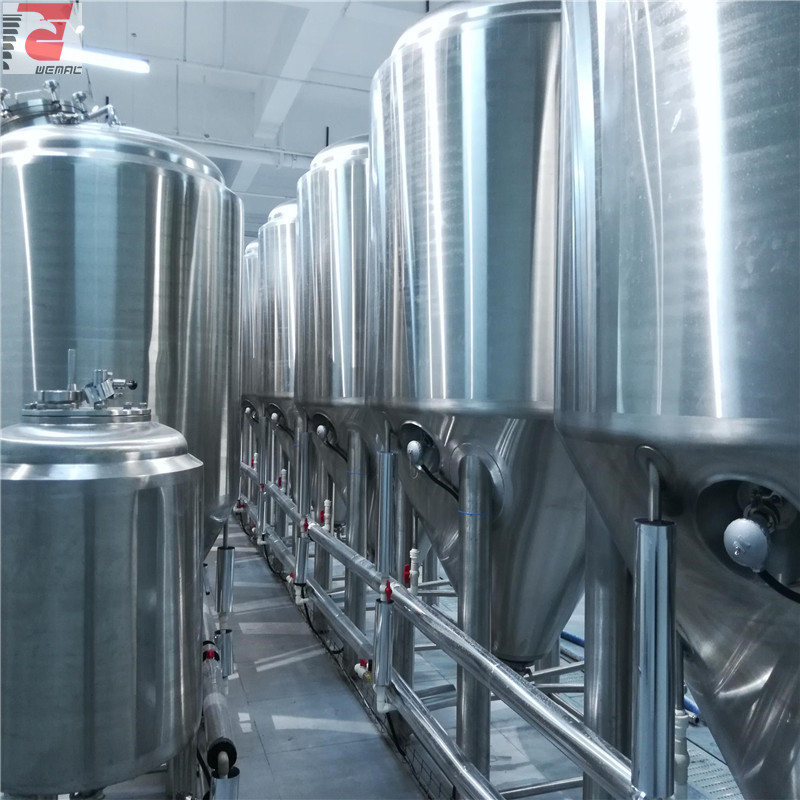

Technical parameters of fermentation tank of 1000L beer equipment:
1. Material of inner tank sus304,3mm, material of outer tank sus304,2mm, dimension: D = 1460mm, H = 3550mm.
2. Dimple plate sheath, material SUS304, 1.5mm. The temperature regulating area of the tank body accounts for more than 40% of the total temperature regulating area of the tank body. The adjusting area of cone bottom temperature accounts for more than 50% of the total adjusting area.
3. polyurethane foam insulation material, thickness 80mm.
4. The maximum tank pressure is 2.5bar.
5. 60 ° tapered bottom compression design.
6. The empty volume is 20%, and the tank top is on the same line with the washing ball.
7. Equipped with ball washer, installed near the oil cylinder and head weld. Clean pipe Ø 32.
8. The roughness in the groove is ≤ 0.4um, and the surface of welding wire is not deformed, scratched or 2B.

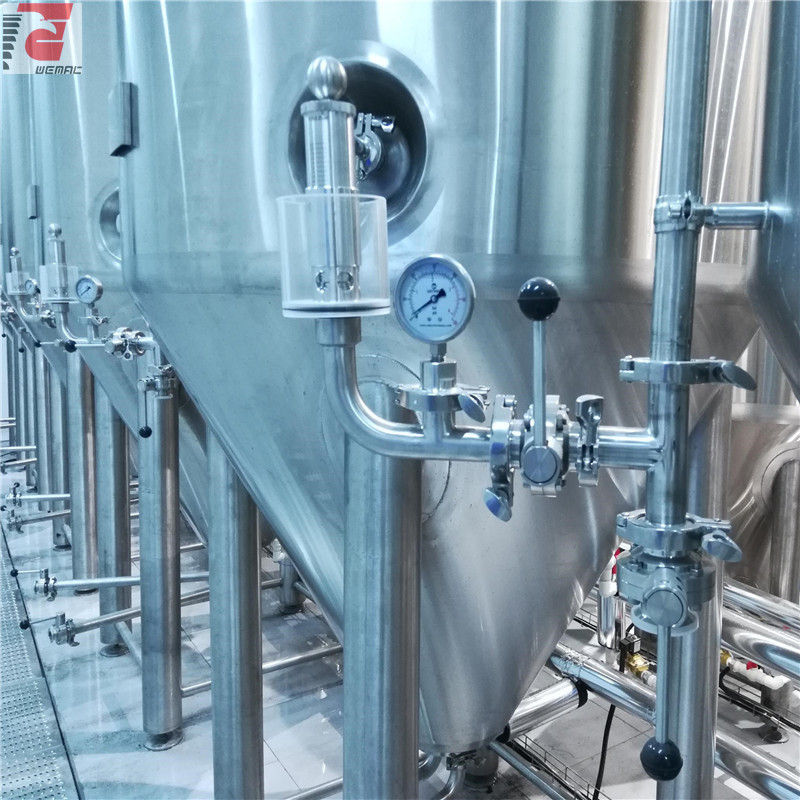

9. The manhole shall be installed at the top, with positive and negative pressure safety valves and single head.
10. The tank is equipped with temperature sensor (- 10-150 ℃, 4-20mA signal, l = 200 mm, 50.5 chuck United Furuisi brand), sampling valve, bottom waste unloading port, and beer outlet valve cone bottom, hops feeding port φ 100 for drying.
11. The waste is at the bottom of discharge pipe j38.
12. Inner surface of tank 2B, acid pickling and passivation treatment, external surface painting treatment, beautiful appearance, pipeline layout and port location meet the operation and installation requirements.
