We are a one of the largest Brewery equipment manufacturers and factory since 1958 from china ,professional craft brewing,home brewing ,microbrewery and commercial brewing equipment equipment solutions from China.we design and install Brewery equipment worldwide. export@wemac.cn

5 vessels beer brewing brewery equipment for sale ZXF

  • * Processing : Fermenting Equipment, Beer Brewing
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
5 vessels craft beer brewing brewery equipment,it is the combination of rice tun + mash tun + lauter tun + kettle tun + whirlpool tun,the capacity from 300L to 5000L.Professional one-stop service, turnkey project supplier.

5 vessels beer brewing brewery equipment for sale


5 vessels beer brewing brewery equipment are in discount now,rice tun+mash tun+lauter tun+kettle tun+whirlpool tun combination.


Our company provides a complete set of 5 vessels beer brewing brewery equipment design, production, installation and commissioning services, and customize and design complete equipment solutions according to customers' production and scale.


These pictures shows the brewery in Hunan,China,the brewery is still in construction,when the processing is over the production of beer in the brewery will be 30K tons per year.

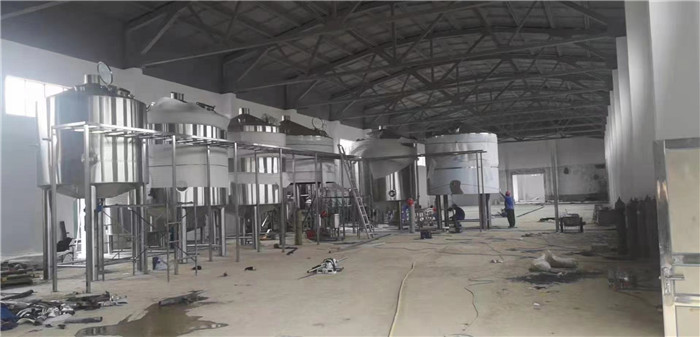

brewing kettle-beer brewhouse-beer brewery-craft beer plant.jpg

The function of the rice tun is to mix rice flour and part of the malt powder with water to boil, and to heat up the mash to make the starch liquefy and gelatinize.

The body of the gelatinized pot is cylindrical, the bottom of the pot is a spherical or ellipsoidal interlayer, and the top cover is butterfly-shaped. There is a stirrer in the country, a heating device at the bottom of the pot, and an insulation layer on the outside of the pot. The crushed rice noodles, malt powder and hot water are mixed by the lower powder cylinder and the water inlet pipe and then sent in. With the aid of the propeller stirrer, the concentration and temperature of the viscous mash are uniform, so that the mash is more The heavy particles are suspended without sinking to the wall of the pot to form a "crust" to prevent local overheating of the mash near the heat transfer surface.

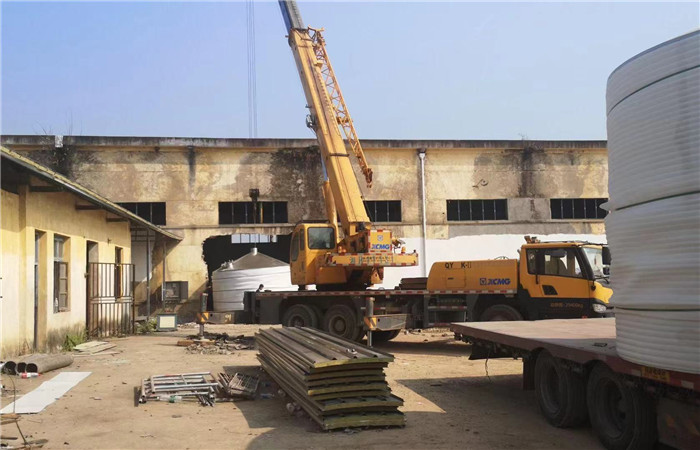

conical jacketed tank-beer fermenter-fermentation tank.jpg

The material of the saccharification pot is made of stainless steel plate to ensure the quality of beer. The inner bottom of the heating jacket should be made of copper plate, because the copper plate has a good heat transfer effect, and the outer bottom of the jacket can be made of ordinary carbon steel plate. The weld on the inner surface of the lid, the body and the bottom of the pot should be smoothed and polished, and treated with corrosion-resistant acid passivation. The exposed surface is polished, and there should be no bruises or scratches.

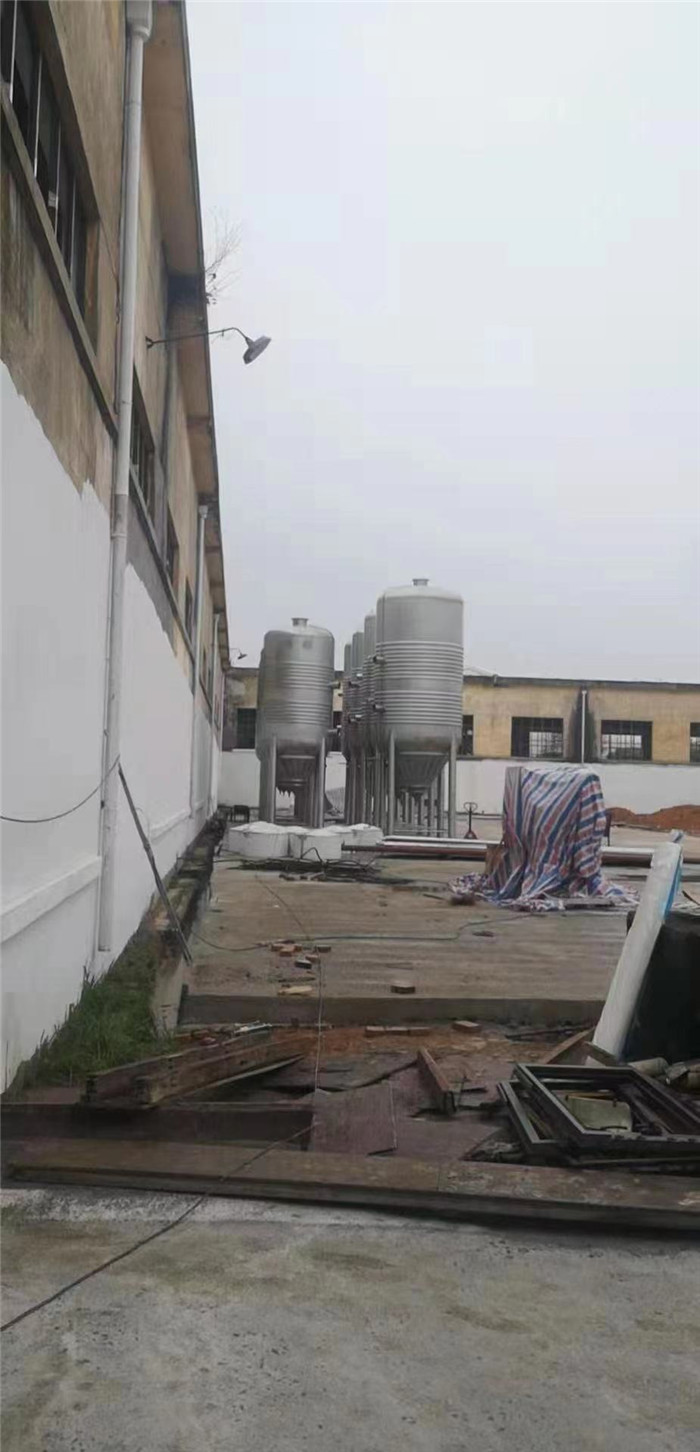

brewing equipment-brewhouse-30K Tons production per year.jpg

The top of the tun cover is equipped with an exhaust pipe, and the root of the exhaust pipe has a corrugated groove, which collects the condensed water left along the wall of the exhaust pipe and drains it out of the tun through the condensing pipe. The root is also equipped with an exhaust hole door. Adjust it according to needs. Degree of opening and closing. There is a hood on the top to prevent the entry of birds and the ingress of wind and rain, and a down-wind tube is installed on the lid of the pot. In order to prevent the dust from rising, the powder lowering cylinder device has hot and cold water entering at the same time when the powder is loaded. The pot cover is also equipped with a pressure thermometer and a lighting lamp, and is equipped with a mash outlet.

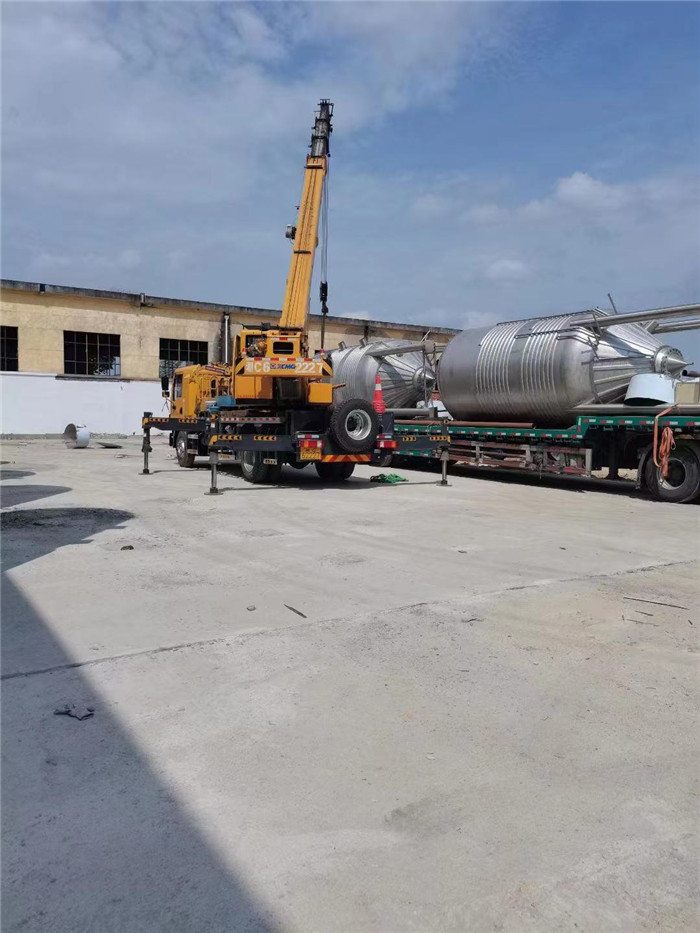

fermenter-fermentor-CCT-FV-jacketed tank.jpg

The cone-shaped Miller plate jacketed fermentation tank is made of double-layer stainless steel plates, with high pressure resistance, polyurethane foam insulation and refrigeration, cold water pipes are pre-buried in the jacket, cold water circulation cooling, and fermentation temperature is automatically controlled.


5 vessels beer brewing brewery equipment are in sale now,if you are willing to open a brewery or brewery expansion,we can help.
