WEMAC high quality 3000L (30HL) Microbrewery beer brewing equipment

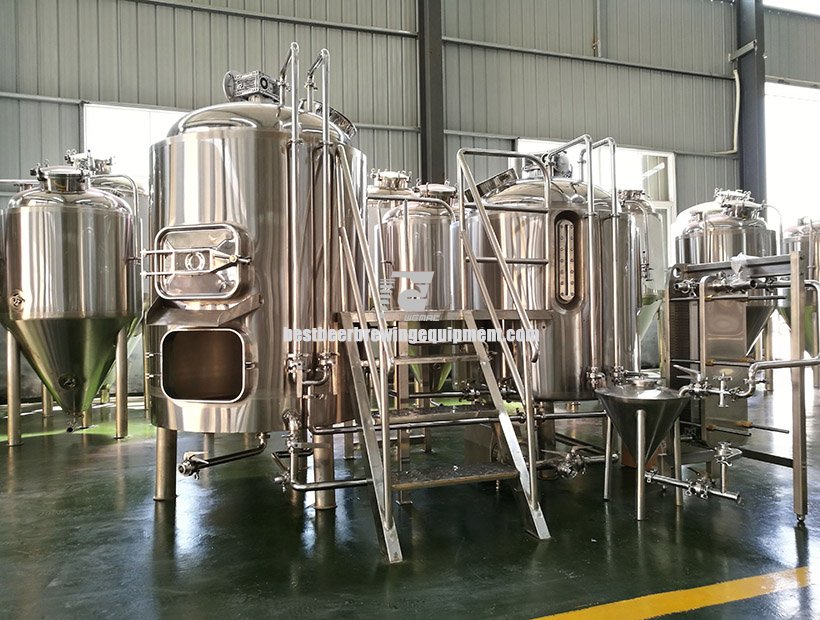

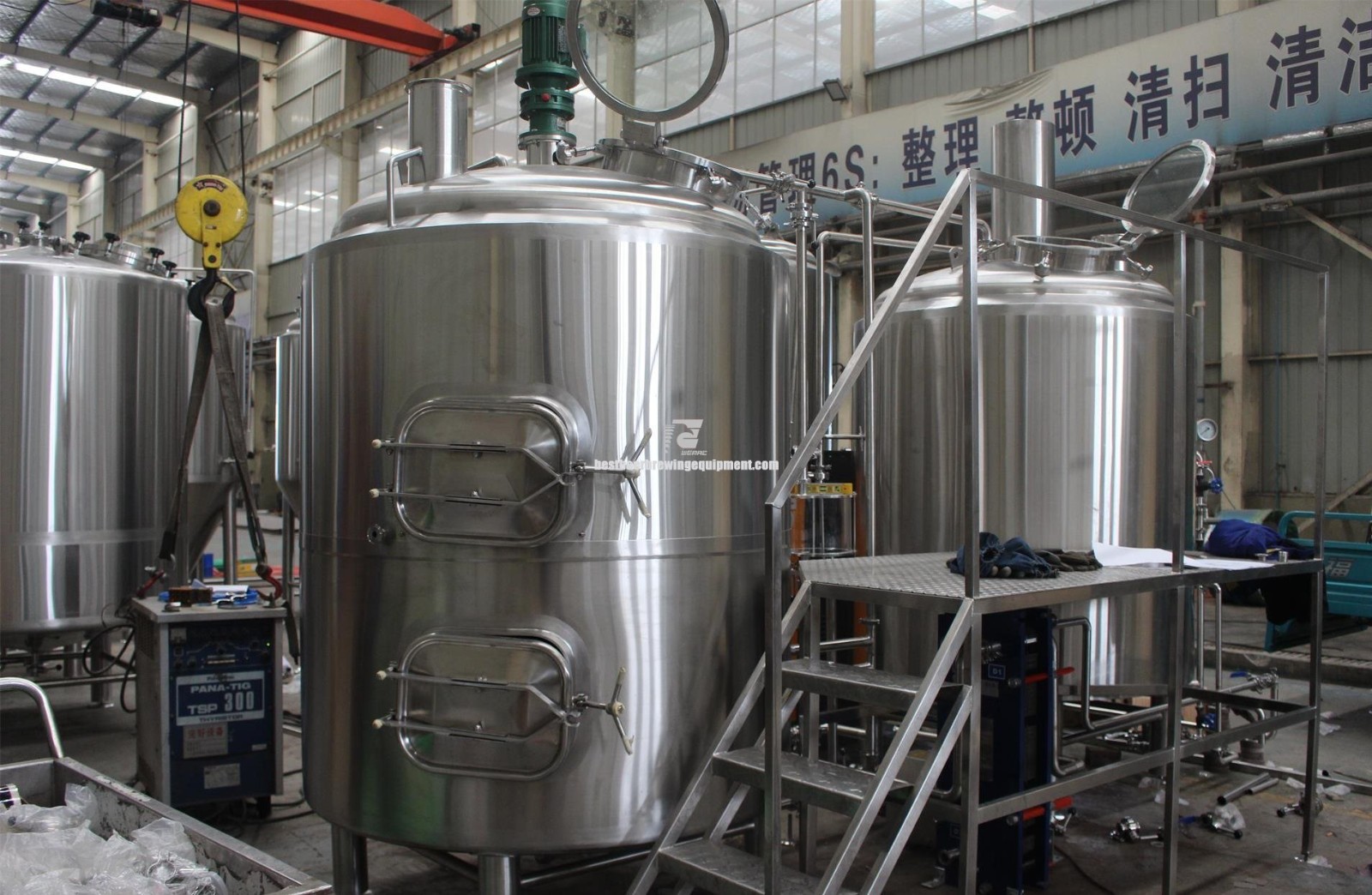

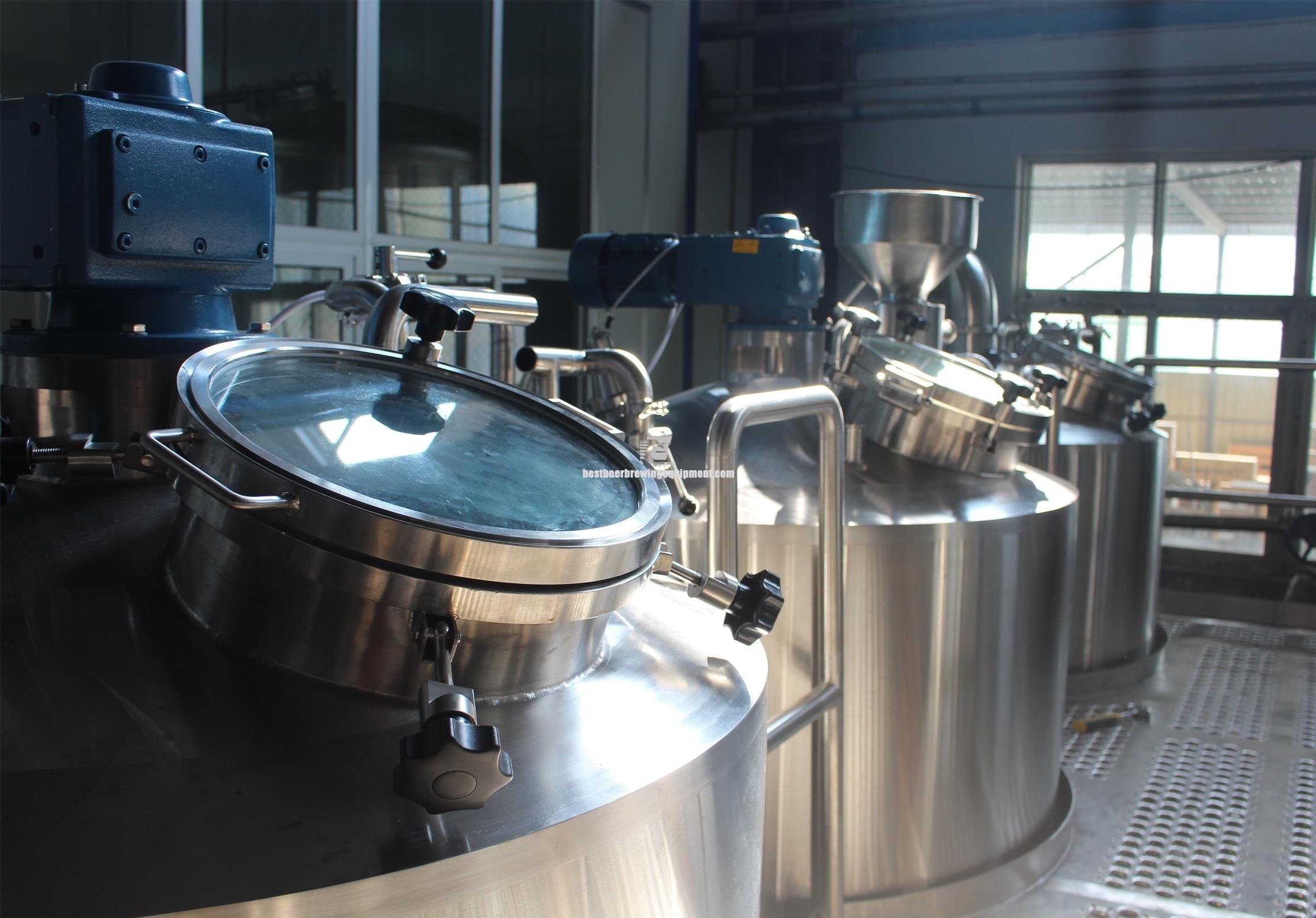

  Mash system

Material:SUS316L, SUS304,copper;
  Mash & kettle& lauter & whirlpool tun are any   combination;dimple jacket or dribbling for heat exchanger, rock wool   insulation,TH=80-100mm,upper stirring or bottom stirring,lauter   plate:milling,side or bottom vinasse discharging；
  Hot liquid tank for option;
  Plate heat exchanger: cooling form,capacity and piping meet   requirements;
  Oxygenation system:oxygenation form, capacity and interface   form meet requirement;
  Yeast adding tank depends on the customer’s requirement;
  Stainless steel working platform;
  Accessories:wort pump, wort tester, hop adding device,hop filter device,   saccharimeter,worst rake,CIP system etc

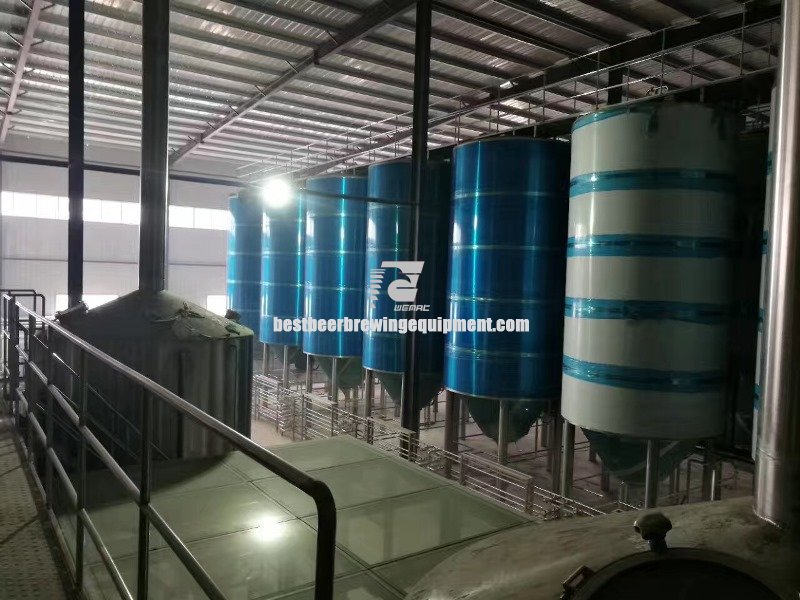

  Fermentation system

3000L(35HL) / 6000L(70HL) fermentation tank
  3000L(35HL) / 6000L(70HL) beer brite tank
  Amount depends on the customer's request
  Dimple jacket or dribbling cooling
  Option:dry hop mouth,CO2 filling device with titanium rod distributor,level   gauge


  Yeast breeding system

Two -stage
  Three - stage

CIP

Mobile or Fixed CIP

Energy system

Heating system &cooling system   design capacity meet the requirement


  Electric system

Stainless steel electric cabinet with   imported brand PLC and touch screen or spraying plastics electric   cabinet with push-button

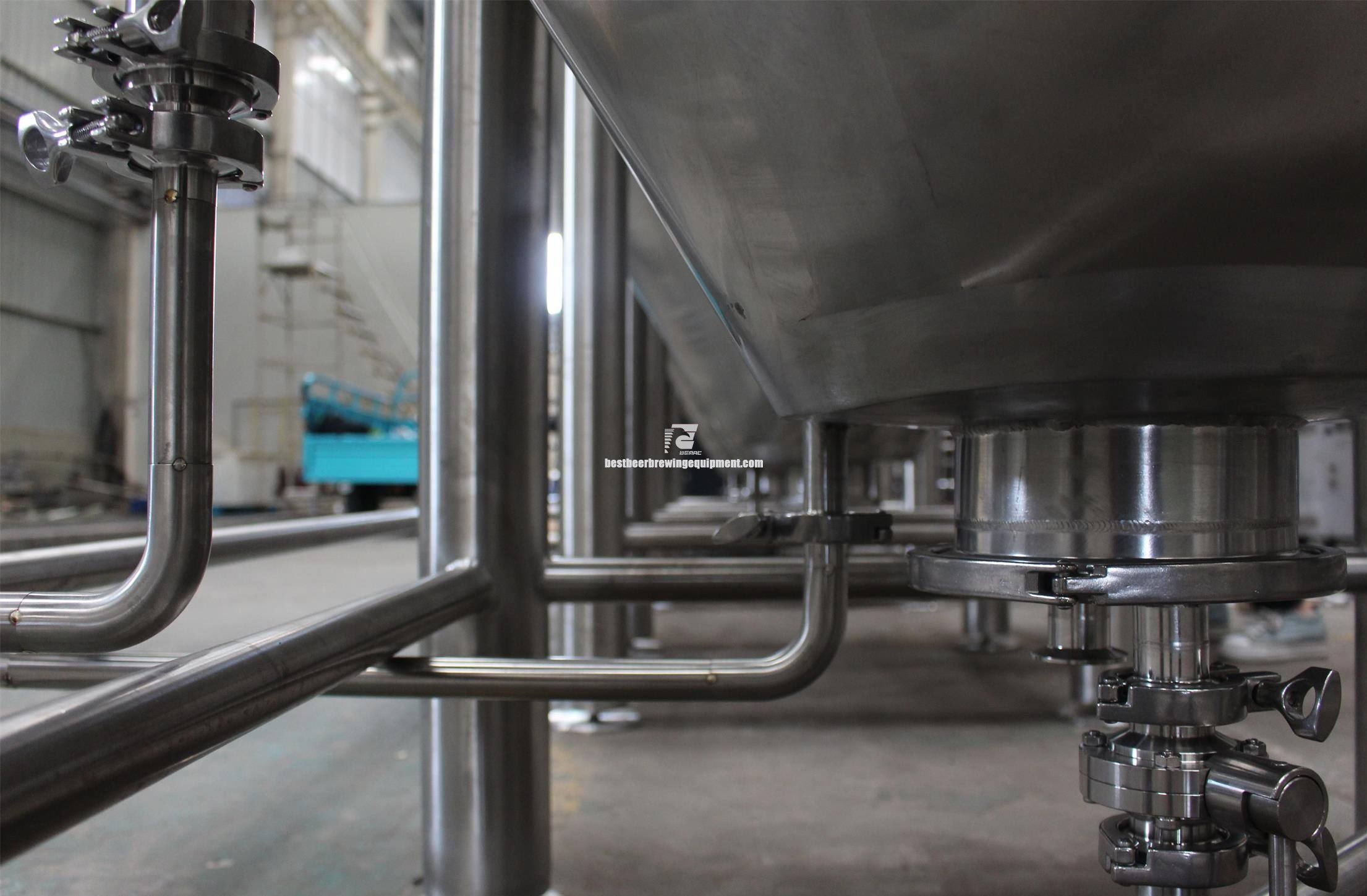

Pipeline fittings

Including mash line, alcohol water line   and other system line,valves
