Best 100L Conical beer fermenter for mini brewery
We are a professional manufacturer of beer brewing systems. We have rich experience in the production of pressure vessels such as beer mash and fermentation. Founded in 1958, we have always maintained our top three positions in China. We are looking for equipment agents in the Asia-Pacific region. If you are interested in the wholesale and retail of equipment or the construction of beer workshops, we hope to establish business cooperation with you. We have partners in the Asia-Pacific region, who can solve equipment installation and commissioning and after-sales service problems for local customers.
The following is part of the information of our 100L jacketed fermentation tank for your reference:
The inner tank is made of SUS304, thickness 3mm; the outer material is SUS304, thickness 2mm. Dimensions: D=650, H=1500;
Miller board cooling, material SUS304, thickness 1.5mm, the cooling area of the cylinder is about 40% of the cylinder surface area, and the cooling area of the cone is about 50% of the surface of the cone.

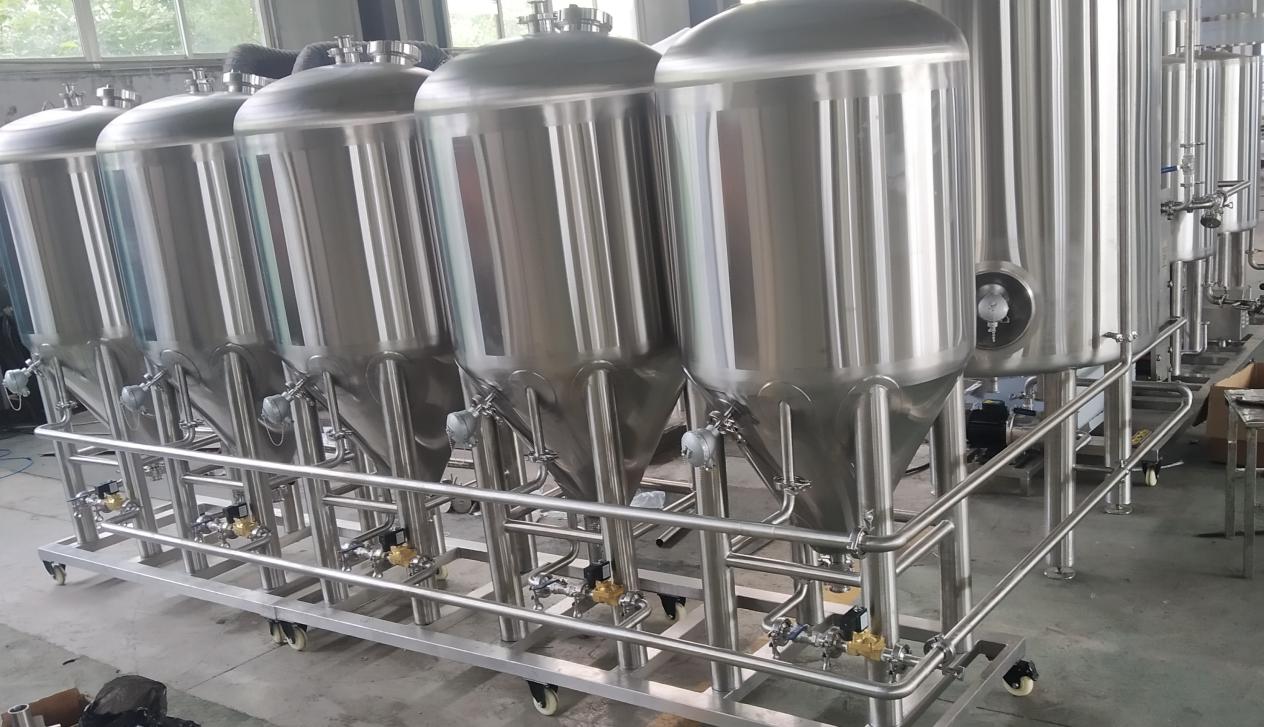

As can be seen from the figure, the cold water pipe on the side is connected with the jacket. Miller board cooling, the cooling effect is 60% of the cooling area,The bottoms of several fermentation tanks are connected by stainless steel pipes, which are firm and reliable. The cold water of the ice water tank is transported to the fermentation tank by a general pipeline. In the jacket, there is a temperature sensor at the bottom, which can automatically control the temperature in the tank. The sewage outlet pipe at the bottom is collected and connected to the sewer. The length and specific location of the pipe are designed and installed according to the specific size of the room.About the equipment We have taken into account the use of the problem to ensure customer satisfaction.
