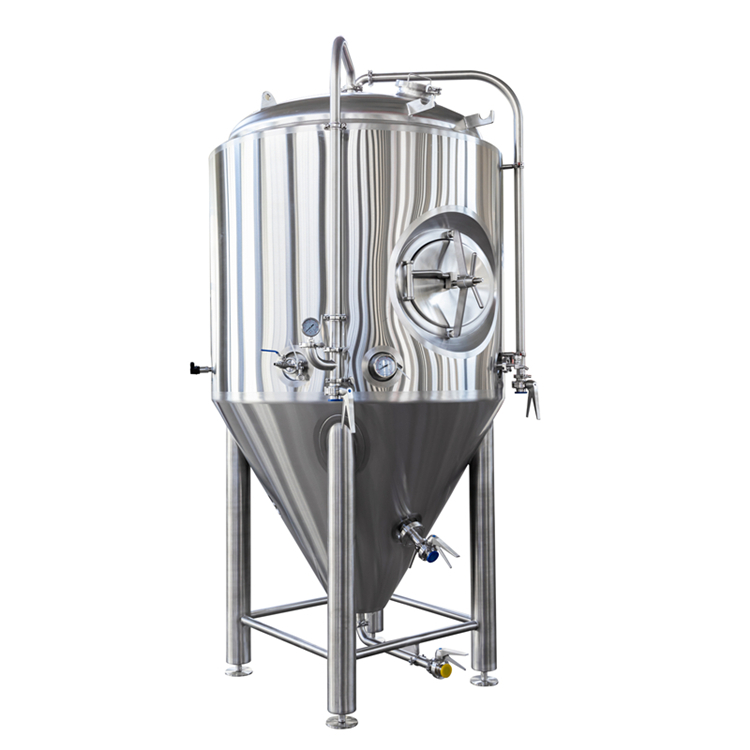

Technical description of Conical cooling fermenter:
Dimension:Φ1060mmx2550mm
Material:SUS316L or SUS304
Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm
Dish head,cylinder,60 degree cone bottom(adjustable);
Dimple jacket or dribbling cooling,PU insulation,TH=80-100mm
Withstand voltage of tank is 4bar;
Tank equip with lifting leg,Electromagnetic valve or mechanical pressure regulating valve,manhole(top or side),sam
ple valve,temperature sensor, adjustable leg,Rotating beer mouth, discharging outlet.CO2 outlet,coolant inlet and outlet,
CIP inlet and outlet,wort inlet and yeast outlet,cleaning ball, pressure gauge.
Option:Dry hop mouth,CO2 filling device With titanium rod distributor;level gauge
Material and accessories of conical cooling fermenter:
All parts of beer fermentation tanks are made in top-grade certified stainless steel materials (2B or precise polish for available surface). All components are made according to the minimum thickness requirement of different countries. Insulations of un-press elements are made in 2mm-thickness stainless steel (2B or precise polish for available surface).Only certified materials, professional design and manufacturing technique ensure top quality.
Scope application of conical jacketed cooling fermenter:

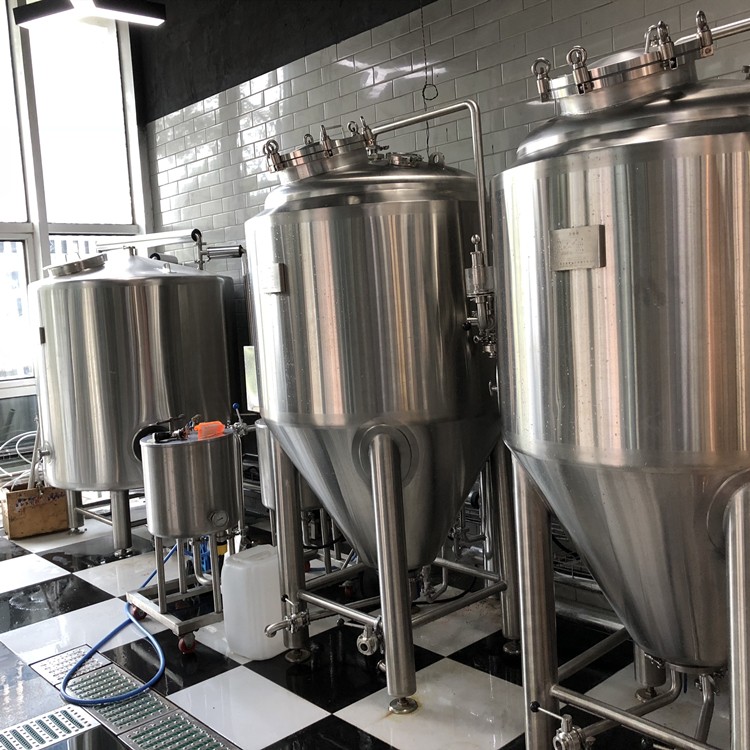

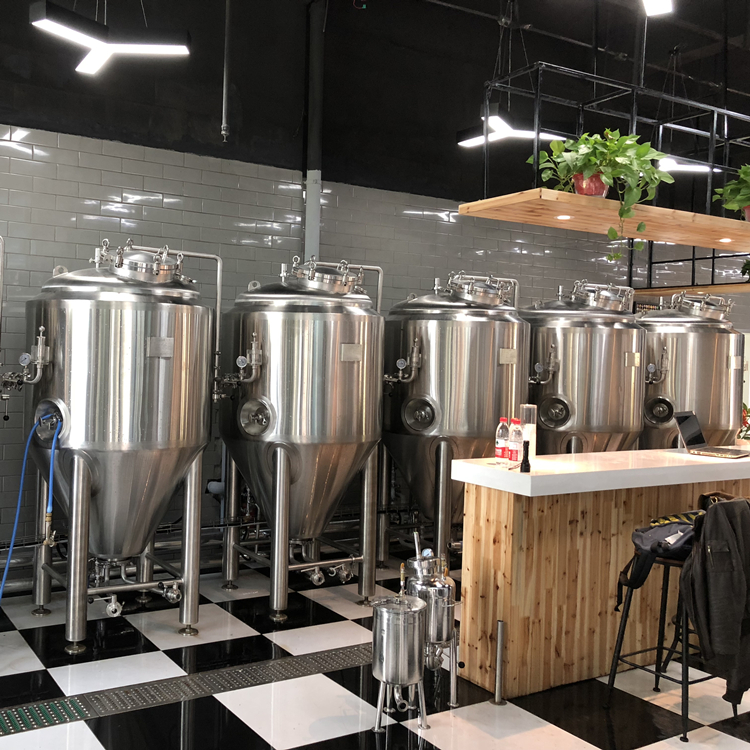

The picture above shows the scene of the customer's craft beer bar. The customer puts the fermentation tank in the bar, so there is no need to add additional storage tanks and beer distribution equipment, and the customer can directly take the wine through the fermentation tank when drinking at the bar counter drink. The inner and outer surfaces of our fermentation tanks are polished and pickled and passivated, which can highlight the elegant temperament of the bar in the interior decoration. The design of the cone bottom of the fermentation tank and the design of the shape will be customized according to the customer's site layout requirements and the size of the room. Our company can produce double-layer fermentation tanks, horizontal jacketed fermentation tanks, etc.

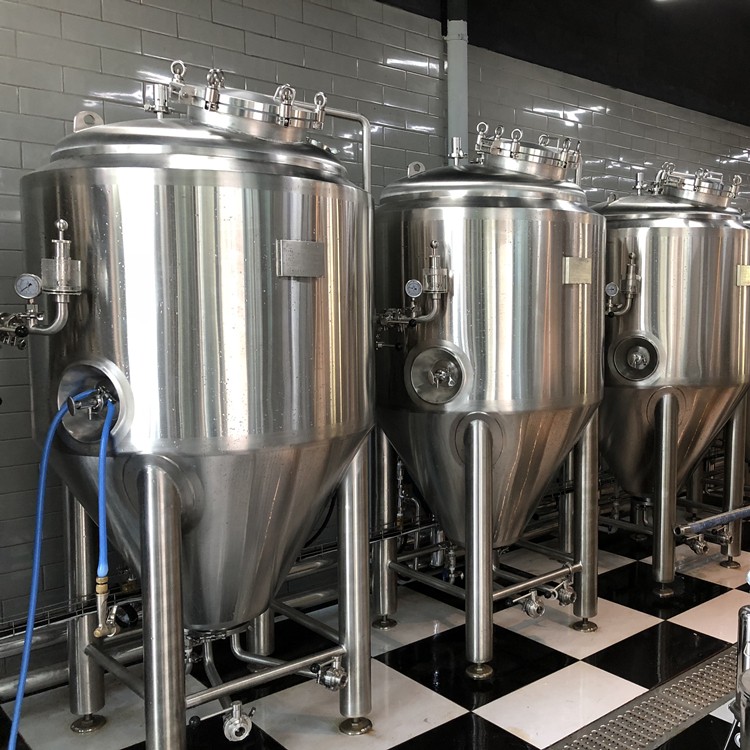

As a professional equipment supplier,we strive to provide customers with the highest quality equipment. Our equipment not only uses thick materials and has a long service life, but also the tank is equipped with complete accessories, such as thermometers, pressure gauges, sampling valves, temperature sensors, etc. A variety of accessories provide customers with one-stop products and services. As shown in the figure, a 500L fermenter, 6 fermenters can produce 6000L of fermented beer per month (according to the usual 15-day fermentation cycle). It can meet the consumer demand of most craft beer bars.
As a professional equipment manufacturer,we are looking for distributors and agents of craft beer fermentation tanks and brewing systems worldwide. If you are interested in beer brewing and have certain local market resources,we hope to be able to talk to you The cooperation did not occupy a place in the local beer fermentation tanks and brewing system industries.
If you want to ask anything just fill in the form below and send us.
