WEMAC is a large beer equipment manufacturer, including large, medium and small beer saccharification equipment and brewing equipment are our scope of supply. If you have the idea of establishing or expanding beer brewing plants and distributing beer systems, we will make you Second choice, the following is an introduction to the 60L small beer fermentation tank, I hope it will help you to choose a fermentation tank.

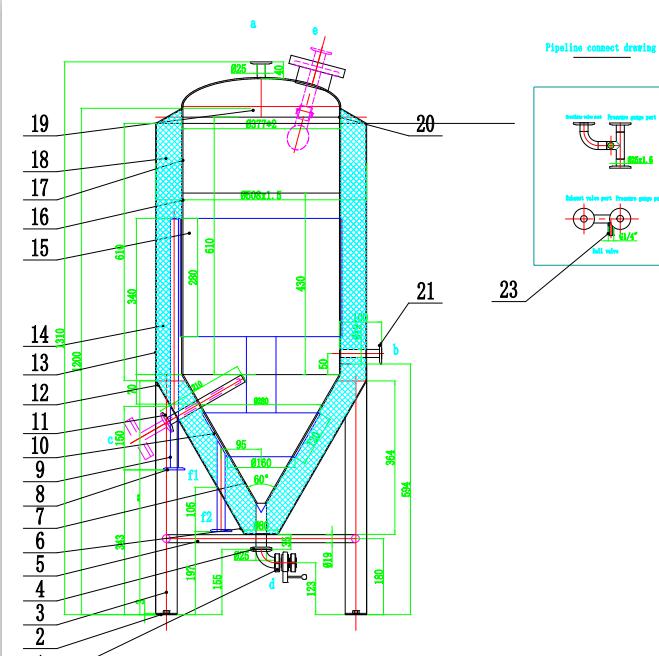

This picture is a fermentation tank design drawing designed by WEMAC engineers for customers. It is different from the large inventory of traditional beer equipment manufacturers. WEMAC takes more into account the consumer’s intentions and ideas during the product design and production stage. Different customers The needs of equipment are different, and what our experienced engineers do is to allow customers to participate in the design of the equipment as much as possible after taking into account the convenience and feasibility of equipment production and use to ensure that the finished product is fermented.
WEMAC has a large-scale production workshop and advanced factory building experience. When the quality is guaranteed, the products are delivered for use. Customers can inspect the goods on site before delivery, and ship the products after they are satisfied.

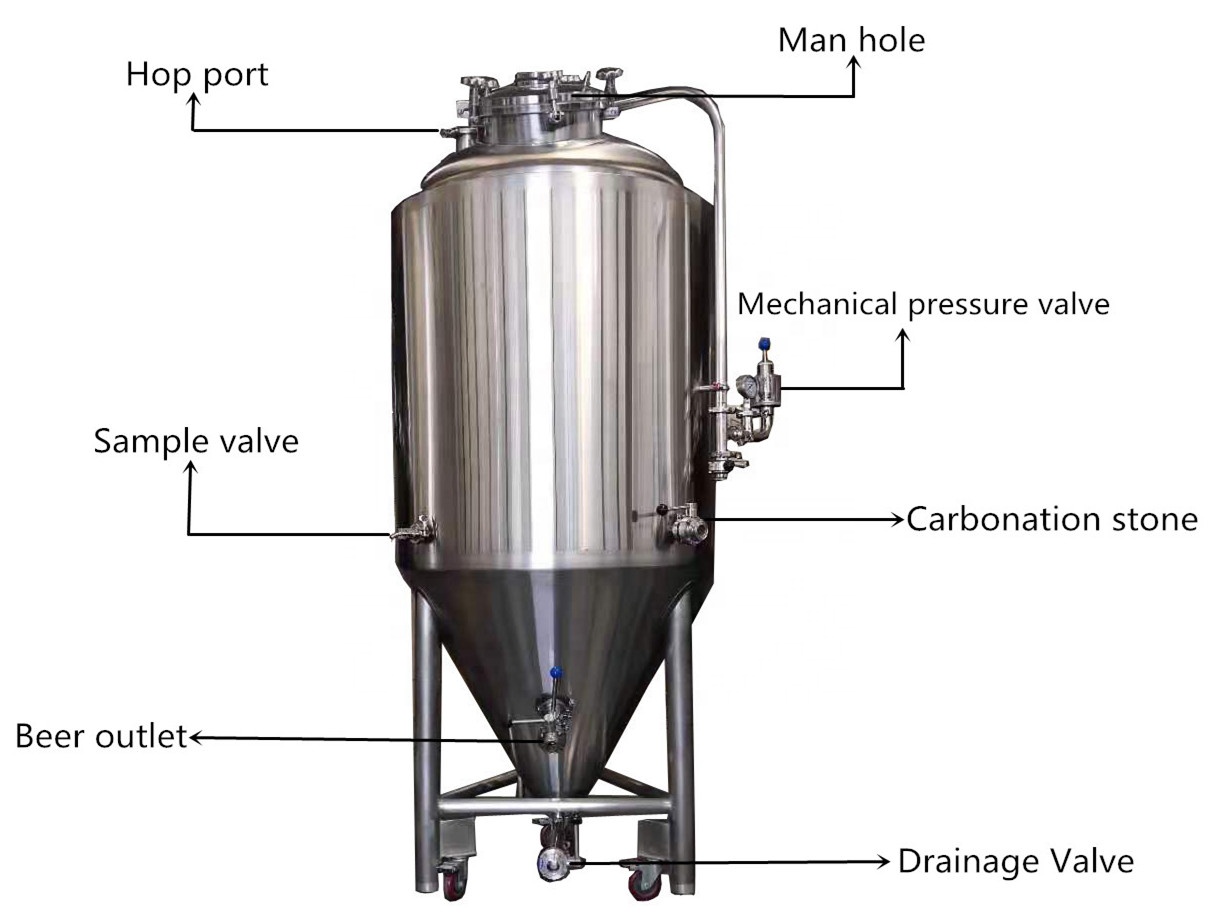

The following pictures can show the detailed information of the fermentation tank more clearly:
The whole is made of high-quality stainless steel. The inner material is 2MM thick, the outer material is 3MM, and the jacket is 80MM between the inner and outer materials. The jacket is filled with polyurethane foam, and the heat preservation effect is excellent. The top manhole, two thirds of the top is a pressure regulating valve, there is a carbon dioxide aeration hole in the middle, the lowest part of the cone bottom is the sewage outlet, the beer residue in the fermentation tank is discharged from here, the top of the sewage outlet is the beer outlet for fermentation The finished beer is discharged from there. A cold water pipe is embedded in the jacket, and the cold water is cooled by the Miller plate.
It is welded with argon gas, no welding scar, and the welding part is polished.
For the valves, pipes, pressure and other accessories on the fermentation tank, we will give customers free accessories to avoid damage during transportation or use and ensure customers' worry-free use.
1. The inner tank is made of SUS304, thickness 3mm; the outer material is SUS304, thickness 2mm; external dimensions: D=508mm, H=400mm.
2. Miller board jacket, material SUS304, thickness 1.5mm, the cooling area of the cylinder body is about 40% of the surface area of the cylinder, and the cooling area of the head is about 50% of the surface area of the head.
3. Polyurethane foam insulation, thickness 65mm.
4. The pressure of the tank is 3bar.
5. 20% empty capacity. The upper part of the cylinder of the tank is flush with the bottom of the washing ball,
6. Equipped with a washing ball, the installation position is slightly lower than the welding seam between the cylinder and the head, and the cleaning pipe Ø32
7. The internal roughness is less than or equal to 0.4um, and there is no deformation or scratches, and the welding seam is 2B surface.
8. Tank top device is installed on the upper part.
9. The tank body is equipped with integrated searchlight sight glass; there is a wine outlet at the bottom.
10. The bottom drain pipe Ø32.
11. The internal 2B surface of the equipment, pickling passivation treatment, external surface drawing treatment, beautiful appearance, pipeline layout, opening position, etc. meet the requirements of operation, site installation and visit.
