We are a one of the largest Brewery equipment manufacturers and factory since 1958 from china ,professional craft brewing,home brewing ,microbrewery and commercial brewing equipment equipment solutions from China.we design and install Brewery equipment worldwide. export@wemac.cn

Top quality 10000L commercial brewery china factory sale in Europ WEMAC G079

  • * Processing : Fermenting Equipment, Beer Brewing
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
Top quality 10000L commercial brewery china factory sale in Europ

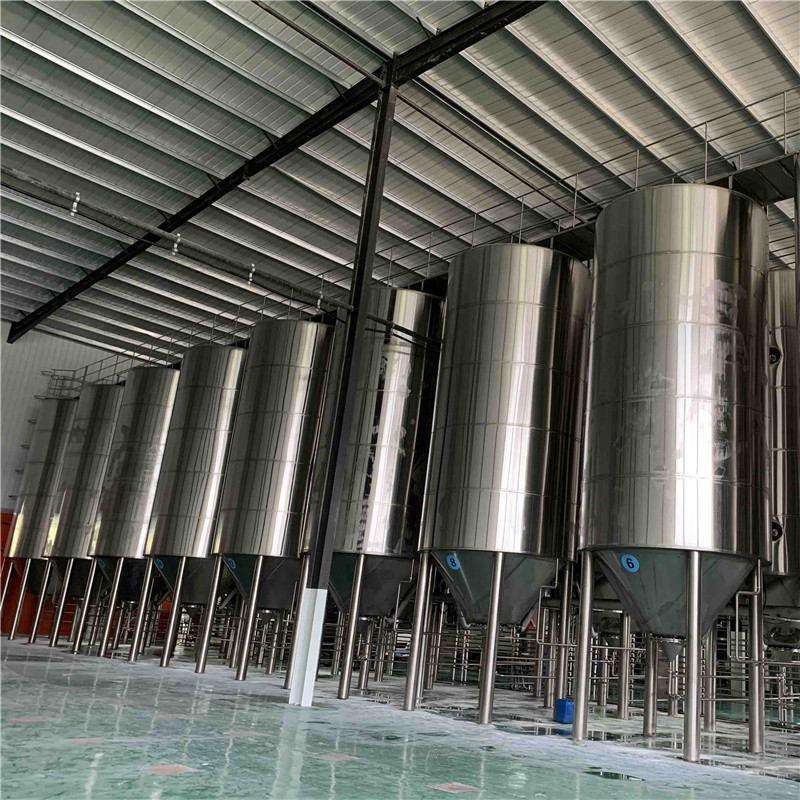

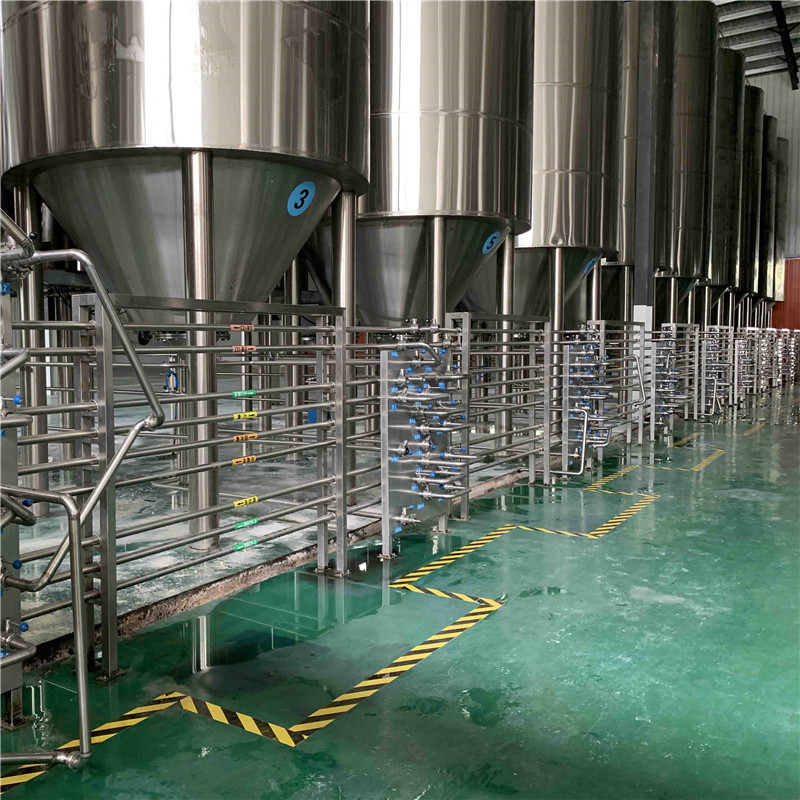

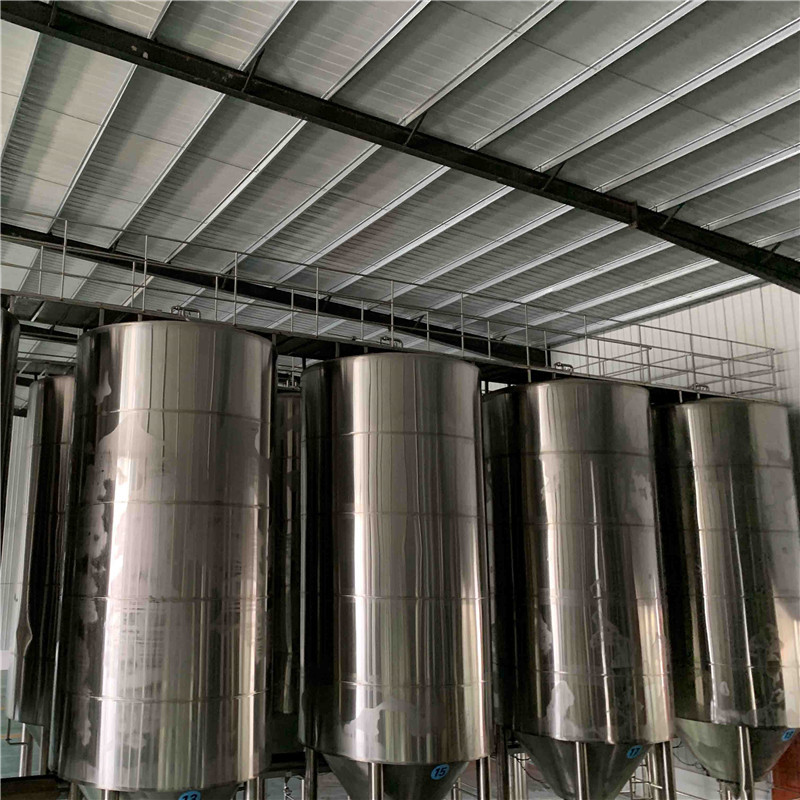

10000L brewery including 5 vessel mash system with 30000L fermentation system ,water treatment ,CIP system , cooling system


Top quality 10000L commercial brewery  china factory sale in Europ

The first wort can also be extracted from the upper part (note that the small particles settle very slowly), which can shorten the filtering time by about 20 minutes.

Therefore, in order to produce high-quality beer, the washing up must not be too strong, that is, the washing up time should not be too long.
The residual sugar in the washing waste water should be 1-1.5 degrees. If it is too low, the wheat husk components will be leached too much, which will affect the beer flavor.


Top quality 10000L commercial brewery  china factory sale in Europ

The determination of the filtration area is generally calculated based on 200kg malt per m2. The thickness of the filtered malt is generally controlled at about 34cm; the thickness of 150kg / m2 is 25cm. .
Screen plate load: 140-175kg / m2 dry method, 150-210kg / m2 humidified, 200-280kg / m2 wet method.
Usually 1 ton of malt is pulverized to form 1.7-1.9 cubic meters of malt (100Kg malt can obtain 100-130kg of malt with a water content of 70-80%), and the wet-pulverized malt is about 30% thicker than the dry method.


Top quality 10000L commercial brewery  china factory sale in Europ

The advance speed is not more than 1.6m / s, and the time is 10-30min.
The filtration speed should not exceed 0.16L / m2 / s.
Dishwashing should be carried out carefully. The temperature of the washer water is 75-78 ℃, and the residual sugar of the washer is generally controlled between 1.0-1.5%.

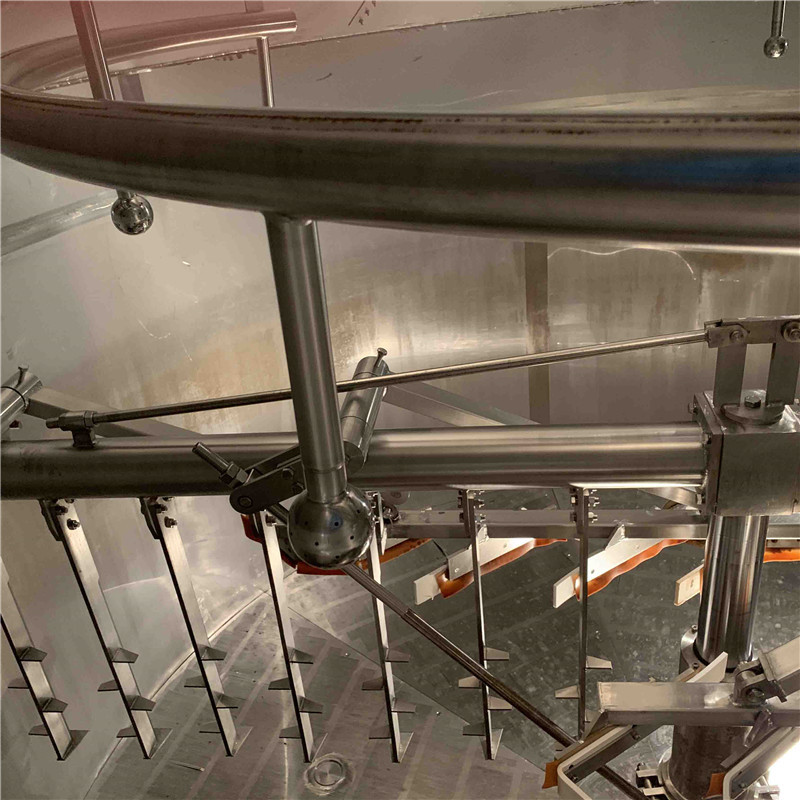

The outer ploughing speed should not be greater than 1 revolution / 4 minutes, 0.25-0.4rpm. Outer edge linear speed is 0.04-0.07m / s, 4-5rpm, 0.4-0.7m / s.


Top quality 10000L commercial brewery  china factory sale in Europ

Filtering auxiliary equipment includes wort pump, wort tank, wort pump, wort detection platform, wort balance tank, wort temporary storage tank, weak wort tank, etc. The wort pump capacity is capable of hitting all wheat per hour. The juice is enough. The wort tank, wort pump, wort detection platform, etc. are determined according to the actual situation. The wort balance tank can be large or small. The wort temporary storage tank diameter ratio is 1: 2, and at least one batch of wort needs to be stored. The amount of juice.
