Pharma use energy saving multi column distillation plant for sale China WEMAC S0013

  • * Processing : Multi effect water distiller
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Size : To Be Determined
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
Characteristics:
1. Structural : pre-heater, condenser and the first effect evaporator are all double tube plate type.
2. Separation device: the feed water enters into the equipment will under three separation stages which is film downward evaporation, gravity separation and spiral circumferential flow.
3. Material: SS316L is adopted in parts that contact with the feed water, WFI and secondary pure steam.
4. Automatic welding: for the connection of the pipeline and the spare parts, arc welding is adopted to protect the automatic welding track, to ensure the welding quality.
5. Three-dimensional elbow: Making stainless steel pipe directly tensile bend in the pipeline as far as possible, avoid welding.
6. Insulation: Both the separator and pre-heater are adopted with glass fiber needle wire mat, which is a new type thermal insulation material. The insulation effect is 30 times better than the traditional material.
7. Surface polish: electro-chemical polish is applied to the interior and the exterior surfaces, which effectively guarantee the finish of stainless steel. Sandblasting process can also be adopted to the exterior surface processing.

Pharma use energy saving multi column distillation plant for sale China WEMAC S0013

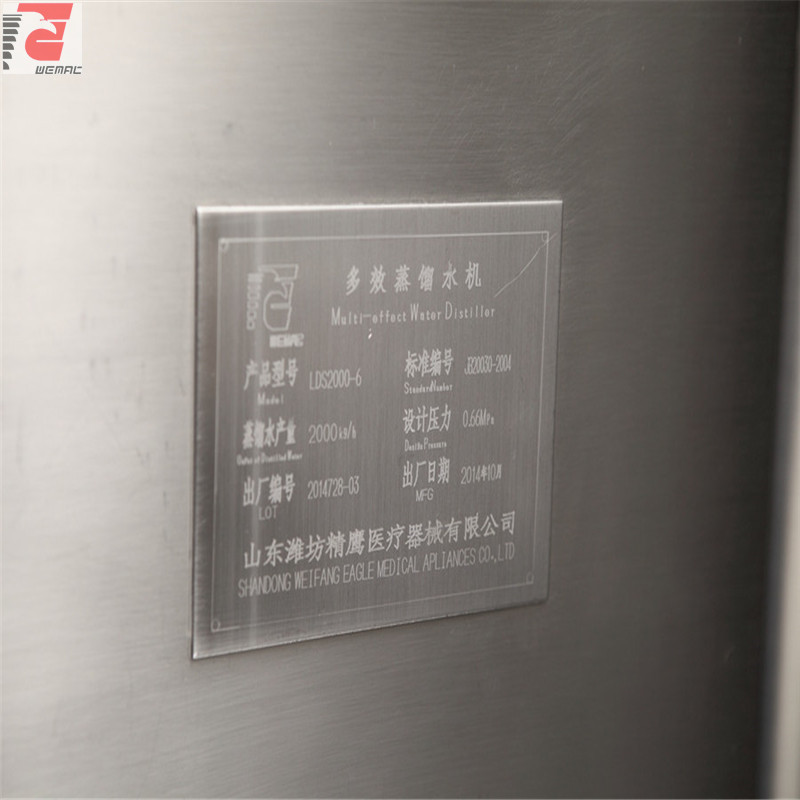

5.1 Each multi column distillation plant is equipped with a stainless steel nameplate.

5.2 Nameplate contents the product information, origin of place and other relevant information.

5.3 The contents of the nameplate can be both English and Chinese language.

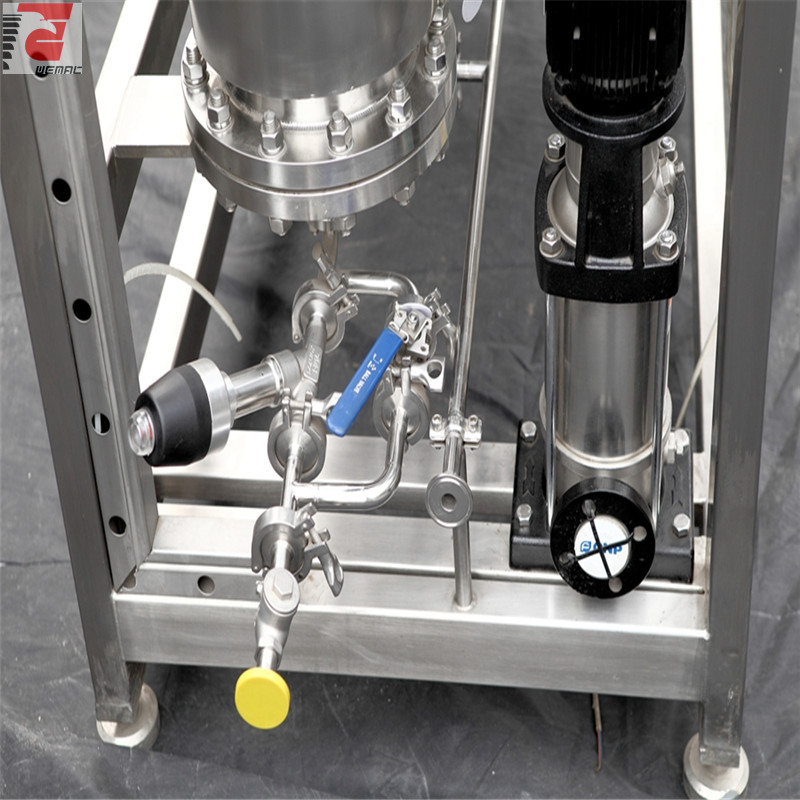

6.1 The end of the first effect evaporator of the multi column distillation plant is equipped with a check valve, a steam trap, a ball valve, a pneumatic angle valve, etc.

6.2 It can effectively prevent the steaming water left and backwater from flowing back.

6.3 Regularly discharge industrial steam condensed water and steaming water left from various effects.



7.1 Qualified water and unqualified water of the multi column distillation plant shall be automatically discharged.

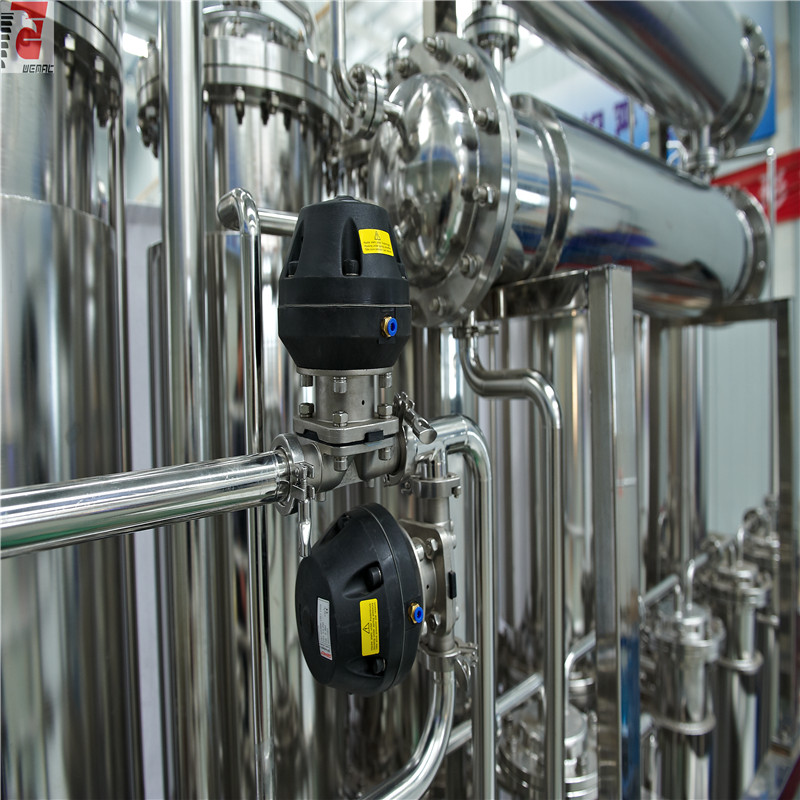

7.2 The pneumatic diaphragm valve equipped with Germany Gemu has stable quality and performance.

7.3 Pneumatic diaphragm valve is installed on the top of the injection water storage tank to meet the 3D requirements and effectively control the growth of microorganisms.

7.4 Double condenser design, all designed for double tube sheet plate, avoiding cross contamination.

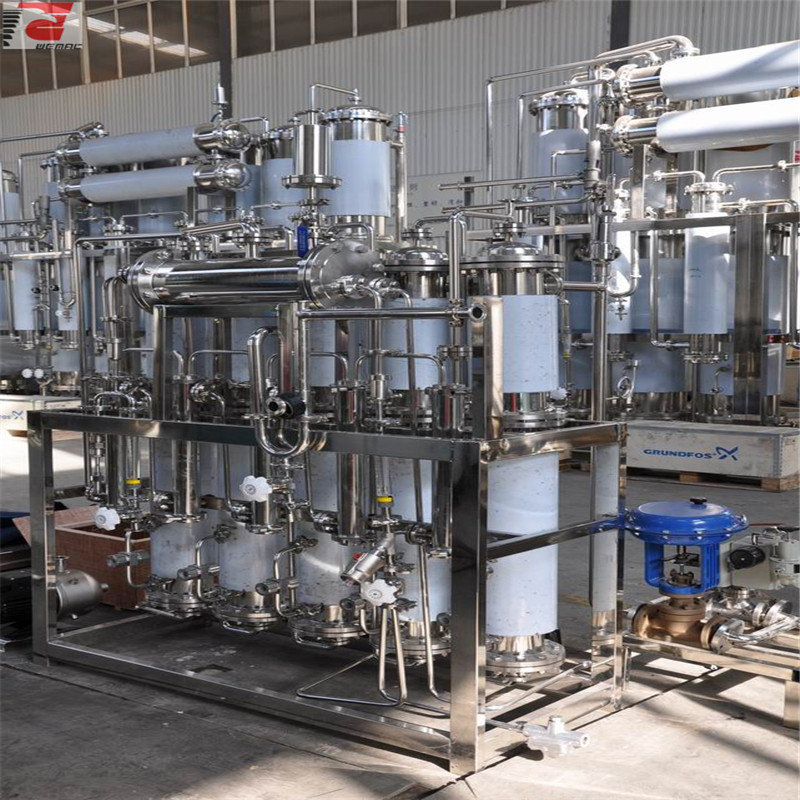

We have multi column water distiller with capacity from 100-8000L/H, and 4,5,6 columns separately.

Energy saving: Multi effect water distiller has a high utilization of the industrial steam because the secondary steam is used in each effect, thus it has a significant energy saving effect. This energy saving is obviously intensified with the increasing nummer of effect evaporators. At the same time, the amount of the cooling water is substantially reduced. The five-stage effect water distiller of WEMAC only use little cooling water, while the six-stage effect water distiller doesn’t need cooling water at all.
