High efficiency and energy saving 500L/H 6 columns multi effect water distiller WEMAC S003

  • * Processing : Multi effect water distiller for WFI production
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Size : To Be Determined
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
Working principle
The qualified feed water is input into the condenser after increased the pressure by multilevel pump. And then enters into each preheater (the feed water will be heated by the secondary steam and distilled water in the condenser, in the fist stage preheater, the feed water heated by the industrial steam condensate water, after enters the other stages preheater, it is heated by the secondary steam condensate water). Next the feed water is input into the water distributor of the 1st stage evaporator, which is spouted to the inside of the heating tubes and flowed as film. The produced second steam with drips enters into the gas and steam separating setting from the bottom of the heating tubes. The separated pure steam enters into the next stage as heating steam, meanwhile, the feed water, which is not evaporated, enters into the next stage. And then it is repeated above mentioned process. The pure steam from last stage is converged with each stage condensed water (except 1st stage), after cooling and drainage of the non-condensable gas, (according to different model, there should be a device for discharge the non-condensable gas continuously) it is became the WFI. There is an on-line conductivity test at the output orifice, the qualified distilled water will be output as the WFI, and the unqualified will be discharged.

High efficiency and energy saving 500L 6 columns multi effect water distiller.




1.1 The external preheater, condenser and first effect evaporator can be either single tube plate design or double tube plate design.

1.2 The parts in contact with raw water, water for injection and secondary pure steam are all made of SS316L.

1.3 Pipe and fitting internal connection, using argon gas protection automatic track welding to ensure welding quality.

1.4 Three-dimensional elbow: Stretch the elbow directly on the pipeline by using stainless steel pipe as much as possible to reduce the weld.

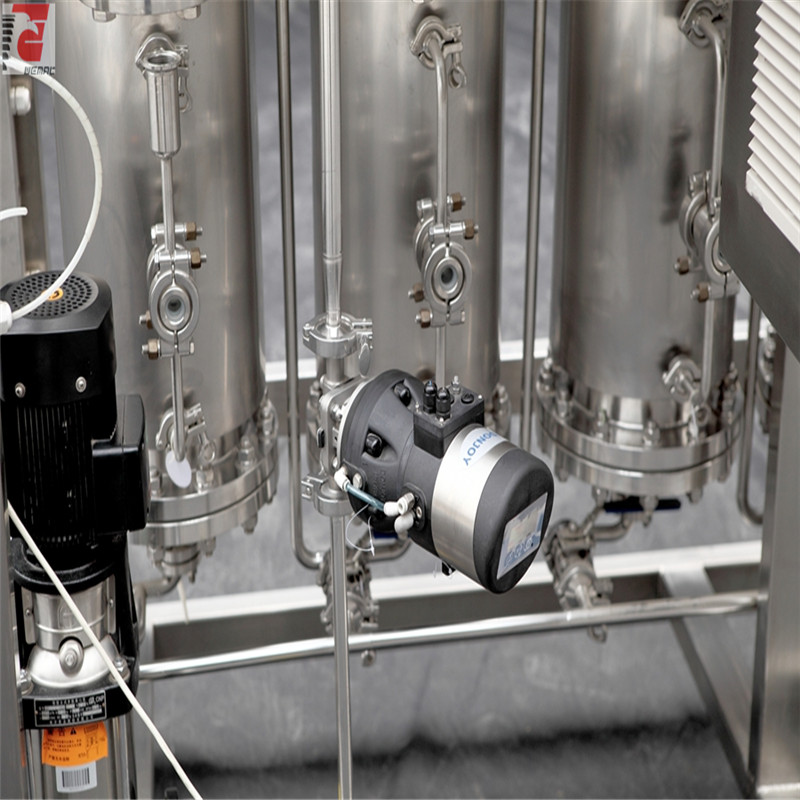

2.1 Distillation water machine is equipped with vertical multi-stage pump of Grundfos, Denmark. The material is 316L and the quality is stable.

2.2 Equipped with Germany Burkert PID proportional control valve, automatically adjust the water inlet capacity, and the quality is stable.

2.3 The lower end of each evaporator is equipped with an observation mirror, which can timely observe the liquid level of the material in each effect of evaporator.

2.4 Injection water outlet is equipped with Germany Burkert zero dead angle T-type diaphragm valve, which can take sample and test the quality of water for injection.

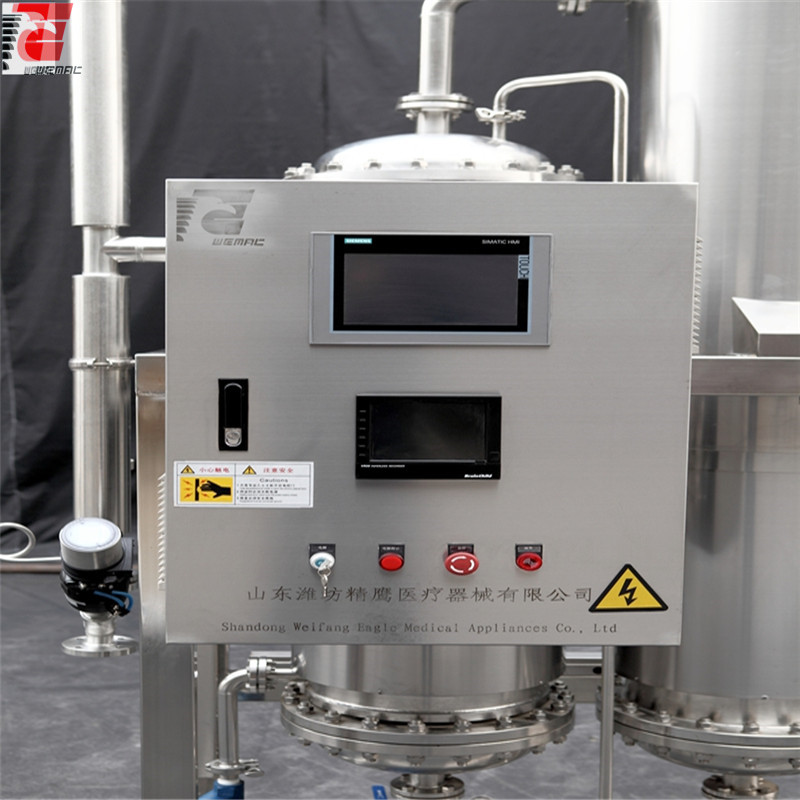

3.1 Fully automatic control system, the control cabinet is made of 304 stainless steel.

3.2 With sound and light alarm.

3.3 With Siemens' touch screen, the entire system can be monitored online.

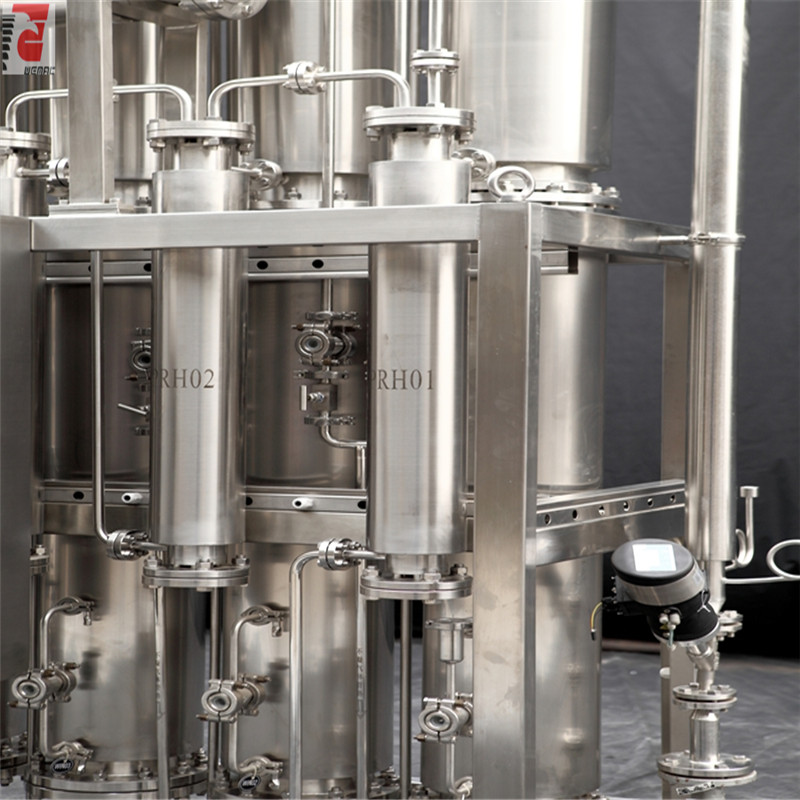

4.1 The distilled water machine is equipped with double tube plate structure, external pre-heater.

4.2 The pre-heater has a heat preservation cylinder, which is safe and can prevent heat loss.

4.3 Each pre-heater is connected by flange, and the PTFE gasket is placed inside to ensure there is no leakage, which is durable for eight years.







Send a Message

If you want to ask anything just fill in the form below and send us.

Name: SAMANTHA         time:2020-02-24 11:30:06
THE DISTILLER WORKS WELL. INDEED SAVE ENERGY.

Name: Walter         time:2019-12-12 14:00:10
Good quality! The machine is made of superior materials.

Name: Calvin        time:2019-10-19 10:21:28
The multi effect water distiller is reasonable in its structure and easy to operate. Very good design.
