Italian Stainless steel beer brewing brewery bright tank ZXF

  • * Processing : Fermenting Equipment, Beer Brewing
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
SUS 304,high quality stainless steel beer brewing tanks,It is suitable for beer fermentation, filtration, storage and transportation, and is very popular in Italy.Horizontal and vertical are optional, with jacket, which has the function of heat preservation and cooling.

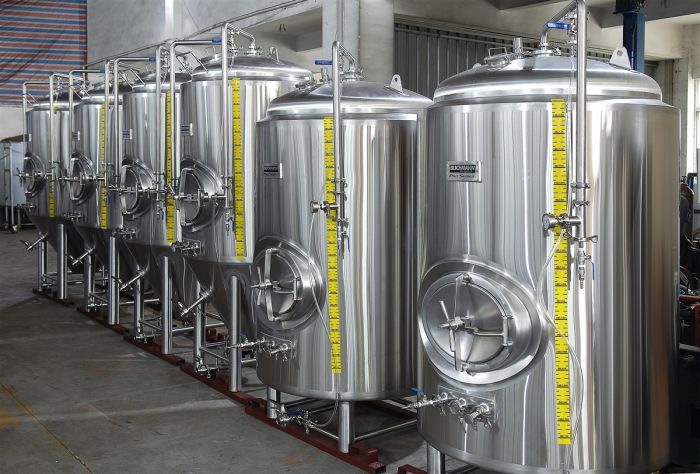

BBT-40BBL-bright tank.jpg

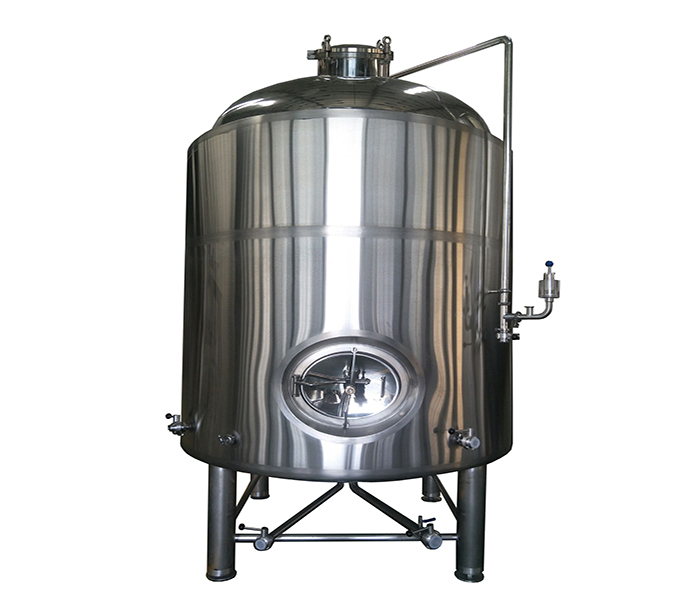

Bright Beer Tank is often also called serving tank, tax determination tanks or clear beer tank (=CBT), Jacketed Bright Beer Tank (=BBT) or maturation or conditioning tank. Made of stainless food steel DIN 1.4301 (AISI 304). Standardized dimensions and equipment, or according to individual customer requirements. Function:Beer maturation/conditioning/serving/filtered beer receiving. 100% TIG welding with pure argon gas shield, Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner.BBT-SUS304-tank.jpg

Made of stainless food steel DIN 1.4301 (AISI 304)

Standardized dimensions and equipment, or according to individual customer requirements

Interior Shell: SUS304 full welded; TH=4mm

Exterior Shell:SUS304 full welded; TH=2.5mm

100% TIG welding with pure argon gas shield

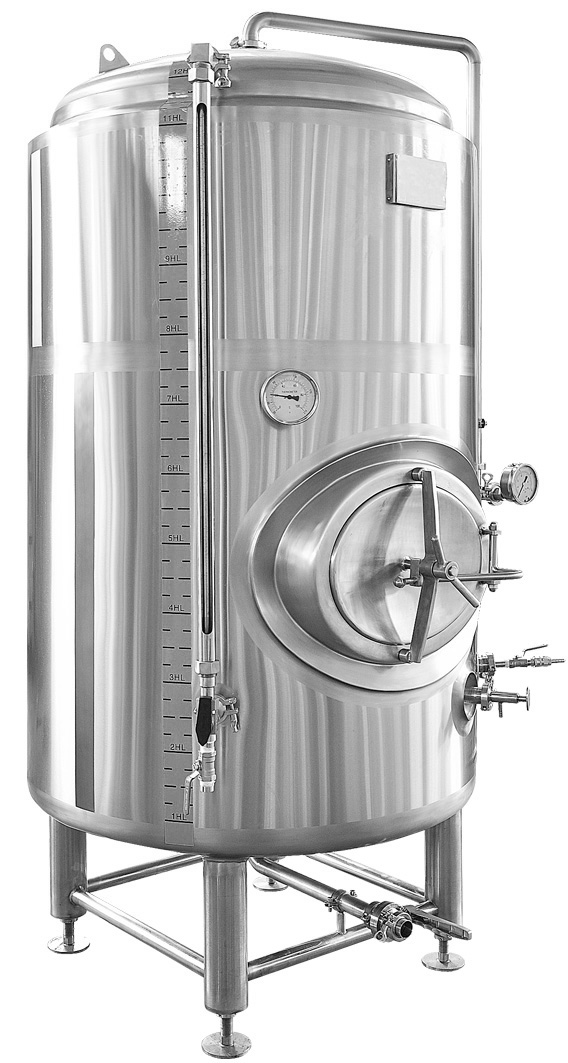

BBT-bright-tank-sale-stainless steel.jpg

Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner

Insulation: Polyurethane; TH=80mm

Glycol Jacket on side wall

Stringent tank leakage test by water and pressured gas

Stringent Jacket leakage test by water and pressured gas

Flanged manway on side

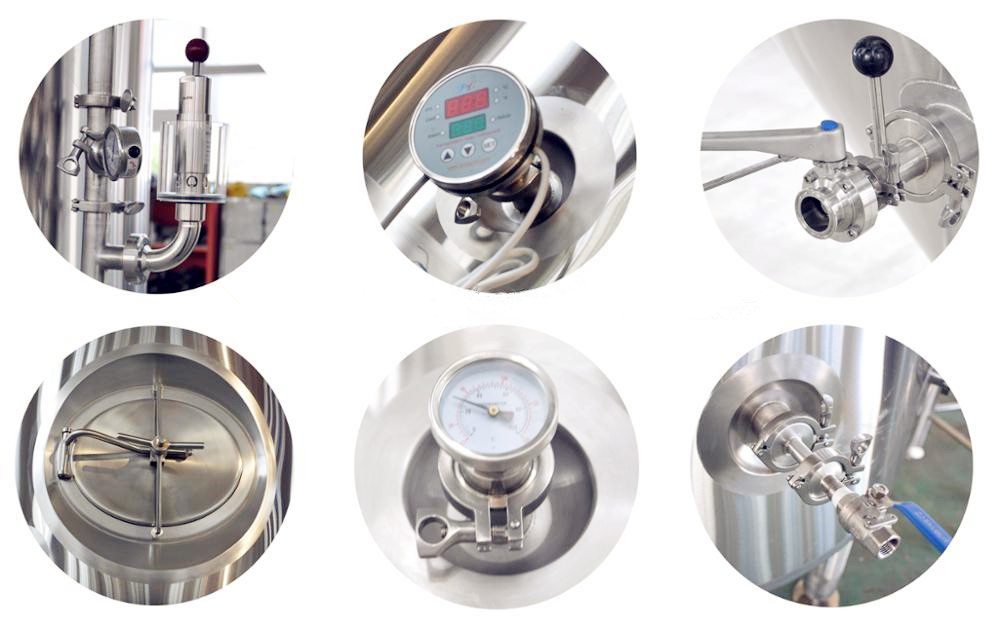

BBT-bright tank-beer.jpg

CIP arm with 360° coverage CIP spraying ball

Full sanitary sampling valve

Mechanical relief valve 2 bar on CIP arm

Carbonation port with stone

Shockproof pressure gauge on CIP arm

Tri clamp discharge arm with butterfly valve

Thermowell for high accuracy temperature sensor

3 or 4 pcs completely SUS304 heavy duty legs with leveling pad

Sanitary level tube with stainless steel ball valves

Complete valves, fittings and all parts
