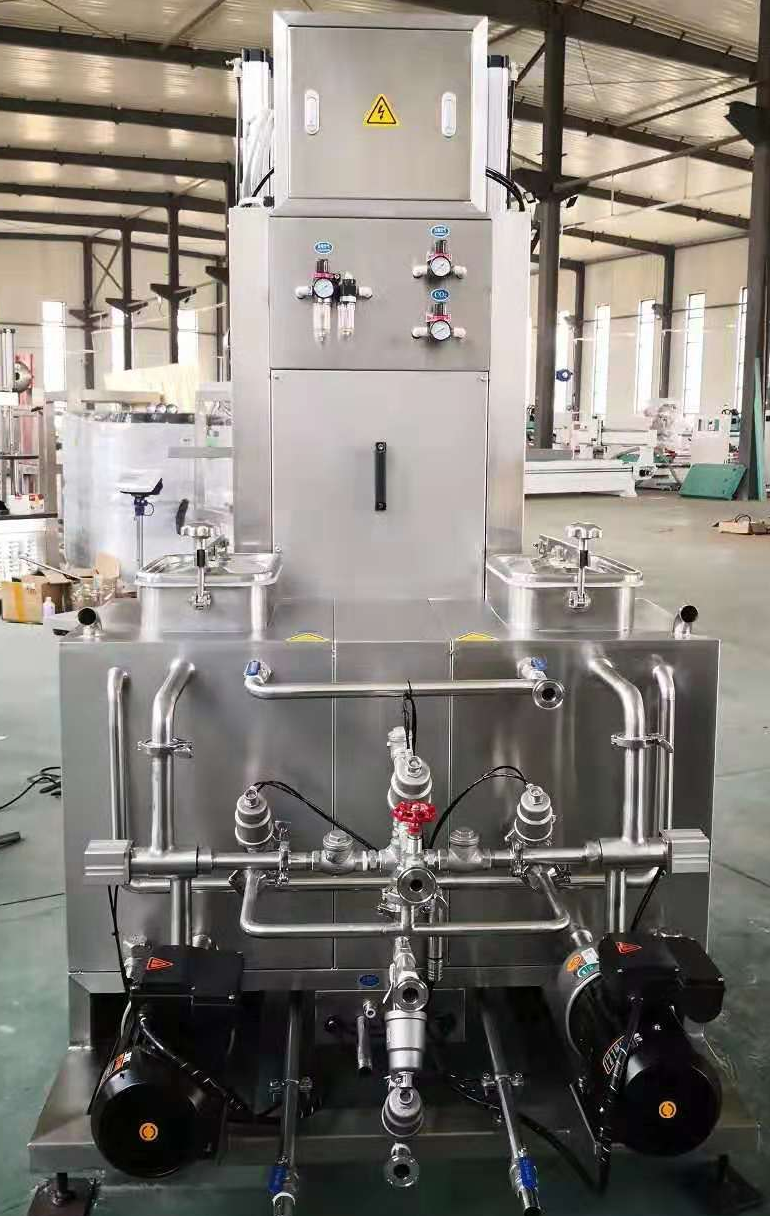

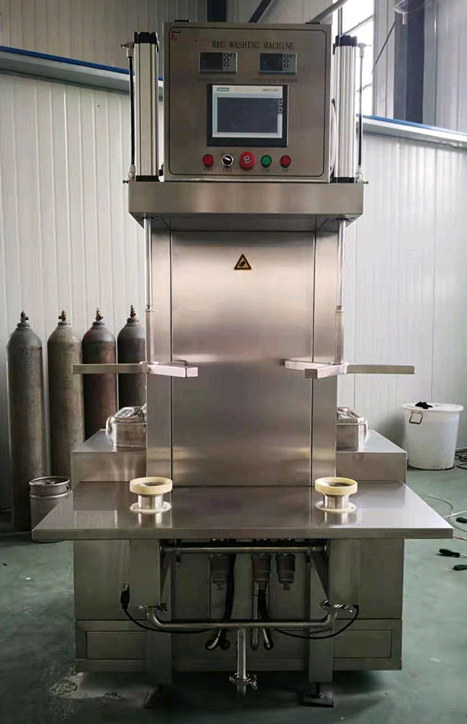

Beer barrel washing machine is divided into single head washing machine and double head washing machine according to the number of cleaning heads. It is divided into two water tank washing machine and three water tank washing machine according to the cleaning water tank configuration. It is specially designed for various beer storage containers (including stainless steel storage barrels and beer drafts) Barrel) is designed for cleaning and disinfection. The equipment can automatically complete all processes such as cleaning, disinfection and CO2 pressure preparation. The control unit adopts Siemens programmable controller and Siemens man-machine interface to control the whole process. All control parameters (time values) can be adjusted non-stop. The equipment is easy to operate, and can be used to clean different fresh-keeping barrels and beer barrels by selecting the switch setting and replacing the cleaning head.

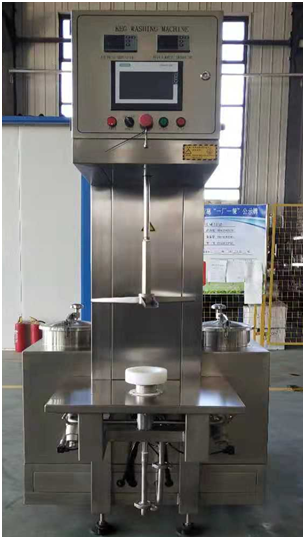

Description of single head beer barrel cleaning machine:
1. Main specifications and technical parameters
Working table size (mm): 515x640
Working table height (mm): 750
Machine dimensions (mm): 900 x1300 x1850
Maximum stroke of cylinder piston (mm): 300
Net weight (Kg): 245
Production capacity: 30-60 barrels/hour
Air consumption: 8-22.5m3/hour
Water consumption: 1-3 m3/hour
Power: 20KW electric heating
Cleaning method: inverted cleaning
Applicable barrel size (mm): Diameter: between 250-500
Height: between 400-660 mm
2. Technical requirements:
Air source pressure: 0.6-0.8Mpa
Cylinder pressure: 0.4-0.5Mpa
CO2 pressure: 0.2-0.3Mpa
Steam pressure: 0.15-0.2Mpa
Hot alkali water temperature: 40-80℃
Hot water temperature: 40-80℃
Hydrogen peroxide concentration: 0.5%
Alkali water concentration: 1.5%
Power supply voltage: According to customer needs
