Part One-Introduction of home brew kits brewery equipment

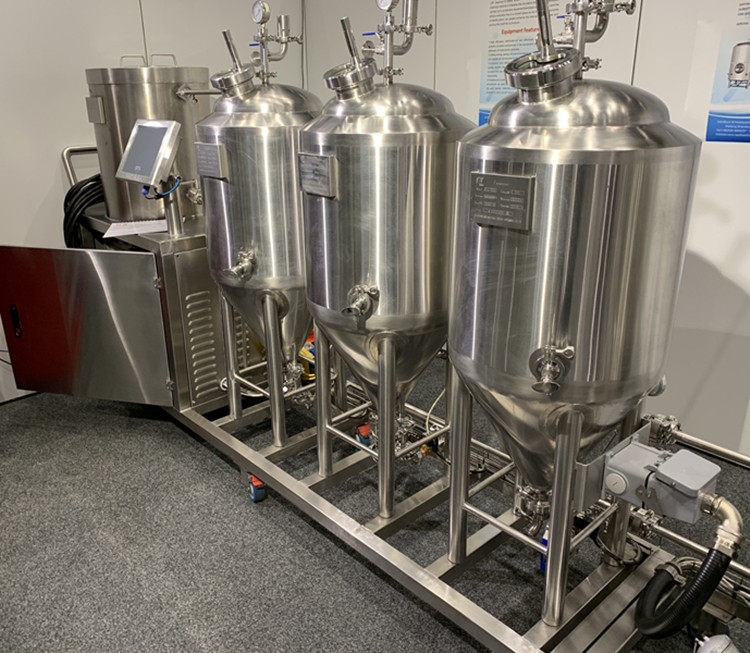

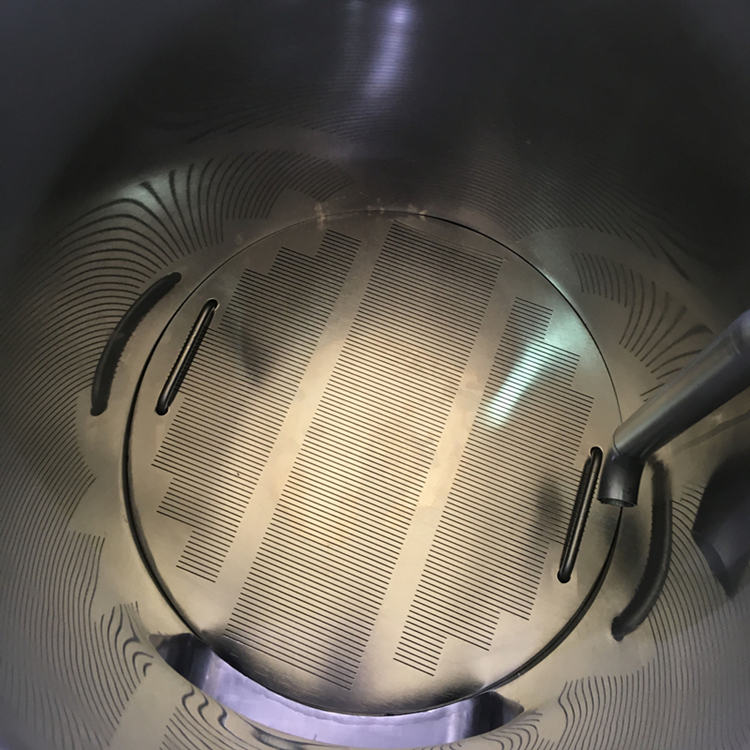

This skid home brewing system is designed for craft brewing amateurs who has been experienced in simple home brewing and would like to be close to commercial brewing.Including all functions which a microbrewery system standardly have.Whole mashing procedure happens in one tank with a filter drum inside.Two set of fermentation tanks are all insulated and jacketed with temperature controller for each.The glycol cooling system has one small ice water tank and a mini refrigerator. All the system seats on a skid with heavy wheels. It is very easily movable.This integreted brewing system is able to take on most of the real brewing in a micro brewery. It is suitable for some home beer brewing fans,brewing lovers or family party or some brewery labs.
Part Two-Specifications of home brew kits brewery equipment
All tanks and shelels are made of stainless steel,the inner shell thickness is 3mm,and the outer shell thickness is 2mm.
1 set of 50L mash/lauter tun combination all in one tank.
1 set of 50L kettle/whirlpool tanks combined for boiling wort
1 set of Sanitary pump,which plays the function of wort transport/cleaning
2 set of conical cooling jacketed fermentation vessel,The number of fermentation tanks can be increased or decreased according to customer requirements,Miller board refrigeration
1 set of all in one chiller and glycol water tank,both of the chiller nad glycol water tank are welded in the same skid,The cold water prepared by chiller is stored in a glycol water tank and is circulated in the fermenter jacket through a cold water pump for refrigeration
1 set of auto control panel,PLC+Touch screen HMI control,The boiling time and temperature can be set, which is suitable for a variety of household beer brewing requirements.
Part Tthree-Power request specification of home brew kits brewery equipment
Heating Elements/heating coil: 6kw,220v/50,60Hz-2p.
Wort pump:0.45kw,220v/50,60Hz-1p.
Chiller:1.5KW; 220v/50,60Hz-1p.
If you want to ask anything just fill in the form below and send us.
