China microbrewery equipment suppliers microbrewery for sale WEMAC Y080

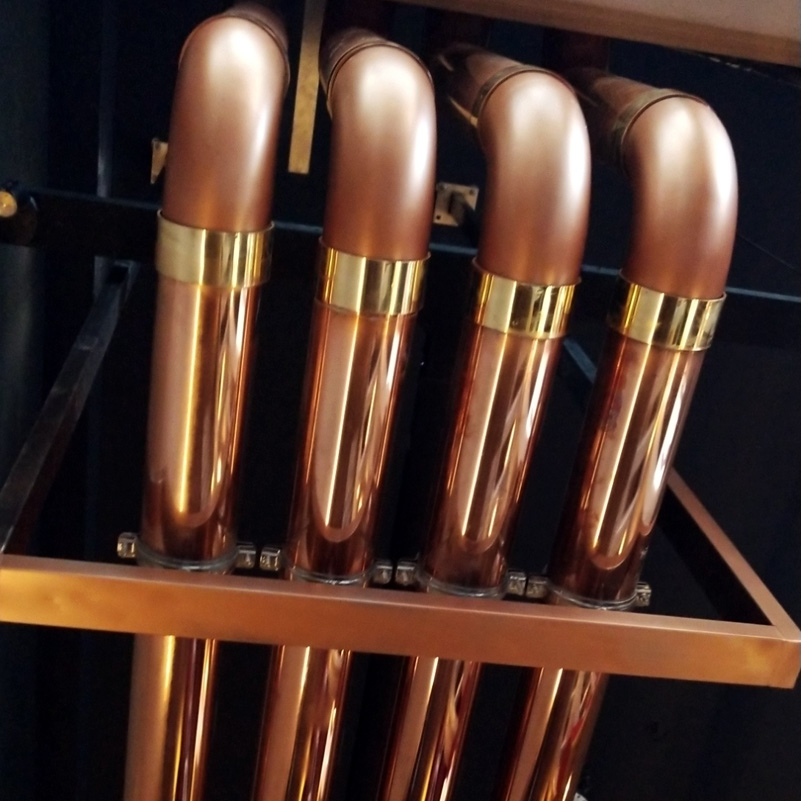

About the pipeline,we can also manufacture the copper type,fit with your copper tank.This will be very beautiful
for your brewery equipment.
Including boiler to mashing, boiling shut-off valve, pneumatic angle seat valve, pressure reducing valve, pressure gauge, safety valve, etc. are all domestic brands, traps use float ball traps. The steam unit of Φ219*3 discharges 18m. Insulation, color steel plate 0.5mm + 100mm aluminum silicate fiber felt.
About the Mash system control:
1. Automated control of saccharification system temperature, drainage, boiling temperature and collapse.
2. The temperature of ice water and alcohol water is automatically controlled.
3. CIP cleaning semi-automatic control, divided into single tank cleaning, pipeline cleaning (cleaning mode can be freely combined, hot water preparation, lye / acid preparation uniform alkali combination, water rinse + alkaline wash + hot water wash / pickling, etc. )
The inner material is SUS304, 3mm, and the outer material is 2mm thick;
Steam heating; coil jacket, pressure resistance 3bar. The heating meets the temperature rise of 1-1.5 degrees / minute; the steam angle seat valve automatically controls the temperature.
Thermal insulation rock wool, insulation laminate thickness of 100mm.
The air capacity is more than 40%.
Under the stirring, stirring motor speed 19r / min (frequency adjustment), the tank stirrer material stainless steel 304, the bottom of the mixing shaft support bushing; domestic high-quality brand reducer.
The upper steam discharge pipe has a diameter of 219, and a condensed water collecting device is added to the steam discharge pipe, and the drain pipe is embedded in the heat preservation layer.
The bottom feed.
Configure the temperature sensor and liquid level sensor N/A sanitary flange interface.
Inside the equipment 2B surface, pickling passivation treatment, welds after fine processing,
no deformation and other deformation; outer surface wire drawing treatment, equipment appearance,
pipe layout, opening position, etc. to meet the operation, site installation and visit requirements.
Round glass manhole, butterfly head, mirror light.
If you want to ask anything just fill in the form below and send us.
