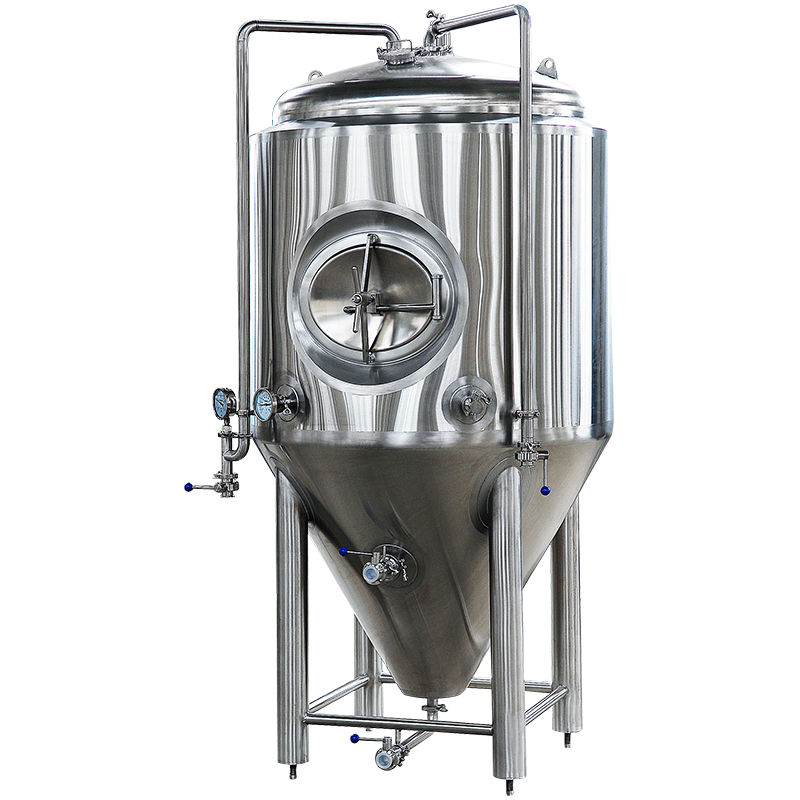

Brewery tanks fermentation tanks for sale factory direct sales WEMAC Y001
WEMAC fermentation tank,capacitiy can be from 50L to 2000L.
So if you want to get our fermentation tank quotation,pls tell me the fermentation tank capacity and quantity you want.
WEMAC fermentation tank inner shell material SUS304, thickness 3 mm; cladding material SUS304, thickness 2 mm.
Miller plate jacket, material SUS304, thickness 1.5 mm.The cylinder cooling area is about 40% of the surface area of
the cylinder, the cone cooling area is about 50% of the surface area of the cone.
WEMAC fermentation tanks usually adopt polyurethane foam insulation, thickness 80 mm.
The tank pressure is 2.5bar.60°cone compression design.
And the air capacity is 20%. The upper part of the tank cylinder is flush with the bottom of the washing ball.
With a ball washing, the installation position is slightly lower than the barrel and head weld, cleaning tube Ø32.
Our fermentation tank internal roughness ≤ 0.4um, and no deformation, no scratches, welding 2B surface.

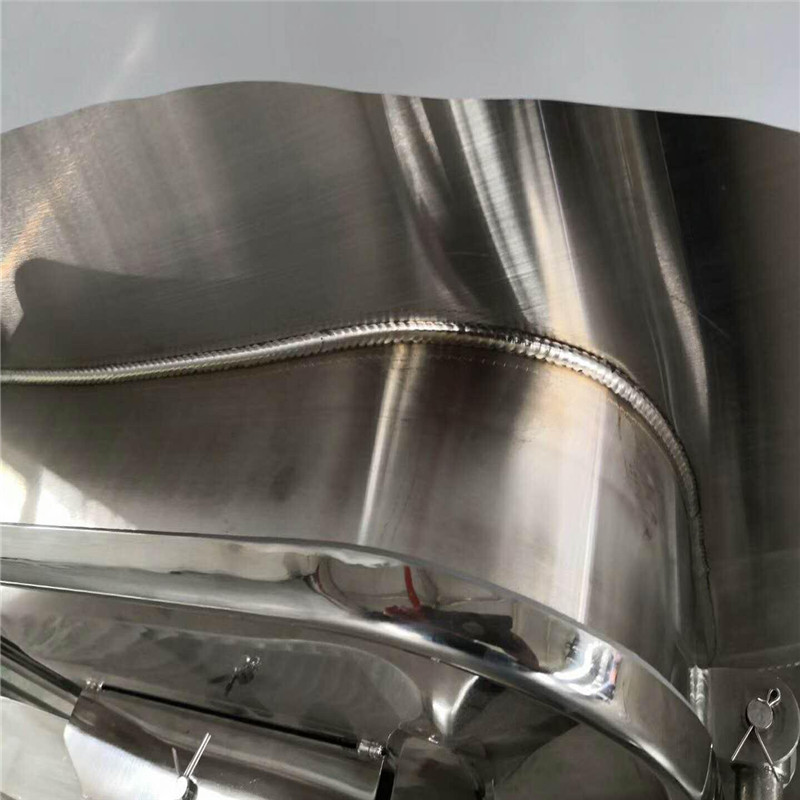

Our fermentation tank welding technology for your reference.
Inside the equipment 2B surface, pickling passivation treatment, outer surface wire drawing treatment,
beautiful appearance, pipe layout, opening position, etc. to meet the operation, site installation and visit requirements.

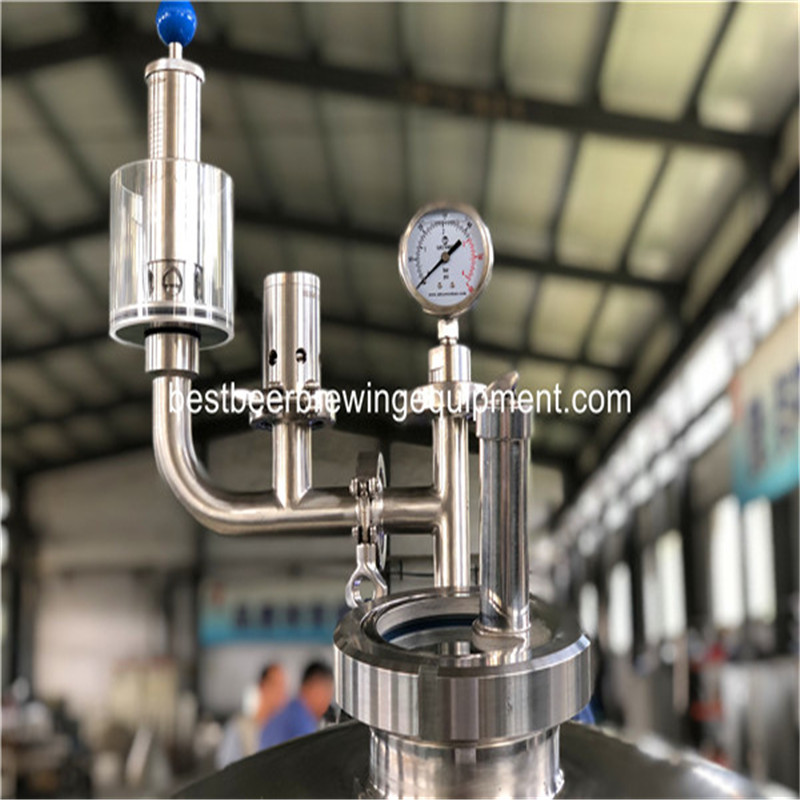

Our fermentation tank,with the upper installation manhole,positive and negative pressure safety valve,
hop dry mouth DN159, single head.
The tank is equipped with temperature sensing (-10--150 ° C, 4-20 mA signal, L = 200 mm, 50.5 chuck connection),

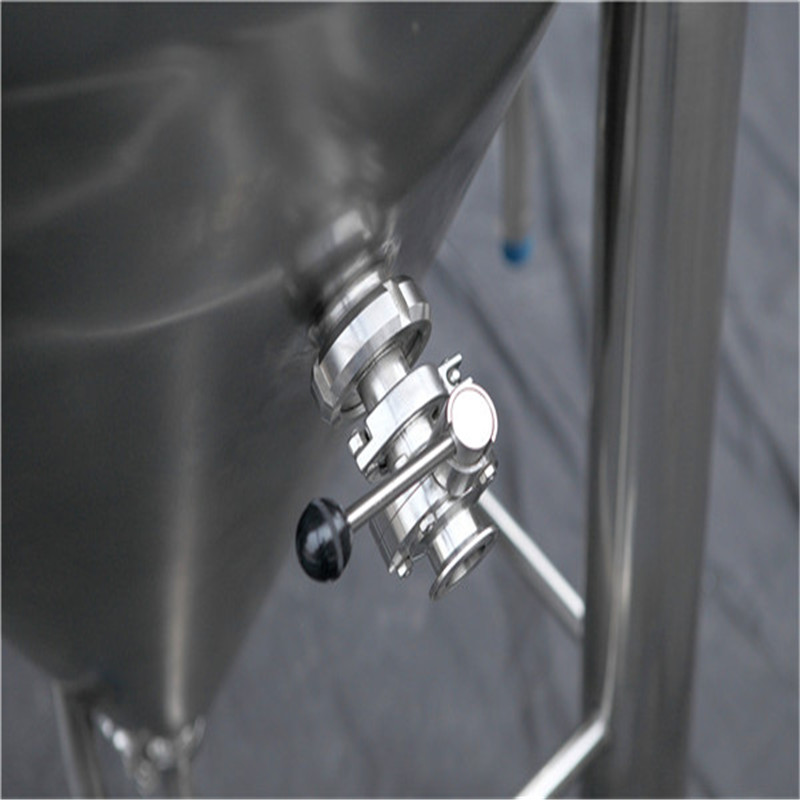

sampling valve; the bottom has a sewage outlet, the bottom of the cone is beer outlet valve.

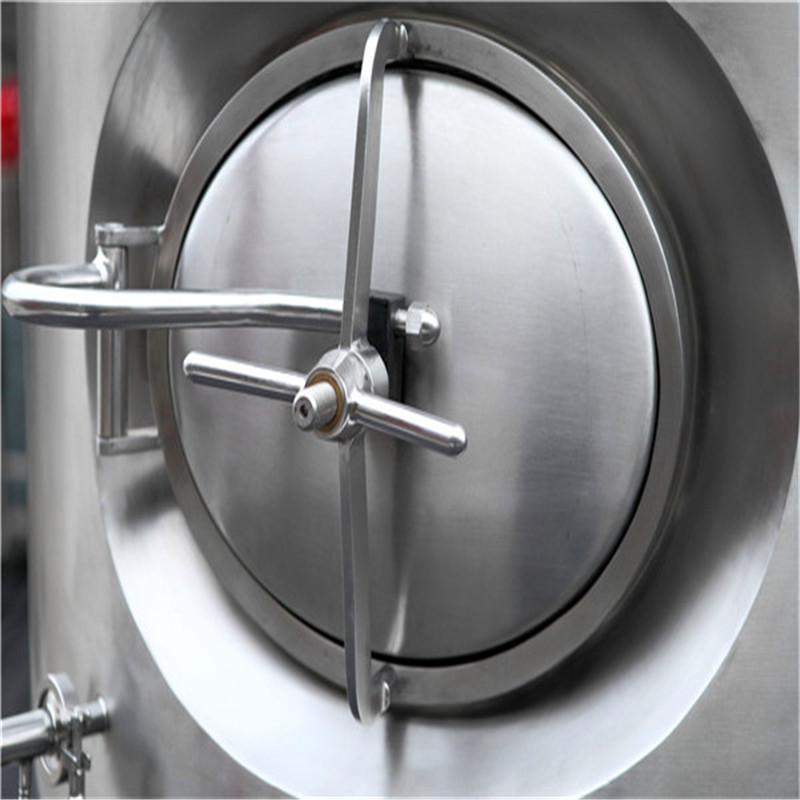

We can also offer you the side manhole.Top manhole or side manhole,it depends on your choice.
Pls don't worry about it.
Our fermentation tank inner is made of high-quality stainless steel.
The cladding can be brushing/mirror/copper.
Reasonable and safe design.
Any questions about our fermentation tanks,pls feel free to contact us.
