500L Turnkey beer brewing system mash fermentation tank from WEMAC

  • * Processing : Fermenting Equipment, Beer Brewing
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
1.WEMAC supply beer brewing system with turn-key project.
2.WEMAC provide beer equipment with free consultation,3D design,free installation,training.
3.Three years warranty for the main equipment and spare parts.
4.WEMAC beer machine brew different flavors of beer and brew several flavors of beer at the same time.
5.WEMAC beer machine has beautiful appearance, it is convenient for customer visiting.
small and medium breweries, regional breweries,bars, hotels, beer houses, restaurants, clubs, schools, laboratories, farm breweries etc.

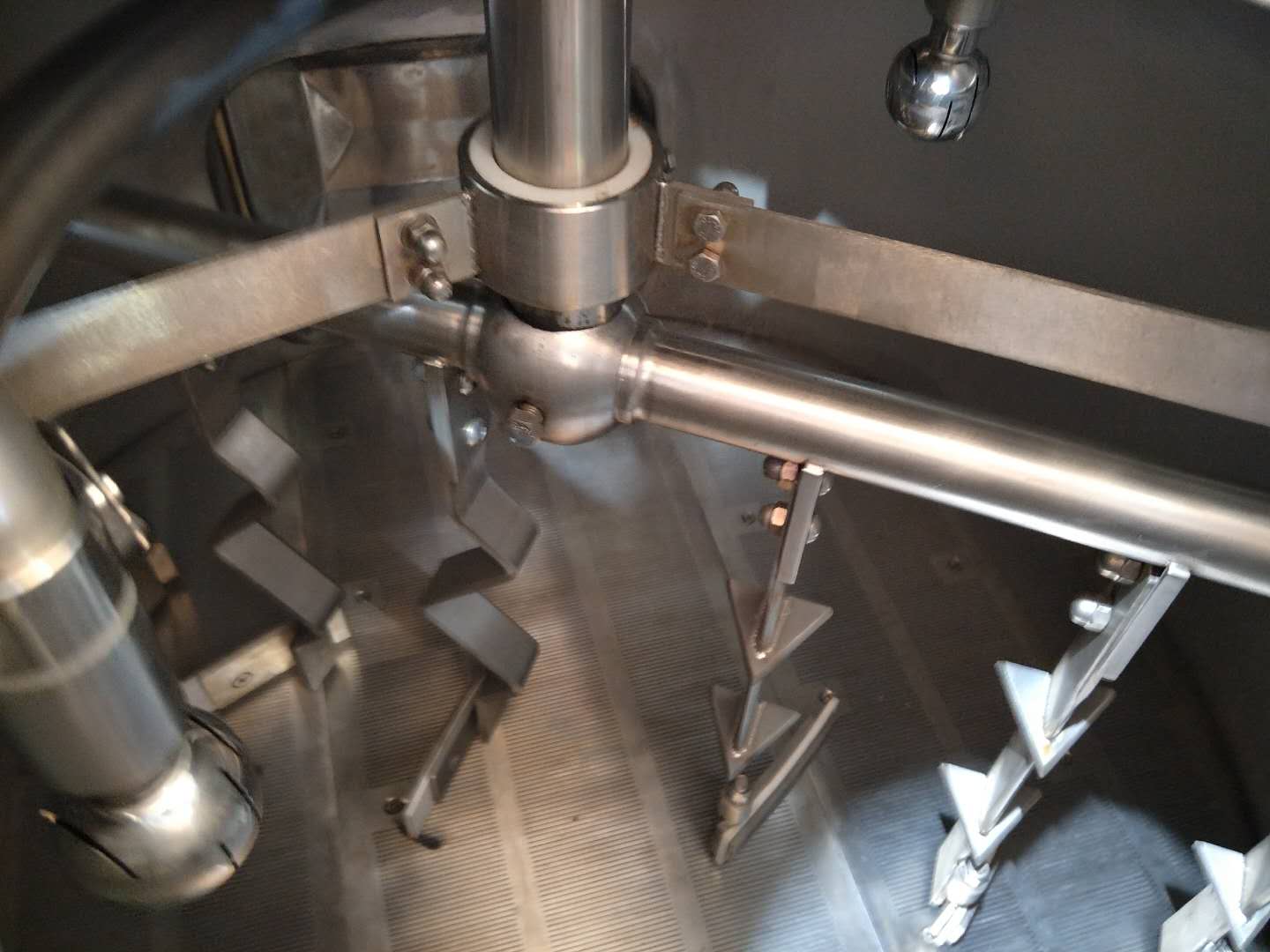

Mash rake and CIP cleaning ball in the mash tank.jpg

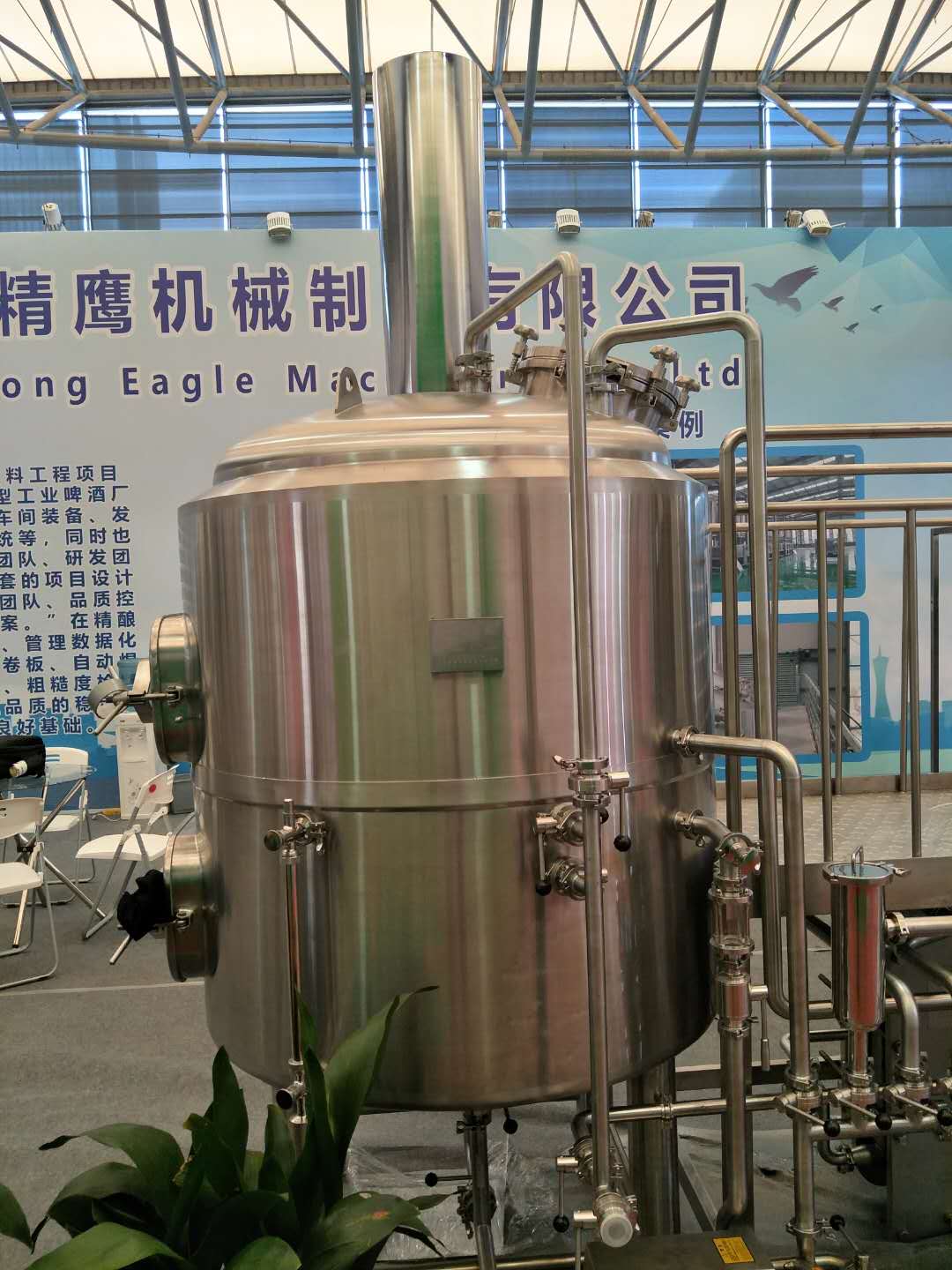

Lauter-whirolpool tun.jpg

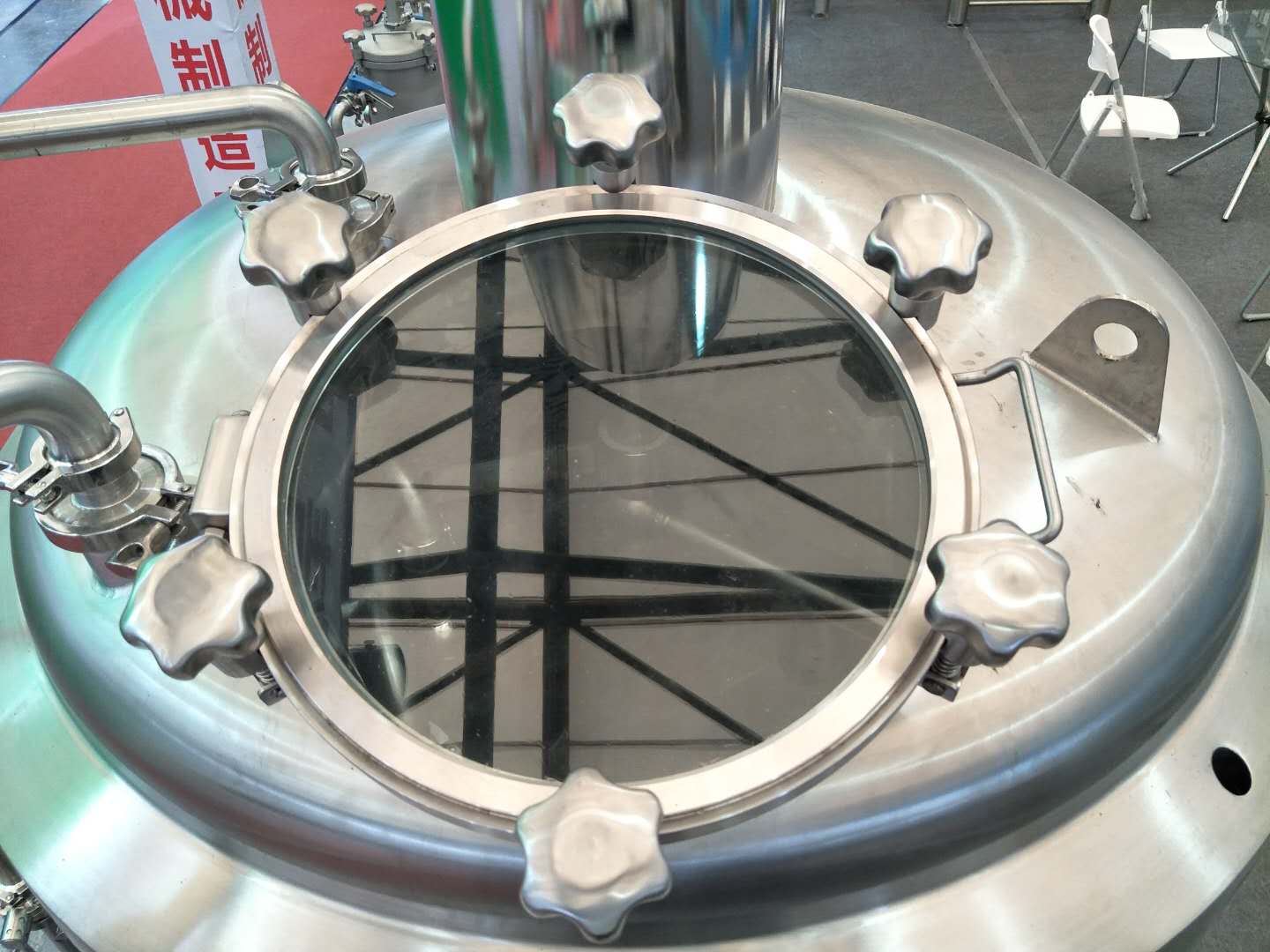

sight glass in the  top of tank.jpg

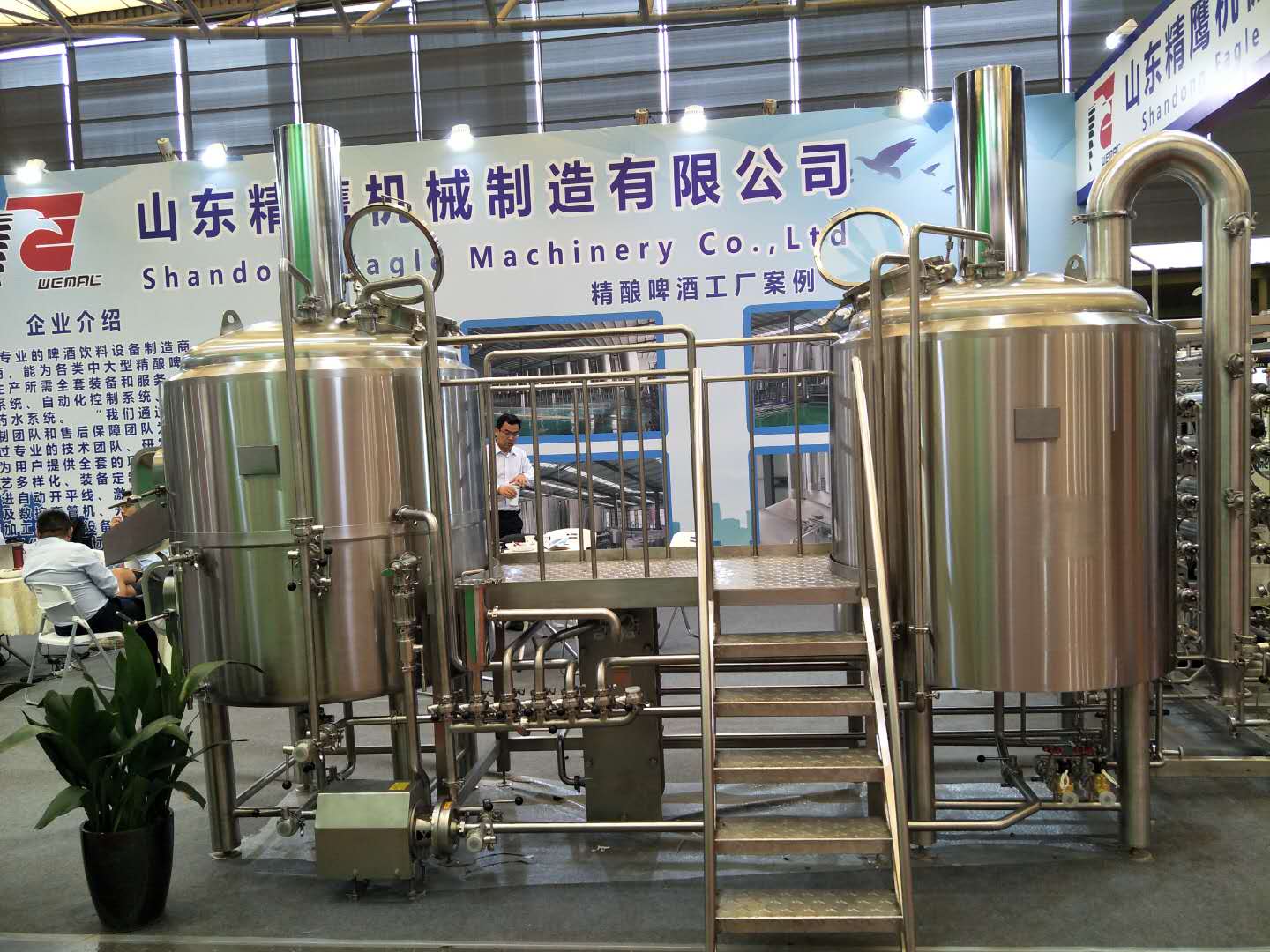

complete set of beer brewing system-Mash tank.jpg

complete set of beer brewing system-Mash tank.jpg

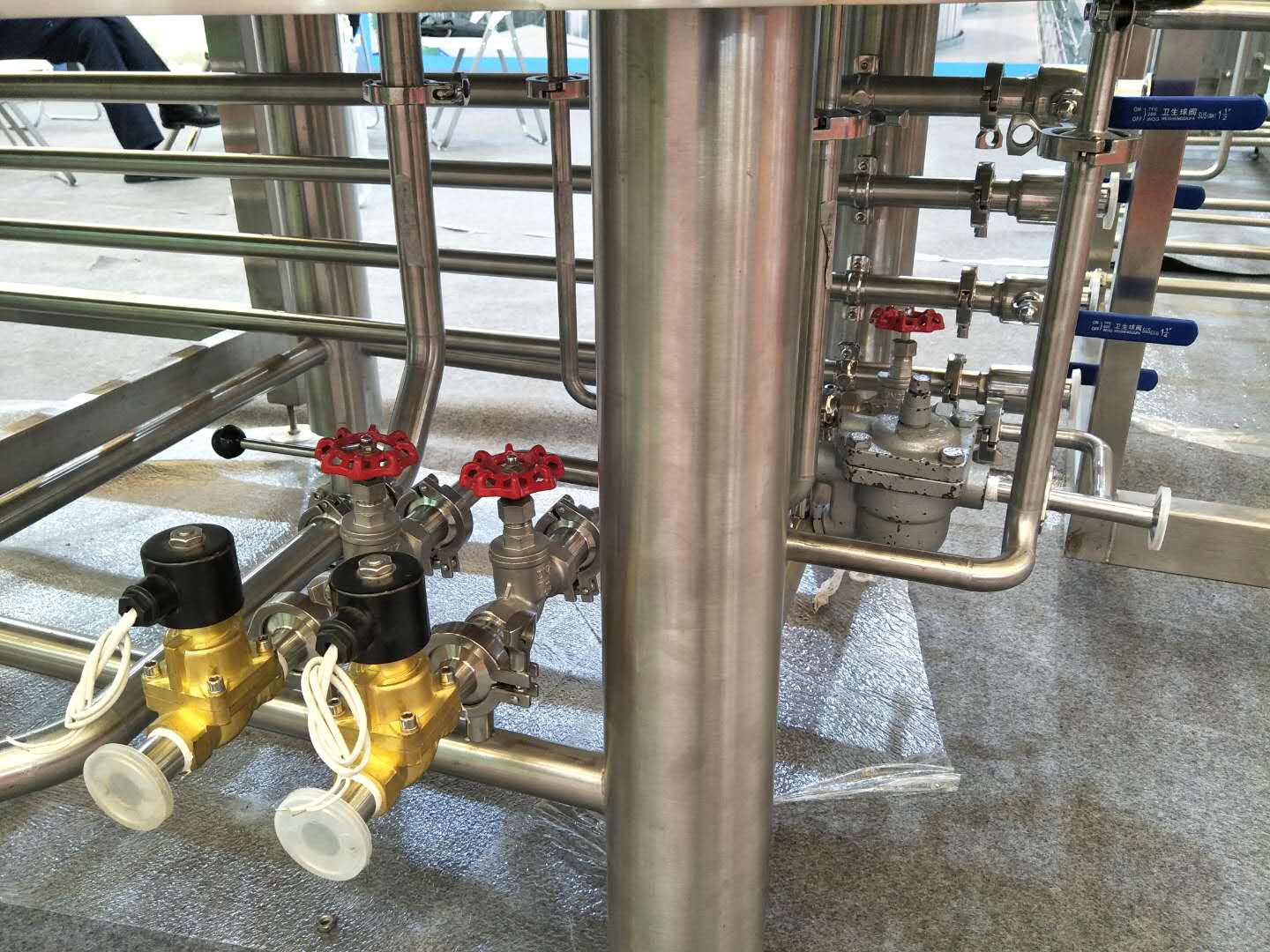

mash pipe.jpg

The two-body three-vessel mash system is the most commonly used mash equipment configuration for craft beer production. This configuration can meet any process requirements for beer production.

In particular, our company’s mash equipment is equipped with a hop filter. In beer mash production, although hop products are used more and more widely, in order to further maintain the flavors and quality of craft beer, the use of whole hops still takes a lot.When using whole hops, install a hop filter after the boiling tun, which can effectively remove the hop lees after the wort is boiled. The filtered hop lees can be added to the filter tank before the next mash wort filtration, and then combined with the lees Selling them together can improve the quality of wort and reduce waste. When using hop products (especially granular hops), the installation position of the hop filter is generally after the wort whirlpool and before the plate heat exchanger, which can effectively reduce the residual hops entering the plate to form thermal resistance and cause plate exchange blockage or reduce exchange. The phenomenon of thermal efficiency achieves the purpose of reducing labor working and improving cooling efficiency.

At the same time, our company's mash system is also equipped with an indoor exhaust device. The indoor exhaust device can discharge the secondary steam from the mash and boiling process indoors, reducing environmental pollution caused by direct emptying of the secondary steam, and also The secondary steam discharged indoors is recovered as waste heat and converted into hot water for other use, achieving the purpose of energy saving. Using the indoor exhaust device can also make the mash space no steam or dripping water, and optimize the working environment.



500L (5HL) Microbrewery Equipment product advantage:

1.WEMAC supply beer brewing system with turn-key project.
2.WEMAC provide beer equipment with free consultation,3D design,free installation,training.
3.Three years warranty for the main equipment and spare parts.
4.WEMAC beer machine brew different flavors of beer and brew several flavors of beer at the same time.
5.WEMAC beer machine has beautiful appearance, it is convenient for customer visiting.

500L (5HL) Microbrewery Equipment application scope

small and medium breweries, regional breweries,bars, hotels, beer houses, restaurants, clubs, schools, laboratories, farm breweries etc.

500L (5HL) Microbrewery Equipment basic information

Output capacity:500L(5HL)
Heating method:steam, electricity or direct fire;
Area request:50㎡
Building height requirement:3.5M
Power supply:Single Phase/ 220(110, 240…)v/50(60)Hz
3phase/380(220, 415,440…)v/50 (60)Hz


500L(5HL)Microbrewery Equipment technology configuration

Milling systemStainless steel or carbon steel malt mill
Flexible or stainless steel screw conveyor


Mash system
Material:SUS316L, SUS304,copper;
Mash & kettle& lauter & whirlpool tun are any combination;dimple jacket or dribbling for heat exchanger, rock wool insulation,TH=80-100mm,upper stirring or bottom stirring,lauter plate:milling,side or bottom vinasse discharging
Hot liquid tank for option;
Plate heat exchanger: cooling form,capacity and piping meet requirements;
Oxygenation system:oxygenation form, capacity and interface form meet requirement;
Yeast adding tank depends on the customer’s requirement;
Stainless steel working platform;
Accessories:wort pump, wort tester, hop adding device,hop filter device, saccharimeter,worst rake,CIP system etc
Fermentation system500L(5HL) / 1000L(10HL) fermentation tank
500L(5HL) / 1000L(10HL) beer brite tank
Amount depends on the customer's request
Dimple jacket or dribbling cooling
Option:dry hop mouth,CO2 filling device with titanium rod distributor,level gauge
CIPMobile or Fixed CIP
Energy systemHeating system &cooling system design capacity meet the requirement
Electric systemStainless steel electric cabinet with imported brand PLC and touch screen or spraying plastics electric cabinet with push-button
Pipeline fittingsIncluding mash line, alcohol water line and other system line,valves
Filtering and sterilization systemCandle type diatomite filter and pasteurizer

Beer distribution
To bar wine column
Keg washing&filling machine
Bottle brushing&filling machine
Can filling machine
Label machine
