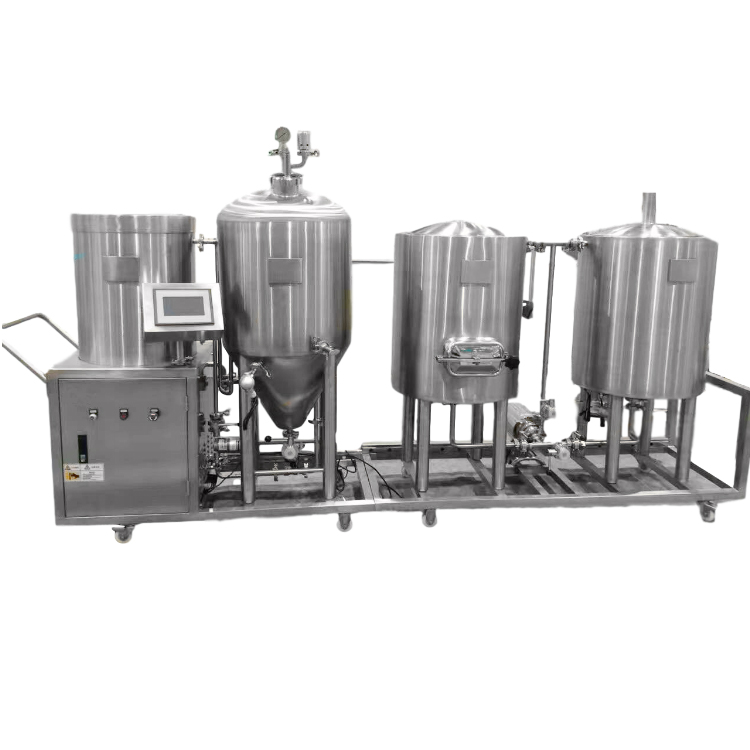

WEMAC home beer brewing equipment is a small-scale beer brewing system. It occupies a small space, has a high degree of automation, and is simple and easy to operate. The mash process is electric heating, generally equipped with two-device specifications (mash lauter tun + kettle and whirlpool tun), with ice water tank, plate heat exchanger, wort oxygenator, wort pump, etc.the fermentation process is automatically controlled by PLC, 6 fermentation tanks are generally configured according to the standard. It is a self-entertainment beer brewing equipment. The inner tank and outsourcing materials of the whole set of equipment meet the requirements of international standards. The thickness is 3mm, and the outer material is 2mm thick. The equipment is built after seamless connection, high polishing, and fine polishing. The layout, opening position and other aspects of brewing meet the operating conditions.
Equipment Specifications:50L, 100L, 200L, 300L
Equipment output: 100L/batch
Equipment power: 12KW
Production speed: 100 (kg/h)
Heating method: electric heating
Total water consumption: 0.5m3/d
Malt consumption: 20Kg
Hop consumption: 60g
1. Compact structure, small footprint, movable, convenient operation and simple maintenance

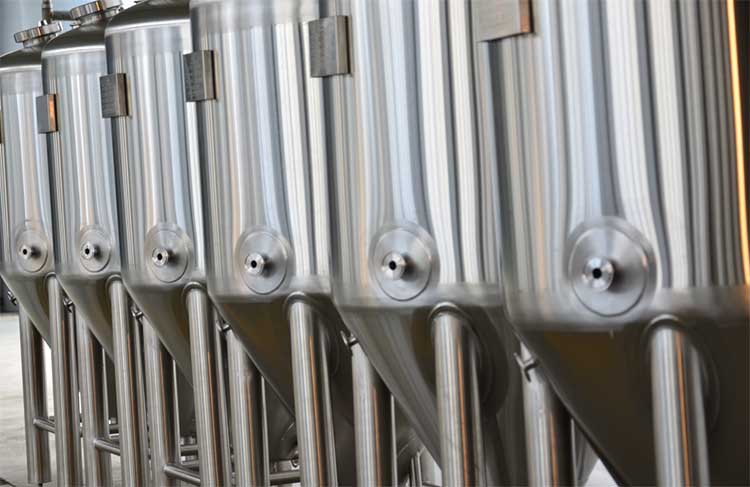

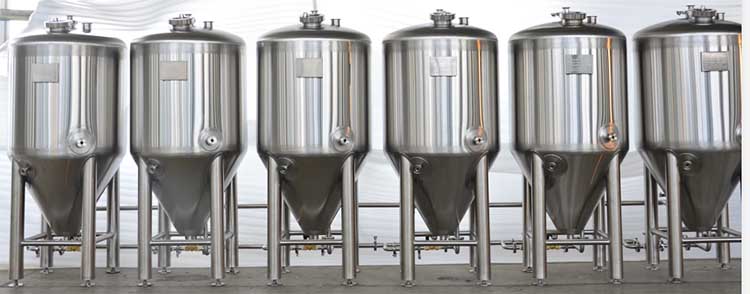

2. The fermentation tank is insulated with polyurethane, the thickness of the insulation layer is more than 60mm, and the density of the insulation layer meets the relevant standards.
3. Operation and control adopt computer industrial control system to realize automatic control or semi-automatic control.
4. All equipment pipeline connections adopt quick-installation connection, which is convenient for cleaning and maintenance during the production process.

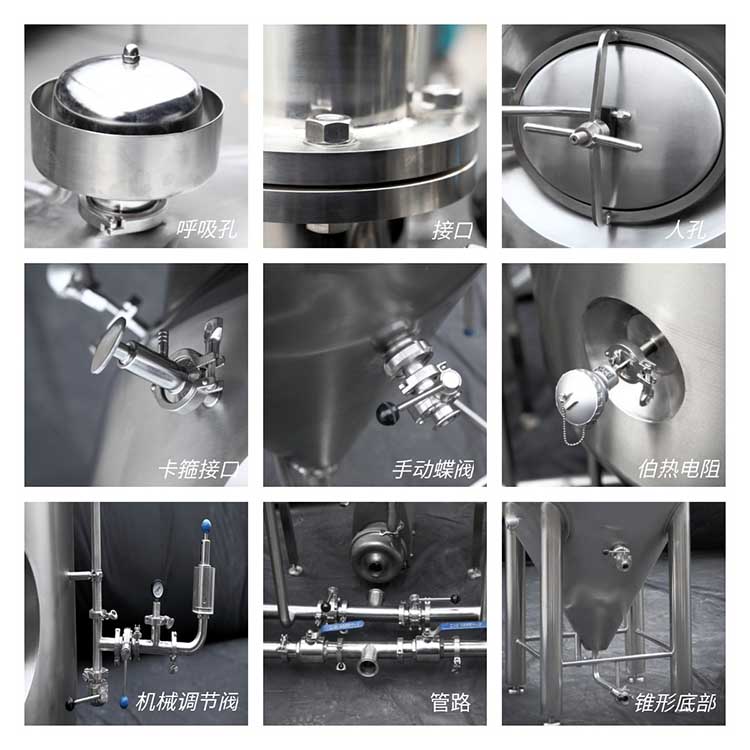

5. Fittings and valves adopt well-known domestic and foreign brands, which are durable.
6. Reasonable design, exquisite processing and beautiful appearance.
If you want to ask anything just fill in the form below and send us.
