Sugar syrup liquid solution preparation tank for sale made in China WEMAC S010

  • * Processing : Solution preparation tank
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Size : To Be Determined
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
  • * Processing : Solution preparation tank
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Size : To Be Determined
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
The solution preparation tank manufactured by WEMAC is completely in line with CP2015, EP9.0 and USP40, according to various equipment requirement for different solution preparation tank. WEMAC can satisfy various pharmaceutical companies’ requirements for solution preparation tank. Construction material is 304 and 306L stainless steel. Inner surface mechanical polishing can reach Ra. 0.4. Electro-chemical polishing can reach Ra 0.2. Exterior surface can be made in to mirror, brush, sand blasting treatment, etc.

Sugar syrup liquid solution preparation tank for sale made in China WEMAC S010





1.1 According to the customer's process, different batching tanks can be designed, which can be modularly installed to form a combined installation. .

1.2 The mixing form of the liquid mixing tank has various forms such as mechanical stirring, bottom magnetic stirring and high shear depending on the materials.





2.1 In the case of adding a weighing system(load cell) on preparation tank, all connections must be soft connect so that the weighing of the equipment is more accurate.

2.2 According to the characteristics of the materials to be delivered, it can be equipped with sanitary centrifugal pumps, shear pumps, peristaltic pumps, etc., and higher requirements can be equipped with homogenizers.

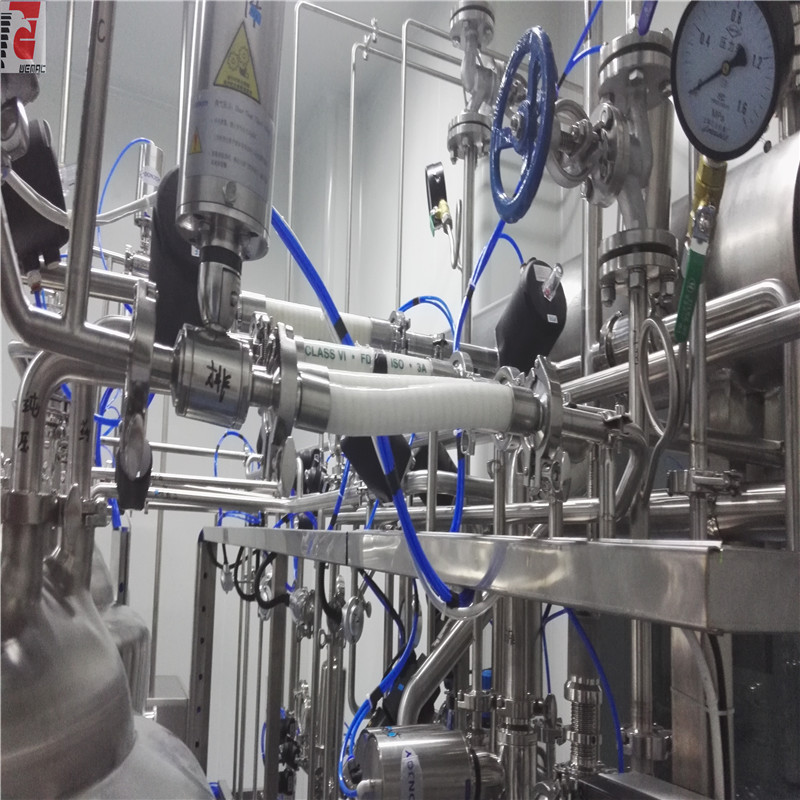

3.1 The solution preparation tank is equipped with various pneumatic valves to achieve fully automatic operation.

3.2 With manual stop valve, manual adjustment and control of boiler steam.

3.3 With a diaphragm pressure gauge, the on-site display equipment operating pressure.





4.1 All the solution preparation tank connects are stretched to meet the basic requirements of sterile preparations to prevent microbial growth and easy cleaning.

4.2 The mixing system is equipped with a double mechanical seal and equipped with a 100% oil leakage prevention device.

4.3 The structure of the mixing system is beautiful in appearance, strong in weighing ability and resist to deformation.




Send a Message

If you want to ask anything just fill in the form below and send us.

Name: Clement         time:2019-12-18 14:57:42
The quality is super. The price is competitive. The delivery is quick. Very trustworthy manufacturer.

Name: Clement         time:2019-12-18 14:57:42
The quality is super. The price is competitive. The delivery is quick. Very trustworthy manufacturer.

Name: Edgar        time:2019-09-17 09:57:17
The sugar syrup liquid solution preparation tank is very easy to operate. I will give you a Five Star review!
