Pharmaceutical use preparation tank mixing tank for sale WEMAC S011

  • * Processing : Solution preparation tank
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Size : To Be Determined
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
The solution preparation tank is equipped with sanitary liquid level sensor, spray ball, vent filter, load cell and other accessories. With the function of insulation and jacket heating, the insulation material is Glass fiber needle blanket, and the option of positive pressure and negative pressure. Pressure vessel certificate is an optional choice. Due the different characteristics of mixing liquid, the tank can be equipped with top mechanical stir or bottom magnetic stir with frequency control and sanitary seal. The capacity range is from 100L to 20000L.


Pharmaceutical use preparation tank mixing tank for sale WEMAC S011



5.1 Each ingredient solution preparation line corresponds to a preparation tank.

5.2 Control system separate control and linkage control.

5.3 The top of the tank is equipped with an integrated sight glass mirror for easy observation of material agitation.

5.4 The tank is connected to a sanitary grade sterile U-shaped tee with a sterile sampling port.

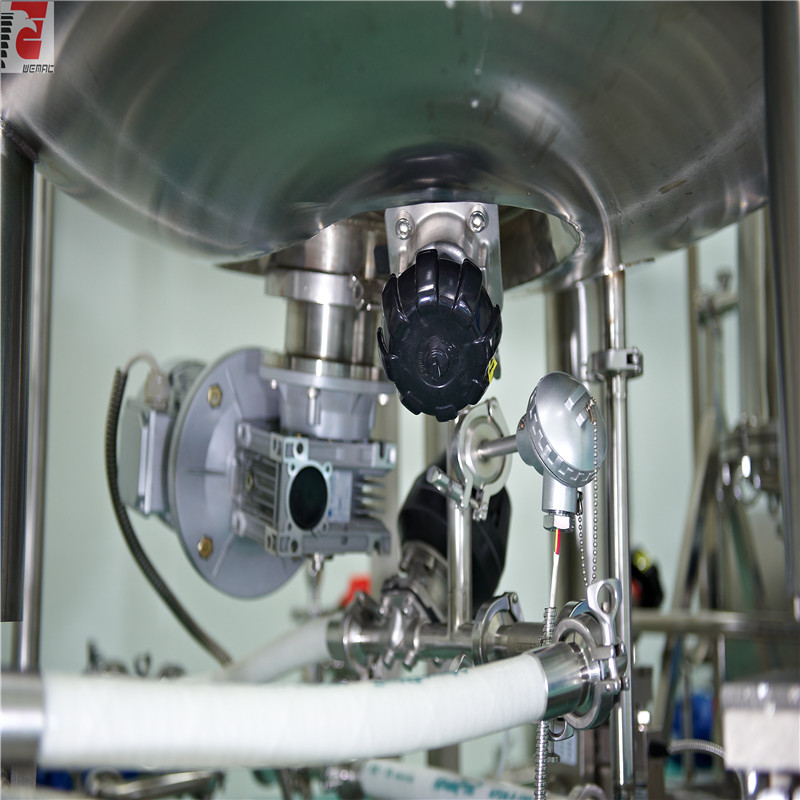

6.1 The bottom of the preparation tank is equipped with a bottom diaphragm valve.

6.2 The bottom of the preparation tank is equipped with a temperature sensor to monitor the temperature of the tank.

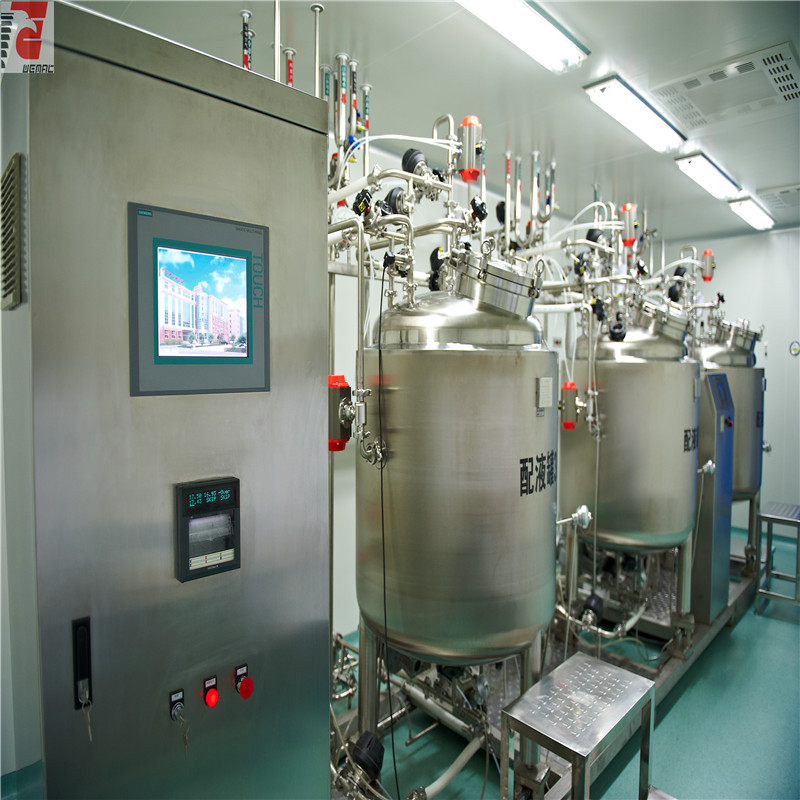

7.1 The preparation tank is installed on site as an all-in-one machine. It is controlled locally and displayed on site.

7.2 Preparation tank is equipped with electrical heating vent filter,  online steam sterilization.

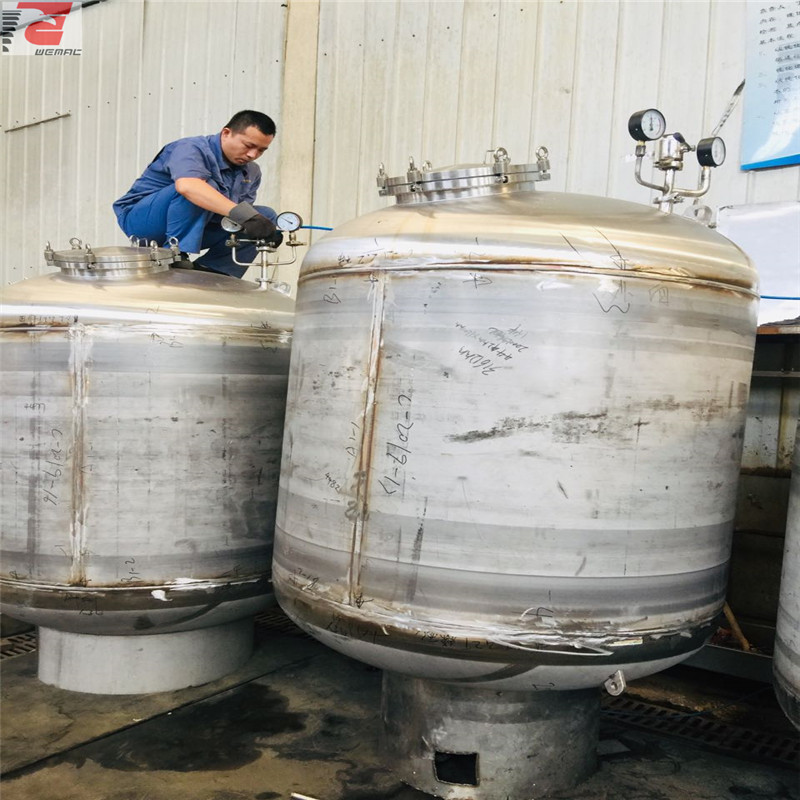

Welded tank will perform a hydrostatic test. According to the design pressure requirements, the hydraulic test is generally carried out at a temperature higher than 30% of the design pressure. The pressure holding time is 24 hours normally.
