Stainless steel dry hop addition gun for beer brewery using zxf

  • * Processing : Fermenting Equipment, Beer Brewing
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
For dissolving hop pellets and transfer to the fermenting tank though a specially designed candle in the middle of the HopGun.
The use of the green beer pump and the special design leads to low sheer force impact on the beer and guarantees higher yields than classical dry hopping techniques.
The system can be sterilized easily by putting it in CIP line.
Next: No article.

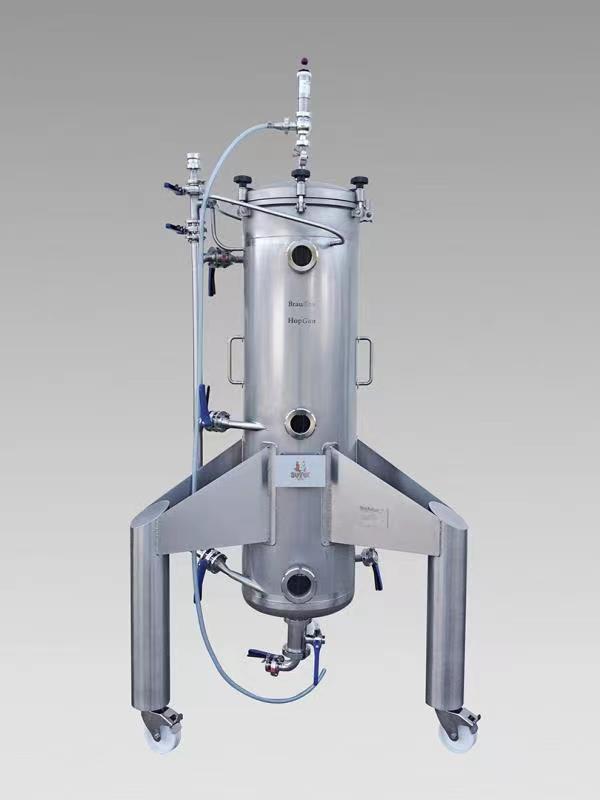

hop gun-hop pump-stainless steel hop gun.jpg

Working principle:

For dissolving hop pellets and transfer to the fermenting tank though a specially designed

candle in the middle of the HopGun.

The use of the green beer pump and the special design leads to low sheer force impact on the

beer and guarantees higher yields than classical dry hopping techniques.

The system can be sterilized easily by putting it in CIP line.

Hop filling: Due to large man way on top for comfortable access

Total Emptying: Pushing out with CO2 or N2 possible

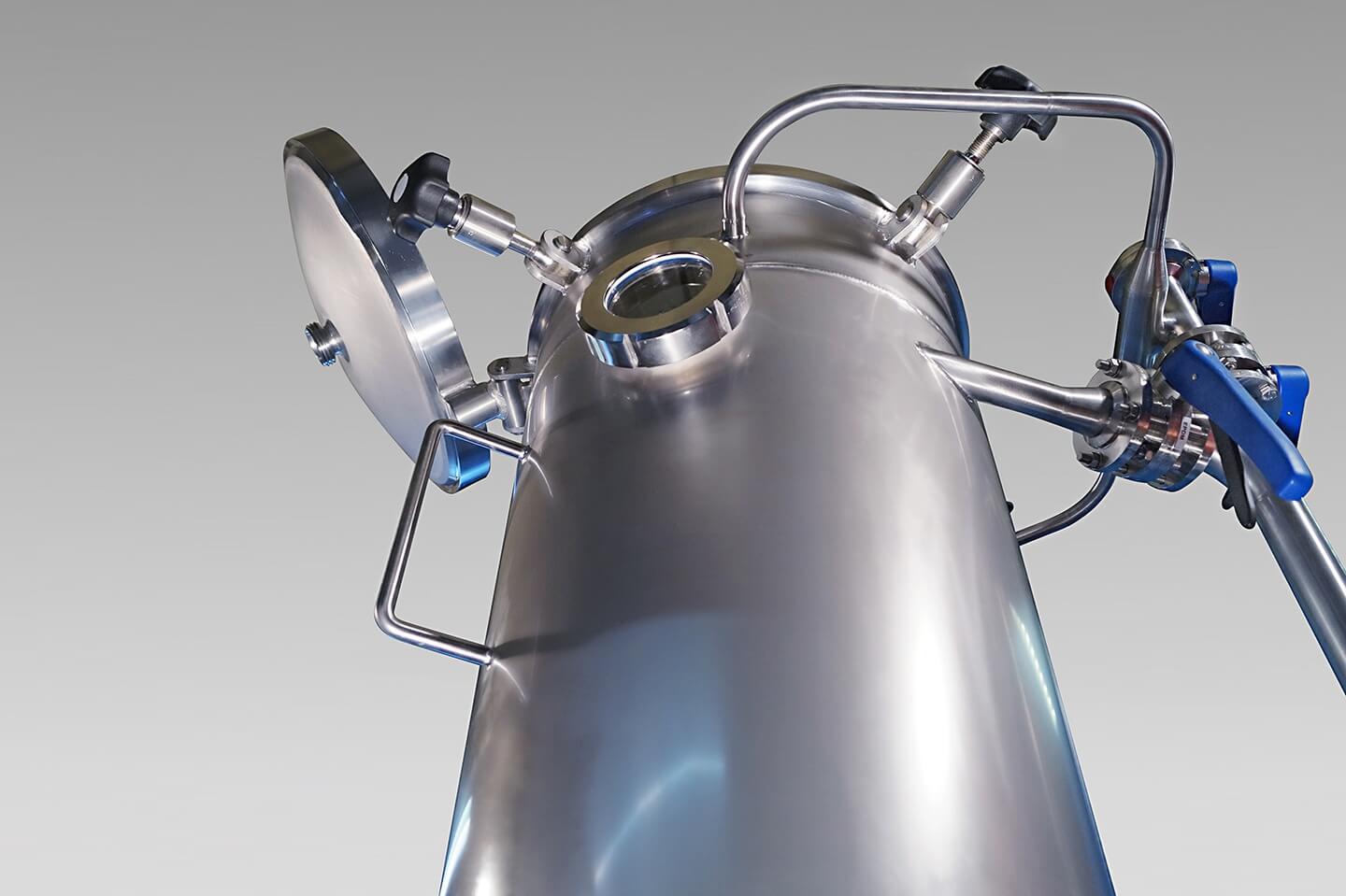

hop-hops-hop gun-hops gun.jpg

Technical data:

Total height: approx. 2400 mm Material: stainless steel (304)

Empty weight: approx. 180 kg Beer inlets: on the side walls with butterfly valve DN 32

Beer outlet: through center special candle with butterfly valve DN 40 (double outlet)

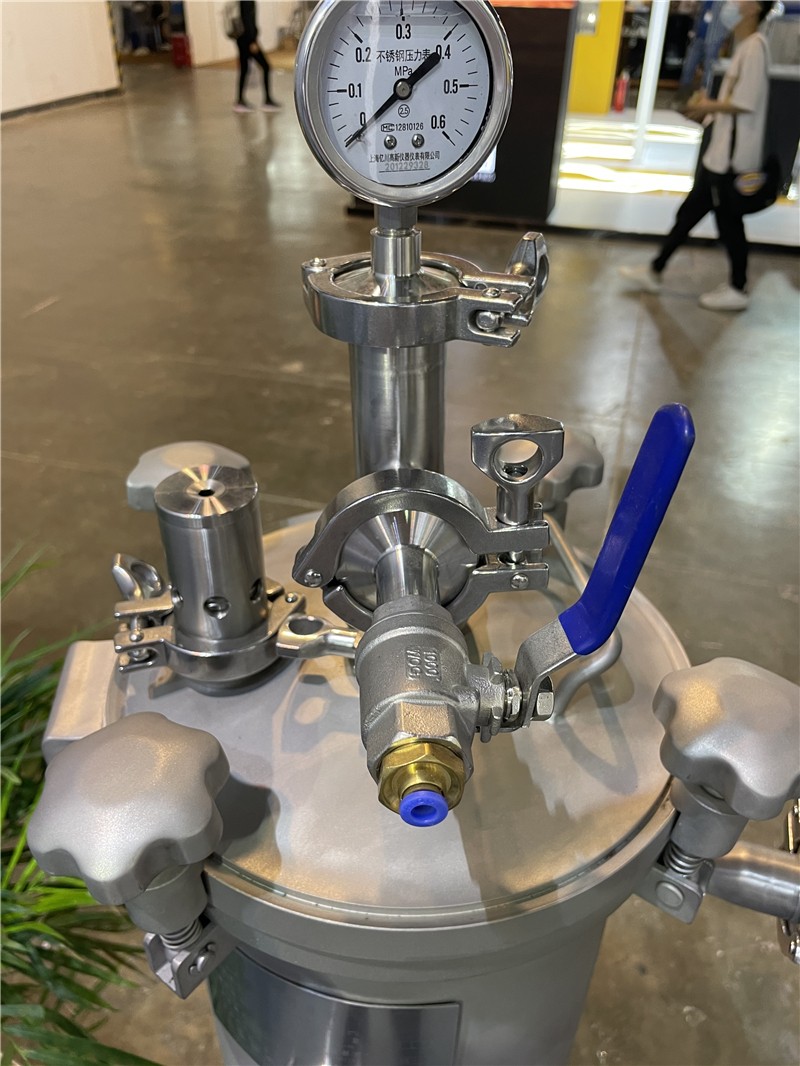

hop gun-sus-stainless steel-dry hop gun.JPG

Bottom: Shape: "klöpper" design

Material: stainless steel (304)

Weld finish: ground

Side walls: Side shell design: cylindrical shell

Material: stainless steel (304)

Weld finish: ground Sight glasses allowing observation of dissolving process

Number of viewing glasses: 2 Top: Man way Stainless steel (304)


Top: Man way Stainless steel (304)

Cleaning: Spray balls with CIP connection piped to operator level
