Pipe and equipment disinfection use pure steam generator for sale China WEMAC S014

  • * Processing : Pure steam generator
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Size : To Be Determined
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
  • * Processing : Pure steam generator
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Size : To Be Determined
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
Pure steam generator Characteristics: 1. Structural: both the evaporator and the separator are double tube plate type. 2. Separation device: the feed water enters the equipment will under three stage separation that is film evaporation, gravity separation and spiral circumferential flow. 3. Material: The parts that contact with the feed water, pure steam and the pure steam condensate water should be all adopted with SS316L. 4. Automatic welding: For the connection of the pipeline and the spare parts, use the arc welding to protect the automatic welding track, to ensure the welding quality. 5. Three-dimensional elbow: Making stainless steel pipe directly tensile bend in the pipeline as far as possible, avoid welding. 6. Insulation: Both the separator and pre-heater are adopted with glass fiber needle wire mat, which is a new type thermal insulation material. The insulation effect is 30 times better than traditional material. 7. Surface polish: electro-chemical polish is adopted t

Pipe and equipment disinfection use pure steam generator for sale China WEMAC S014

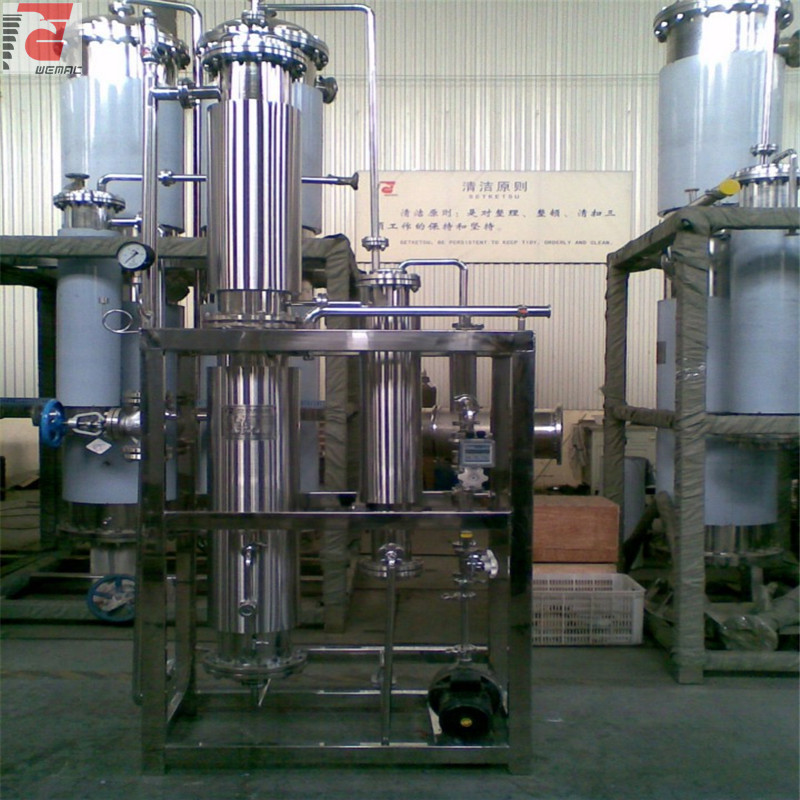

1.1 Pure steam generator consists of five parts: one evaporator, two preheaters and two pipeline condensers.

1.2 The above five parts can be a single tube plate structure or a double tube plate structure.

1.3 PLC + touch screen automatic control, the main electrical part is Siemens brand.

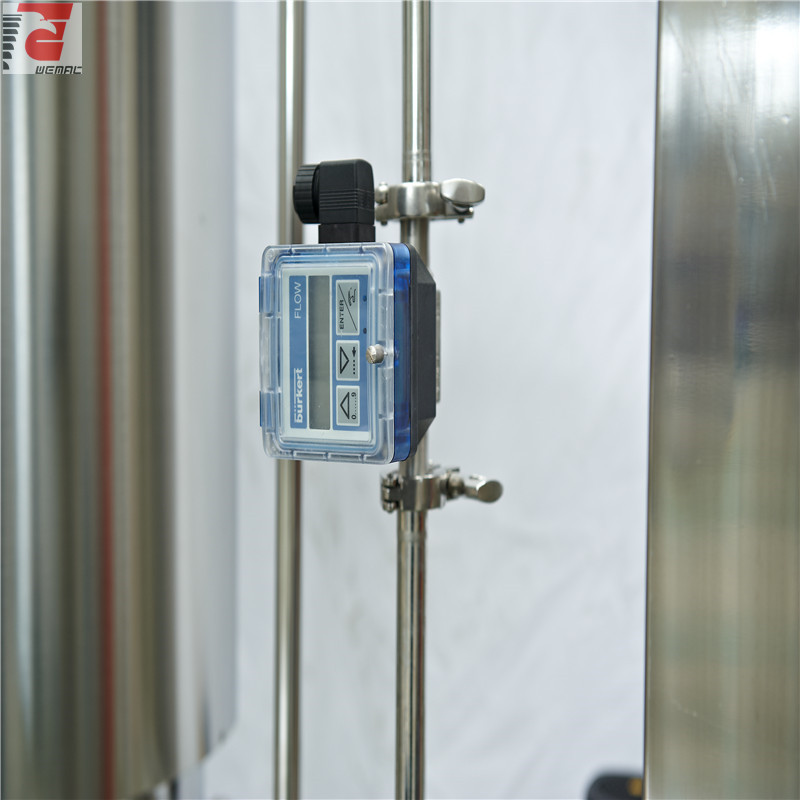

2.1 With the online flow sensor of Germany Burkert, realizing automatic online monitoring of water.

2.2 According to the requirements of steam pressure, steam production and temperature, the feed water flow rate is automatically adjusted.

2.3 The flow value can be displayed on the table or on the sensor.

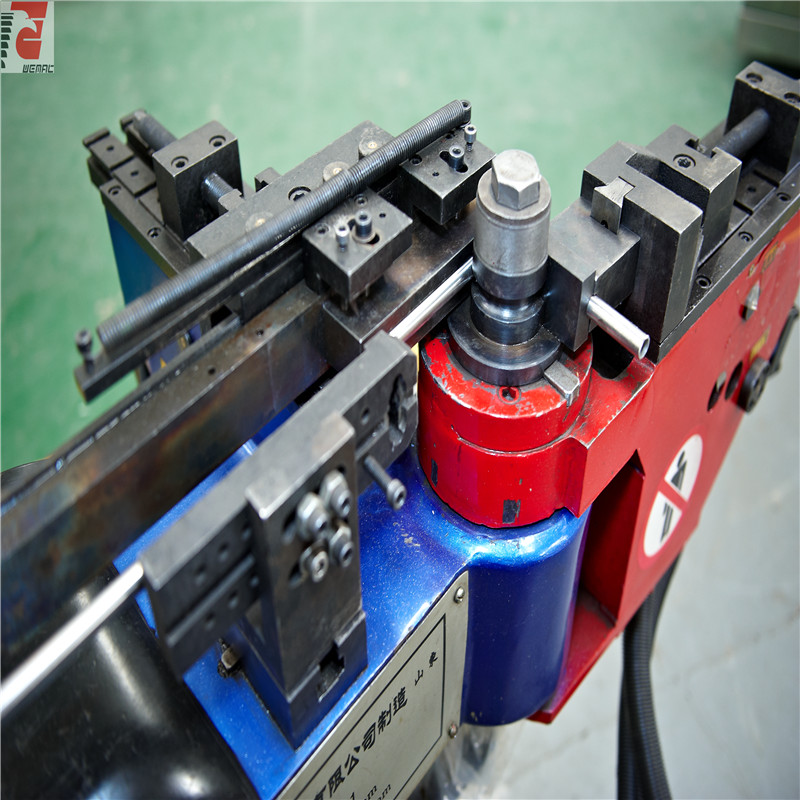

3.1 Equipped with automatic pipe bending machine, automatic bending, reducing welds and elbows.

3.2 Each connecting pipe is basically a bent pipe connection.

3.3 Improve product quality and reduce the source of microbial growth.

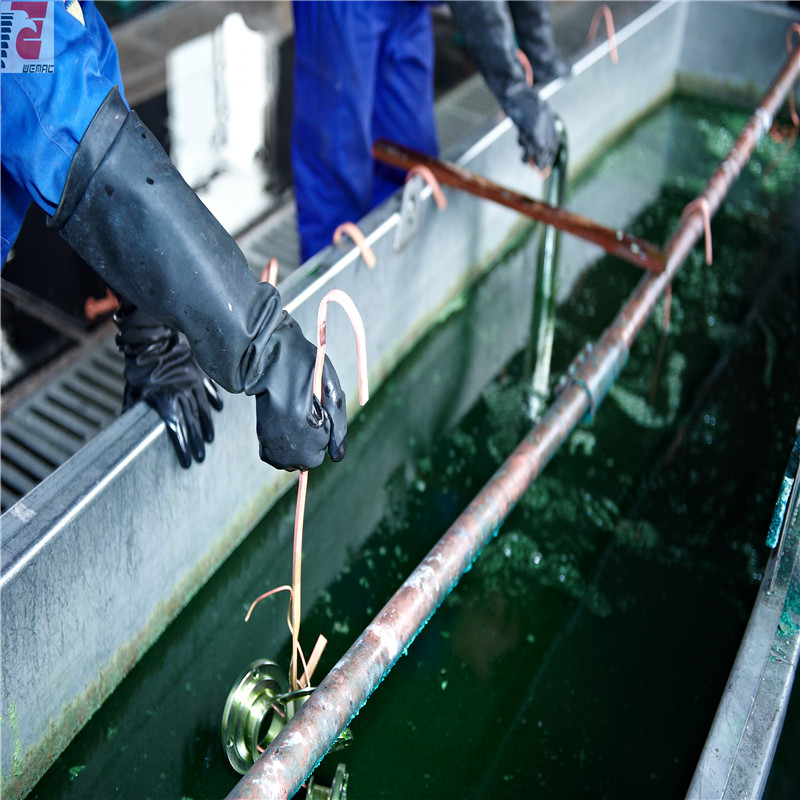

4.1 WEMAC is equipped with an electrical chemical polishing workshop.

4.2 After all the stainless steel pipes are welded, the whole process is electrical chemical polished, especially the inner surface of the pipe.

4.3 All cylinders, tube sheets, flanges and other accessories must be electrical chemical polished.

4.4 Electrical chemical polishing not only improves the polishing accuracy and appearance quality of the product, but also prolongs the service life of stainless steel.
