Full automatic Pure steam generator pharmaceutical for sale WEMAC S001

  • * Processing : Pure steam generation, clean steam generator
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Size : To Be Determined
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
Pure steam generator
CZQ series pure steam generator of WEMAC adopts purified water to produce pure steam by heating industrial steam. It is mainly applied in sterilization of pharmaceutical equipments and all kinds of craft production line (pipeline and storage tank etc.). The condensed water of the produced pure steam meets the requirement of CGMP (CP2015), USP39 and EP9.0.

Full automatic Pure steam generator pharmaceutical for sale S001

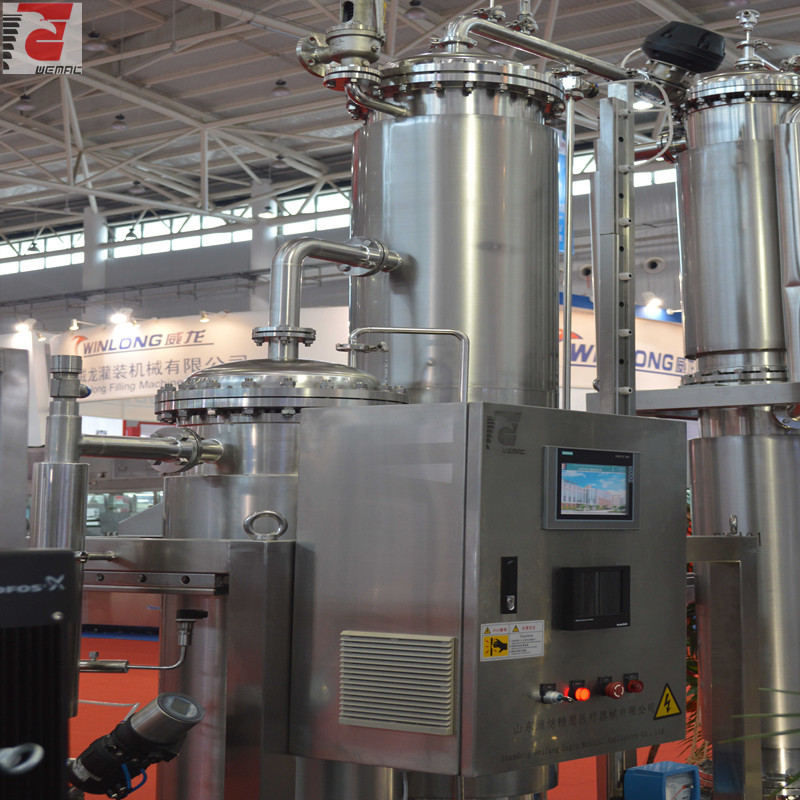

The pure steam generator manufactured by WEMAC consists of evaporator, condenser and pre-heater.

It is heated by boiler steam to produce pure steam. The pure steam is piped to the point of use to sterilize the target equipments.

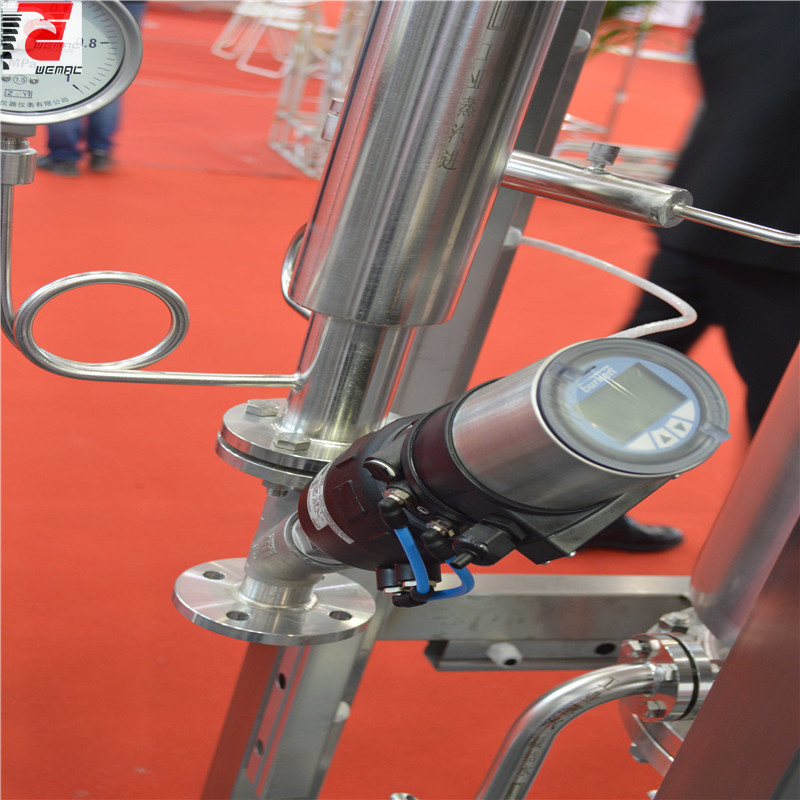

1. The boiler steam inlet automatic control PID control valve

2. The brand is Burkert Germany, with stable quality.

3. Automatically adjust the steam inlet air volume of the boiler according to specific parameters such as pressure, temperature and water output.

4. The relevant data of the entire steam can be transmitted to the touch screen through the signal line and displayed online on the touch screen.

5. the installation method is flange connection, easy to install, relatively safe.

6. The steam pipeline is insulated to avoid scalding the operator.



pure steam generator pharmaceutical.png

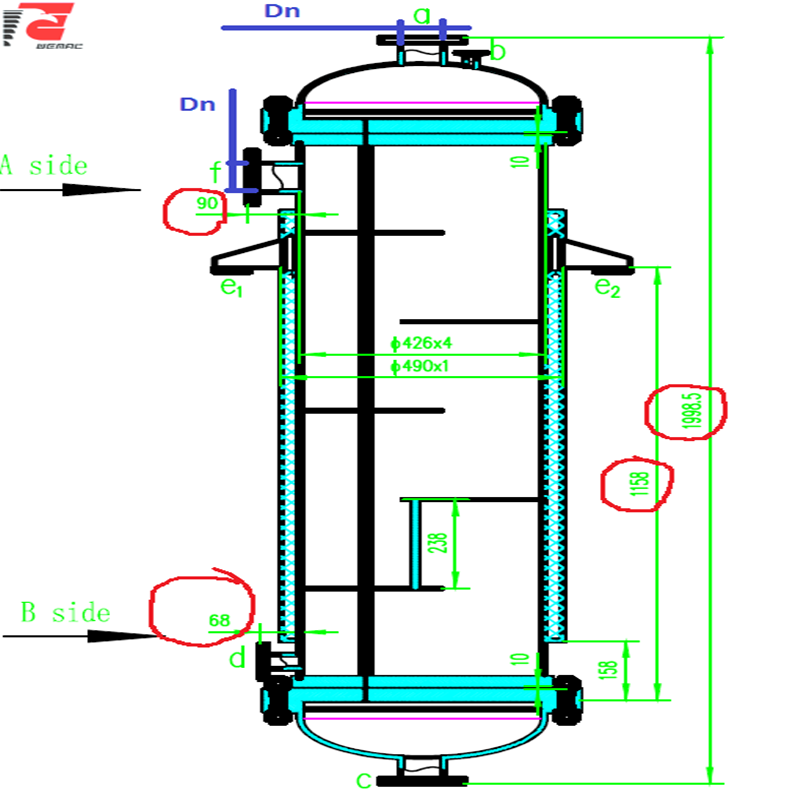

1. The main core component of the pure steam generator is the evaporator.

2.The evaporator is a double tube plate structure, which avoids cross contamination of pure steam after the water leakage.

3. The heat exchange tube in the evaporator is a sanitary horizontal seamless steel pipe of 10*0.8, with high heat exchange efficiency.

4. The evaporator is entirely subjected to electrolytic polishing, especially the inner wall of the evaporation tube.

5. The main welding part of the evaporator is welded by pipe plate automatic welding.



pharmalab pure steam generator.jpg

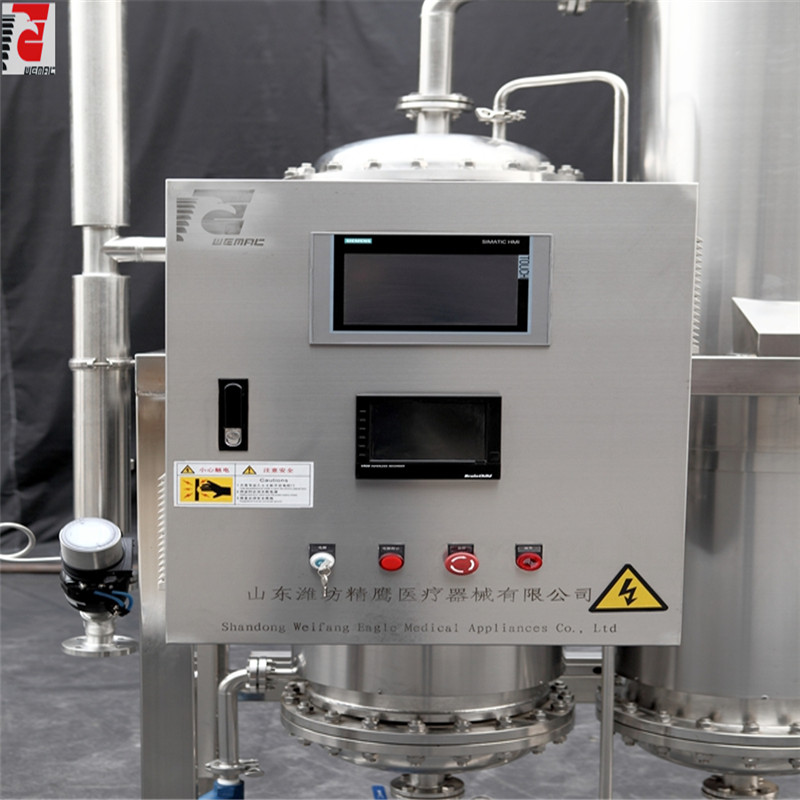

1.     The pure steam generator implements PLC+ touch screen automatic control.

2. PLC and touch screen all use Siemens brand, globally common use can achieve timely after-sales service.

3. The electric control box is made of 304 stainless steel, which is attractive and durable.

4. It is equipped with sound and light alarm.

5. The electric control box is equipped with a fan to cool down the overall operating temperature of the electric control box.
