Pharmaceutical sanitary double tube and sheet heat exchanger WEMAC S005

  • * Processing : Fermenting Equipment, Beer Brewing
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Size : To Be Determined
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
1. High efficiency and energy saving
2. All stainless steel production, long service life, up to 20 years.
3. The layered flow is turbulent, which improves the heat exchange efficiency and reduces the thermal resistance.
4. Fast heat exchange, high temperature resistance and high pressure resistance.
5. Compact structure, small footprint, light weight, convenient installation and saving civil construction investment.
Previous: No article.

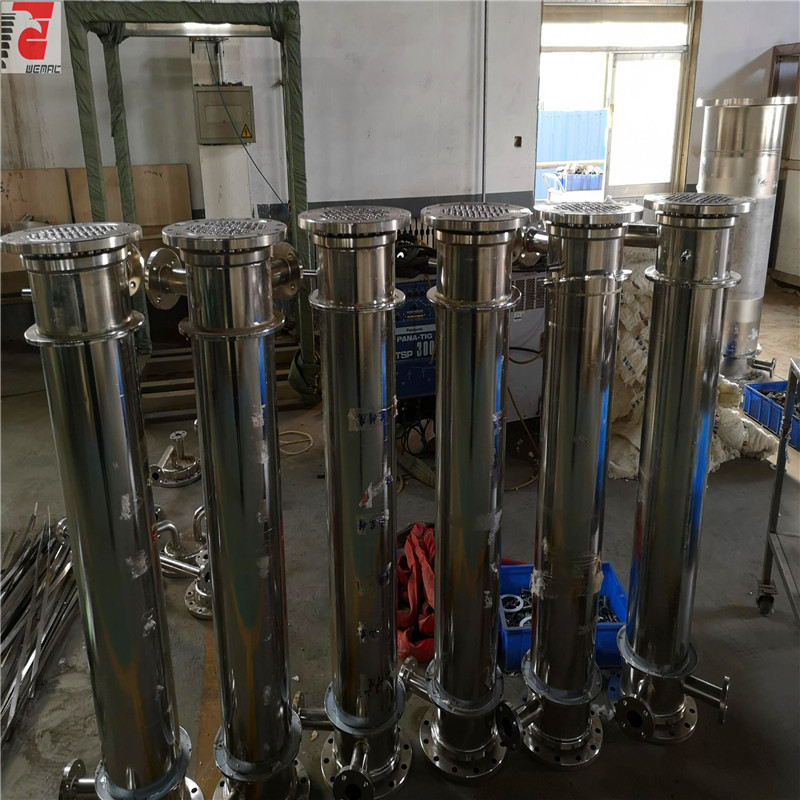

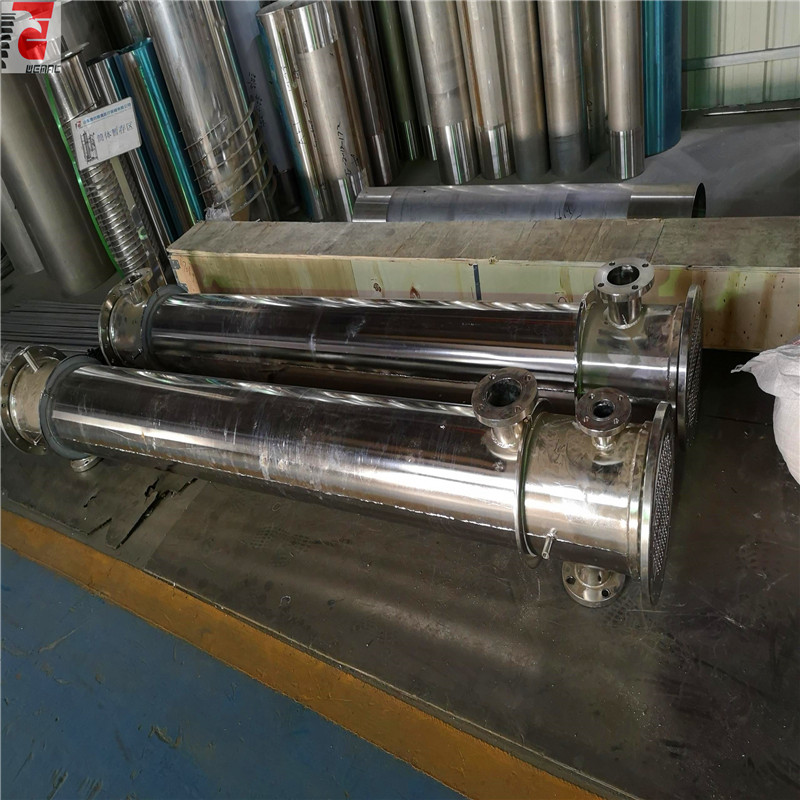

Pharmaceutical sanitary double tube and sheet heat exchanger WEMAC S005



1.1 The tube and sheet heat exchanger is designed according to the specific technical parameters.

1.2 The heat exchanger can achieve two functions of heating or cooling.

1.3 The heat exchanger has two structures: single tube sheet plate or double tube sheet plate.

1.4 The heat exchange tube in the heat exchanger is sanitary level clean tube.



2.1 The heat exchanger can be used in purified water systems, water distribution systems of purified water, water for injection system, etc.

2.2 It includes cooling for each user point.

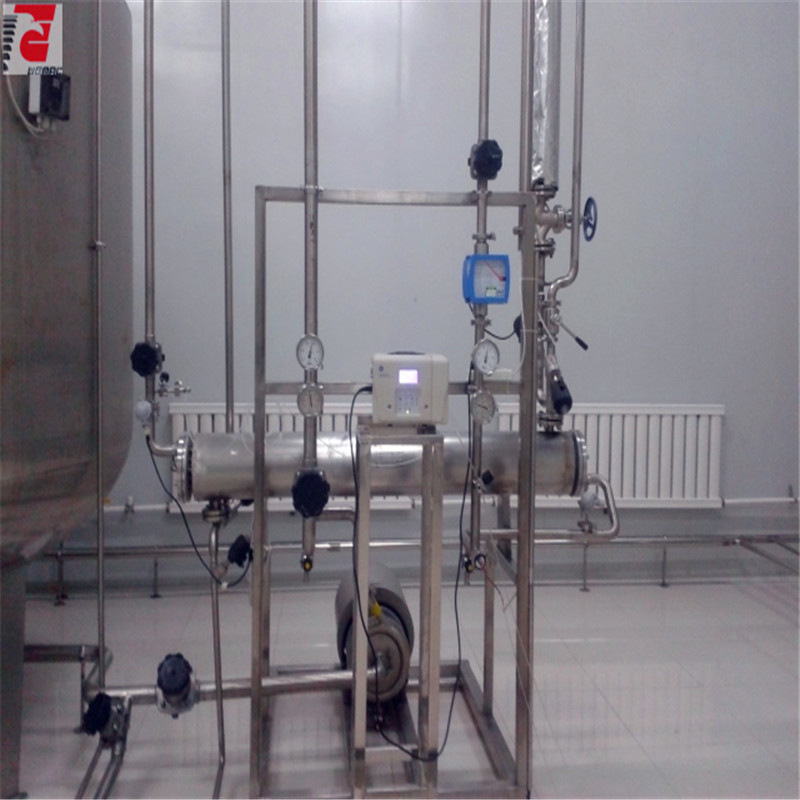

2.3 It can be installed horizontally or vertically.



3.1 Heat exchanger with insulation.

3.2 The connection between the heat exchange tube and the tube sheet of the heat exchanger is first expanded by the expander and then well-welded.

3.3 After the overall heat exchanger is welded, the whole heat exchanger and interior surface of it will be under electro-chemical polishing.



4.1 Tube and shell heat exchangers can be equipped with one or more units on the distribution system.

4.2 Each heat exchanger is equipped with a hydrophobic device and the brand is Spirax Sarco.

4.3 It can be equipped with a regulating valve to automatically control the steam of the boiler as much as possible, so as to achieve the reasonable control of the heat exchanger.

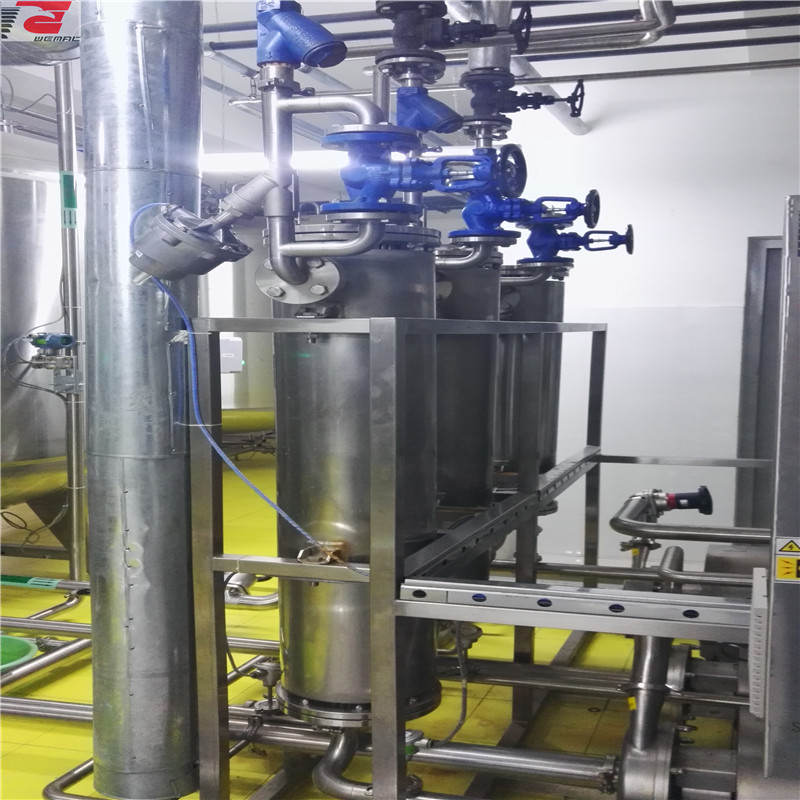

4.4 The heat exchanger can be installed on a bracket by the module method, which reduces the installation space, convenient to operate, and saves the cost of installation.
