We are a supplier and manufacturer that provides a complete set of beer brewing system solutions. export@wemac.cn

Mash system and brewhouse equipment for sale WEMAC H010

  • * Processing : Fermenting Equipment, Beer Brewing
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Size : To Be Determined
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
Brewhouse mash system is referred to special tank, tun, copper, boiler, slot and relative devices, with mashing, lautering, boiling and whirlpool function. The system is generally composed of mash cooker, mash kettle, lauter tank and filtration slot, boiler, whirlpool tank and sediment slot, temporary storage tank and slot, spent grain vessel, brewery water tank, hot water tank, heat exchanging device, energy recovery device, wheat juice negative pressure evaporating energy saving system and so on. The complete mash system is the pro process of the whole beer brewing process. In this process, malt material is processed step by step and finally becomes malt juice in liquid form. Protein is turned into amino acid, and starch is turned into carbonhydrate in this mash process.

Mash system and brewhouse equipment for sale

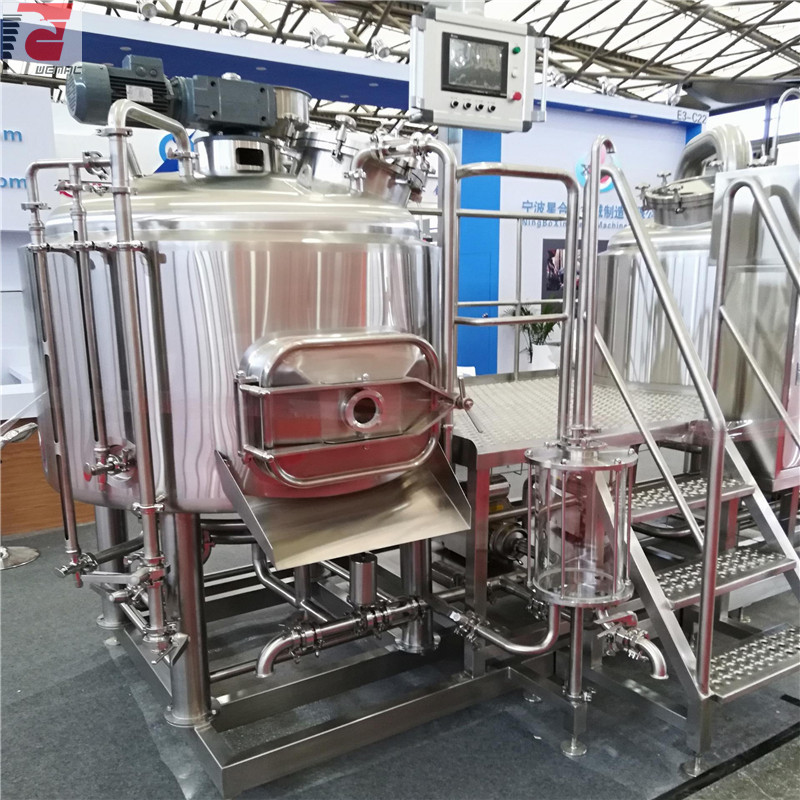

brewhouse equipment.jpg

Mash tun is used in craft beer production and industrial beer mass production. The different is that beer plant used industrial mash tun is much bigger in size. While mash copper is mostly used in big beer brewery plant for industrial beer mass production. In mash tun, malt is processed and turned into malt liquid form. In mash copper, the feeding material is starch or smashed rice, and the raw material is finally turned into starch plaster and starch liquid.

Dimple plate jacket is used in mash equipment tank body to realize heat conduction and energy recycling. Complete automatic temperature control system is adopted to make sure temperature is adjusted accurately and timely in mash process. The blending and stirring devices are controlled by excellent smart and changing frequency suspending rotary speed adjusting system. This can greatly and effectively improve enzymes activity and performance, to ensure beer is rich in taste and nutrition.

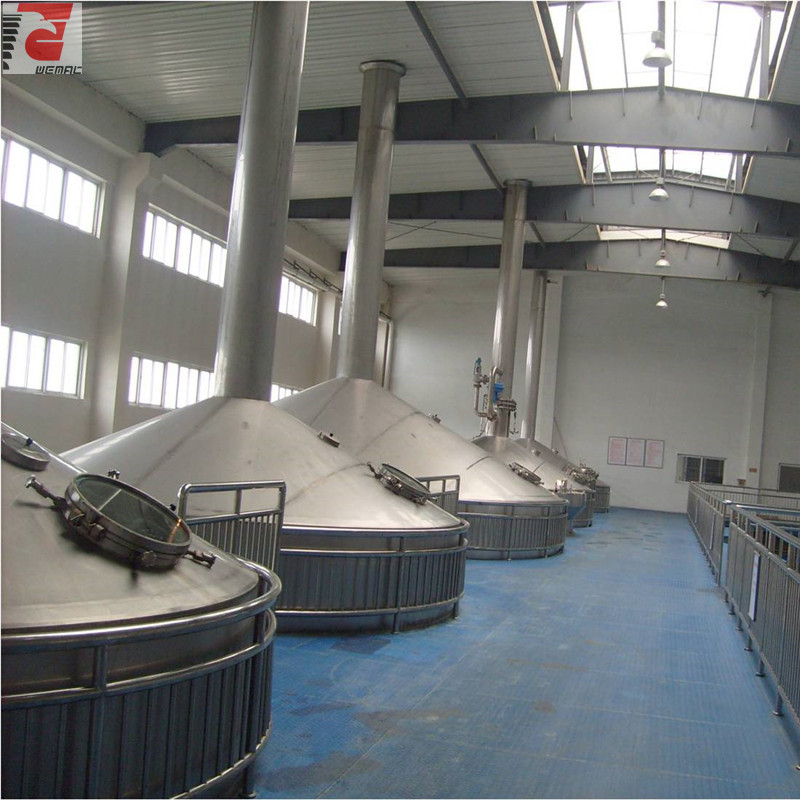

brewhouse equipment for sale.jpg

Lauter tank is used for filtration in the whole mash process. It is mainly composed of tank body, special raker, motor and controlling system. In this process, most smashed malt fiber, peel and other solid waste is separated and discharged from malt liquid and water. Small portion of carbonhydrate and protein that is sticky and insoluble in water is also removed from malt liquid. The malt liquid is almost clean with little foreign matter by filtration process. Then the malt liquid with soluble carbonhydrate and protein is conveyed to boiler for next process.

WEMAC self designed professional raker works with automatic control rising and falling system. The whole system works together in uniform, in charge of blending, mixing and filtration process. The advanced technique and structure makes sure homogeneous and stable blending and discharging of material. It greatly improved lautering speed and production efficiency, with good malt juice appearance. WEMAC self developed raker and blending and stirring devices, in company with speed adjustable auto controlling system, fully realizes easy operation, maintenance and low cost in lautering process.

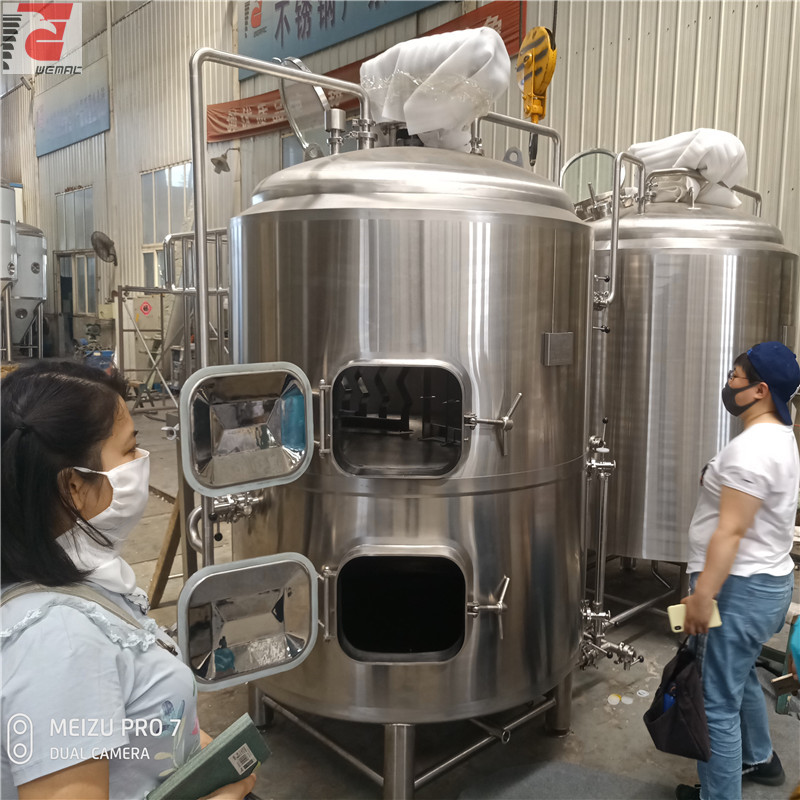

mash system.jpg

Boiler is the equipment used in boiling process. The malt juice fluid is boiled to required concentration during this course. In the same time, insoluble protein and other hot concretion matter is formed in boiler. Hops need to be added for several times according to required sequence in this course, to form different flavor needed.

WEMAC applies advanced boiler in body high pressure and boiling technique, and adjusts recycling mixing technique. These technique realizes protein insoluble matters forming and separating from liquid efficiency. In the same time, it increases temperature rising speed and keeps boiling temperature homogeneous, in balance and uniform. This can ensure malt juice boiling quality, and prevent denaturation of insoluble protein matter.


brewhouse equipment manufacturers.jpg

The whirlpool tank is used for sediment and separation of insoluble concretion that formed in the former steps. The insoluble concretion is formed from smashed malt, hops, fibers, protein and many other kinds of matters.

The whirlpool tank is special designed by WEMAC engineers. It is of most efficient structure accompany with professional devices. Big diameter and height ratio, slowed down whirlpool speed, these ensure hot concretions forming and sediment efficiency. Hot concretion storage tank is adoptable for higher efficiency and reducing pollution.


WEMAC equipment advantages.jpg


Send a Message

If you want to ask anything just fill in the form below and send us.

Name: Benjamin         time:2019-10-18 10:07:13
It is very high-quality mash system and brewhouse equipment. The weld is smooth. The price is reasonable.
