Brewhouse beer mash system Chinese supplier

  • * Processing : Fermenting Equipment, Beer Brewing
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
The mash system of brewery refers to the special tank, barrel, copper, boiler, tank and relevant equipment with mash, saccharification, boiling, swirl and other functions. Generally, the system consists of malt pulp cooker, mashed potato kettle, pure tank and filter tank, boiler, whirlpool tank and sediment location, temporary tank and tank, water tank, hot water tank, heat exchange equipment, energy recovery device, wheat juice negative pressure evaporation energy saving system, etc. The complete malt pulp system is the professional process of the whole beer brewing process. In this process, malt raw materials are processed step by step to form liquid malt juice. In this process, protein is converted to amino acids and starch to carbohydrates.

Brewhouse beer mash system Chinese supplier

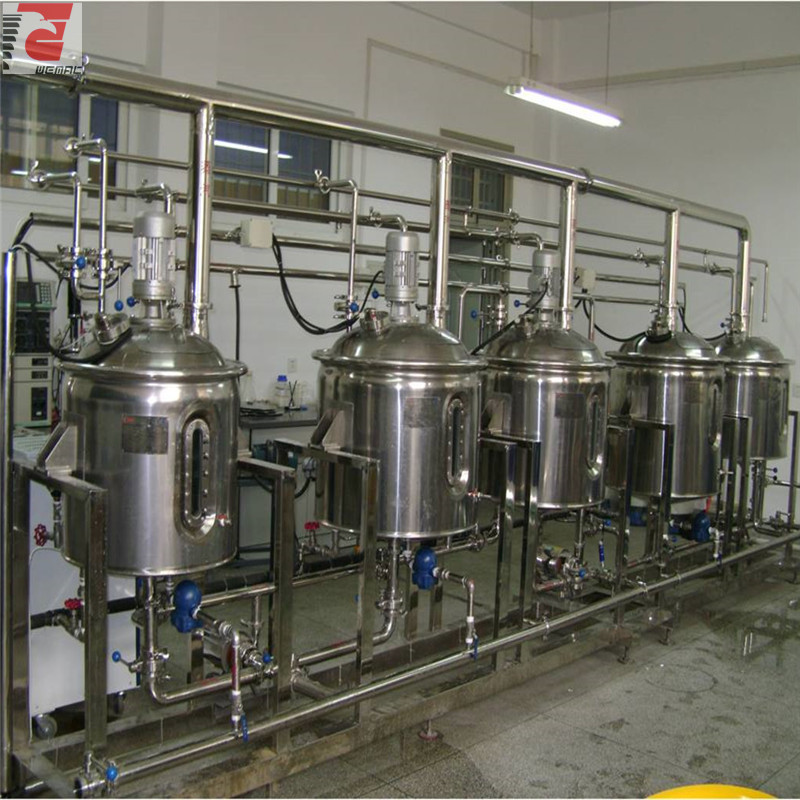

brewhouse equipment manufacturers.jpg

brewhouse equipment manufacturers.jpg

The mash tun is used for the large-scale production of refined beer and industrial beer. The difference is that the industrial saccharification barrels used by breweries are much larger in scale. The saccharified copper is mainly used in the mass production of industrial beer in large breweries. In the malt barrel, malt is processed into malt liquor. In the mashed copper of potato, the raw material is starch or milled rice, and the final raw material is starch paste and starch liquid.

Dimple plate jacket is used for saccharification equipment tank body to realize heat conduction and energy recovery. The automatic temperature control system is adopted to ensure the accurate and timely temperature regulation in the process of saccharification. The mixing and mixing device is controlled by an excellent intelligent variable frequency suspension speed regulating system. This can greatly improve the enzyme activity and performance, and ensure the taste and nutrition of beer.


Lauter tank is used for filtration of the whole saccharification process. It is mainly composed of tank, special scraper, motor and control system. In this process, most of the malt fiber, peel and other solid wastes are separated and discharged from the malt liquor and water. A small amount of carbohydrates and water-insoluble proteins were also removed from the malt liquor. The filtered malt liquor is almost clean and almost free of impurities. The malt liquor containing soluble carbohydrate and protein is then delivered to the boiler for further treatment.

Wemac self-designed professional rake bucket, with automatic lifting control system. The whole system works evenly and is responsible for the mixing, mixing and filtering process. Advanced technology and structure ensure uniform and stable mixing and discharging of materials. It greatly improves the filtration speed and production efficiency, and has a good appearance of wort. The scraper, mixing and mixing device independently developed by wemac company is equipped with automatic control system with adjustable speed, which fully realizes simple operation, convenient maintenance and low production cost.

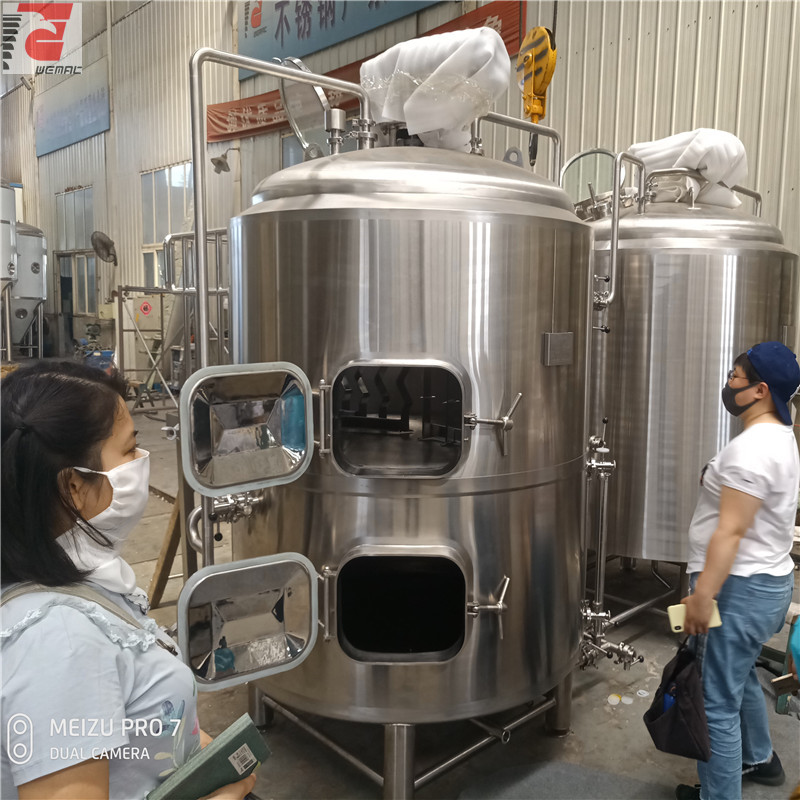

mash system.jpg

mash system.jpg

Boiler is the equipment used in boiling process. During this process, the wort is boiled to the desired concentration. At the same time, the insoluble protein and other thermal condensates are formed in the boiler. In this course, hops need to be added many times in the required order to form different tastes.

Wemac adopts the advanced boiler body high pressure boiling technology, and adjusts the circulation mixing technology. The technology realizes the formation and separation of protein insolubles. At the same time, the heating rate is increased, and the boiling temperature is kept uniform, balanced and even. This can not only ensure the boiling quality of wort, but also prevent the denaturation of insoluble protein.



 Whirlpool is used to settle and separate the insoluble concrete formed in the previous step. Insoluble tuberculosis is formed from malt, hops, fibers, proteins and many other substances.

Whirlpool water tank is specially designed by wemac engineers. Equipped with professional equipment, the most efficient structure. Large diameter and height ratio, slow down the vortex speed, and ensure the formation and deposition efficiency of hot concrete. The use of hot concrete storage tank improves production efficiency and reduces pollution.
