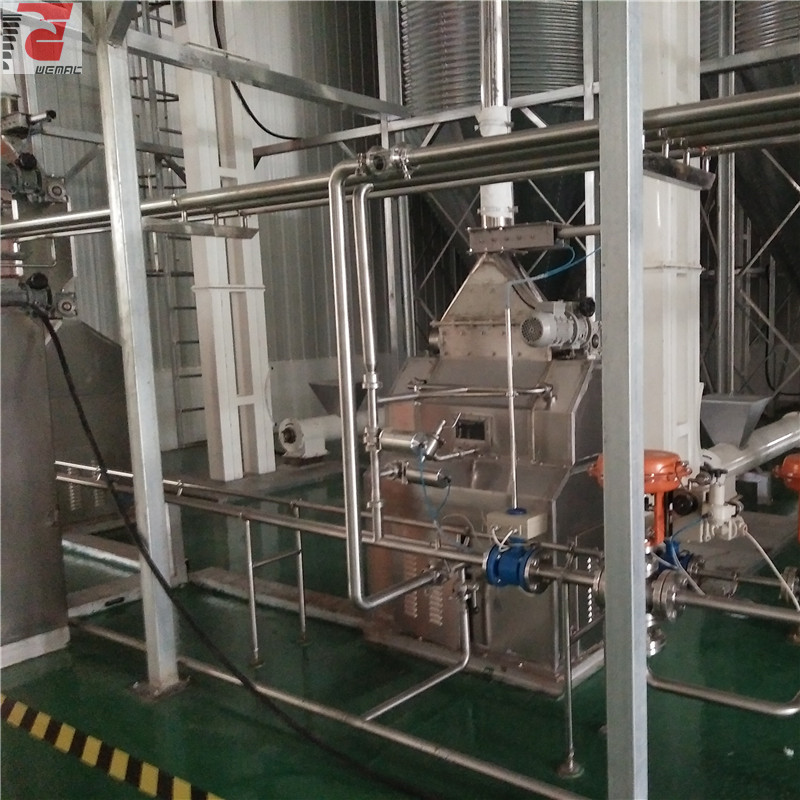

1. Malt mill

Crushing Ability:200-300kg/h;

Power:1.1KW;

Rollers material: Alloy

Double rollers, roller size:φ155*200mm

Rollers distance can be adjustment, roller speed: 700RPM

Dimensions: 1150×700×1700mm

Seperated control switch

1. Beer mash system, we can make American style and German style mash system. Customized mash system is also available.

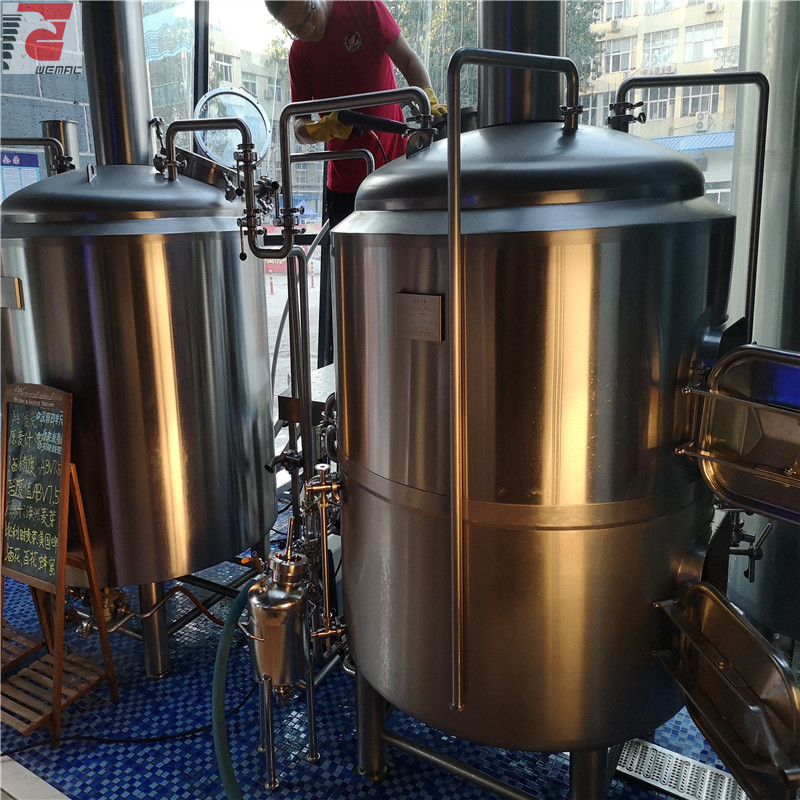

Mash/Lauter tun

Effective volume:1000L;

Gross volume: 1300L;

Inner-Jacket (SUS304), TH=:3.0mm;

External-Jacket (SUS304), TH=2.0mm;

dish head, TH=3.0mm;

Insulation layer: rockwool-thickness:80mm.

Top glass manhole: 400mm;

Spent graindoor with removable chute, size 530*430mm;

Raker knife, ABB motor(VFD) power: 1.5kw; gear box ratio:1:100

plow(automatic removing spent grain)

Laser cutting T-wires false bottom (filter),

gap: 0.8mm; SUS 304,   easily removable for cleaning.

Filter way: gravity and suction;

Easy-clean and detachable sparging sprayring;

Grant to protect the grain layer&check wort clarity.

360° coverage CIP spraying ball;

Temperature measurement way: PT100;

100% TIG full welded joints;

Interior finish: mirror polishing to 0.4μm without dead corner;

4 completely SUS304 heavy duty legs with leveling pad

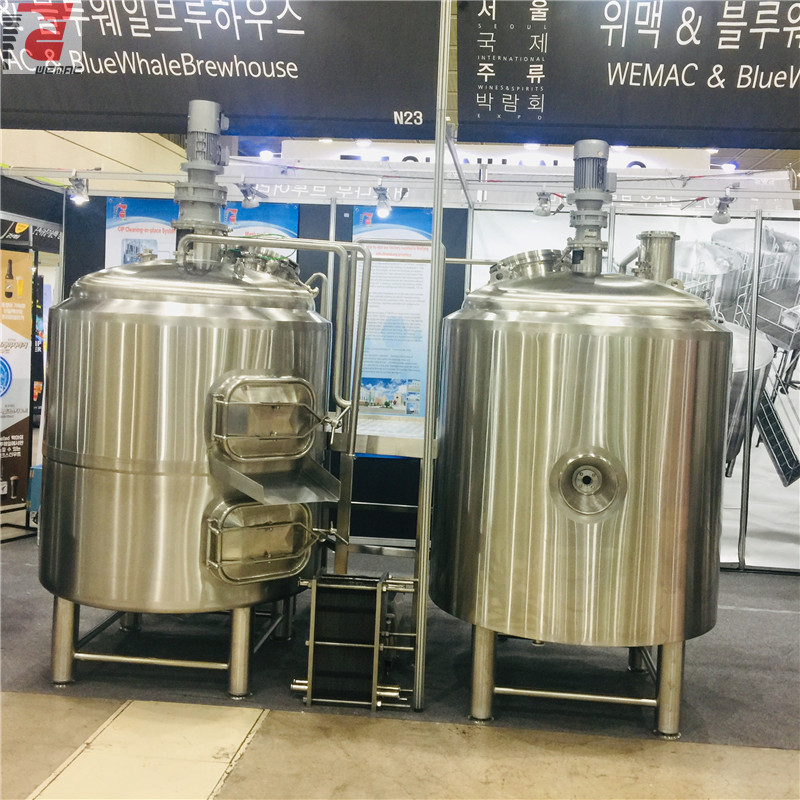

Kettle/Whirlpool

Effective volume: 1000L;

Gross volume: 1400L;

Inner-Jacket (SUS304), TH=3.0mm;

External-Jacket (SUS304), TH=2.0mm;

dish head, TH=3.0mm;

Insulation layer: rockwool-thickness:80mm;

Top glass manhole: 400mm;

Mash mixer:ABB motor(VFD) power: 1.5kw; gear box ratio:1:30

Electric heating

Exhaust way: External steam vent, diameter:φ159mm;

Tangential whirlpool inlet;

360° coverage CIP spraying ball;

Temperature measurement way: PT100;

100% TIG welded joints;

Interior overall polishing to 0.4μm without dead corner;

4pcs completely SUS304 heavy duty legs with leveling pad

Hot liquid tank

Effective volume: 1000L;

Gross volume: 1100L;

Inner-Jacket (SUS304), TH=:3.0mm;

External-Jacket (SUS304), TH=2.0mm;

Insulation layer: Rockwool-thickness:80mm;

Electric heating

Liquid level display with stainless protection;

Temperature measurement way: PT100;

100% TIG welded joints;

Interior overall polishing to 0.4μm

Wort pump

Flow 5m3/h, lift 24m

VFD Speed controller, open impeller

Inletφ51, outletφ38, tri-clamp

Power: 1.5kw

Hot water pump

Flow 5m3/h, lift 24m

VFD Speed controller, open impeller

Inletφ51, outletφ38

Power: 1. 5kw

Plate heat exchanger

SUS304, easily disassembled for cleaning;

Exchange area 11 ㎡;

cold water inlet/outlet;Wort inlet/outlet;glycol water/outlet

2 stages, suspension type

Working platform

304 SUS; Anti-skidding design,

Easily assembled with safety railings and ladder

Water leaking type

Hopback

filter hops

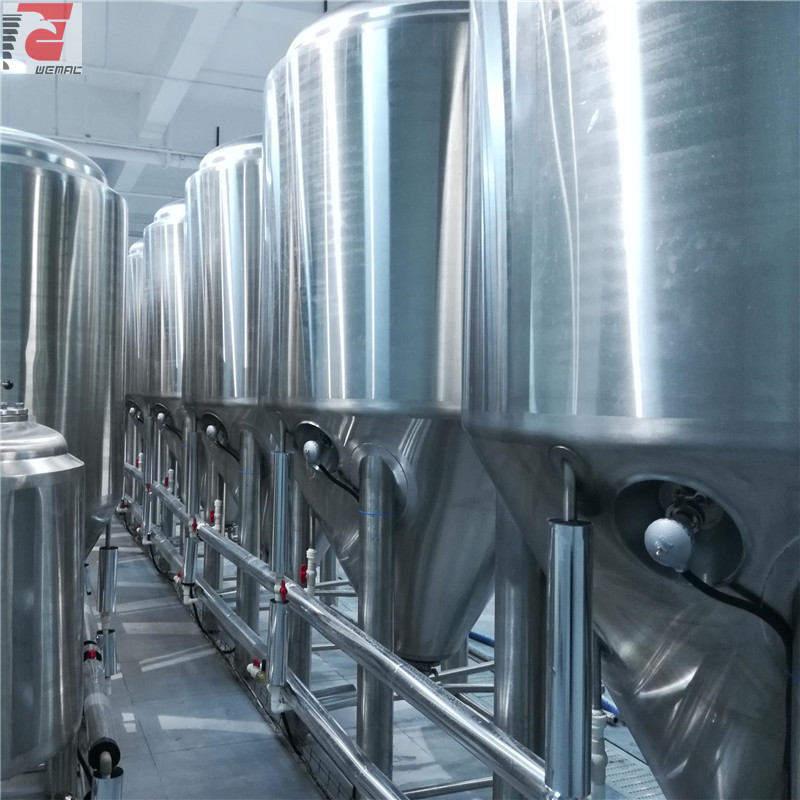

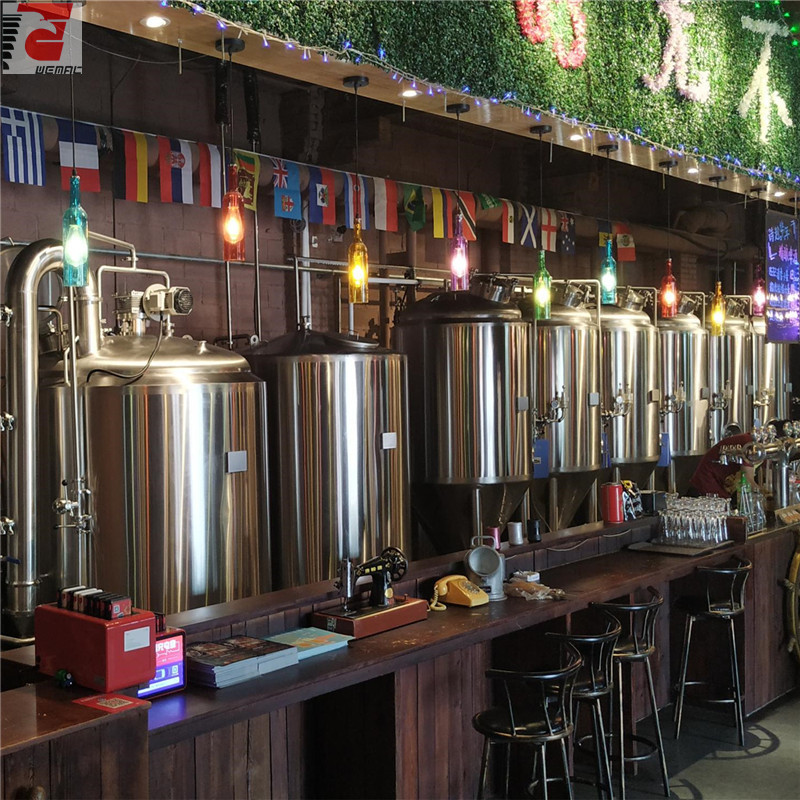

1000L fermentation tank

lEffective volume: 1000L;

lGross volume: 1300L;

lInner–jacket (SUS304), TH=3.0mm;

lOuter-jacket(SUS304), TH=2.0mm;

ldish head(SUS304), TH=3.0mm;

lInsulation: PU-thickness:80mm;

l60°cone, dimpled cooling jacket on bottom and side

lCooling media: glycol water or alcohol water

lStringent jacket leakage test by water and compressed ga

l360°coverage CIP spraying ball for cleaning;CIP

lPT100Temp. sensor for high accuracy temperature control;

lDesign pressure 0.3MPa; Working pressure 0.2Mpa

lside shadowless manway 340*440mm

lPVRV

lFull sanitary sample valve;

l4”Dry hops adding port;

lCarbonation stone

l100% TIG full welded joints;

lInterior overall polishing to 0.4μm without dead cornerl

l4pcs completely SUS304 heavy duty legs with leveling pad

Glycol Cooling System

Glycol water tank

SUS 304 ;

Gross volume: 2000L;

Inner thickness: 3.0mm; outer thickness: 2.0mm;

Insulation PU: 100mm;

Liquid level display

Glycol chiller

Model type: 5P; Capacity: 7300kcal/h

Compressor power:4.1kw

Type of freon: R404A

Glycol water pump

Flow: 5m3/h; Lift: 24m;

Power: 1.5kw;ABB motor ABB

Cold media piping

PPR piping

Insulation pipeline

CIP Cleaning System

Disinfection tank

Useful volume: 100L;

Thickness: 2.5mm;

Alkali tank

Useful volume: 100L;

Thickness: 2.5mm;

Electric heating;

Washing pump SUS 304;Flow: 3m3/h; Lift: 18m; ABB motor

Controller

Piping & valves SUS 304

Controlling System

Brewhouse control

Fermenting control

Cooling control

Control/signal line

SIEMENS PLC&HMI(touch screen)

Schneider brand electronics

Danfoss VFD

Control fermentation temperature automatically or manuallyl

Wiring diagram will be provided with the panel

All motors have fuse and overload protection.
