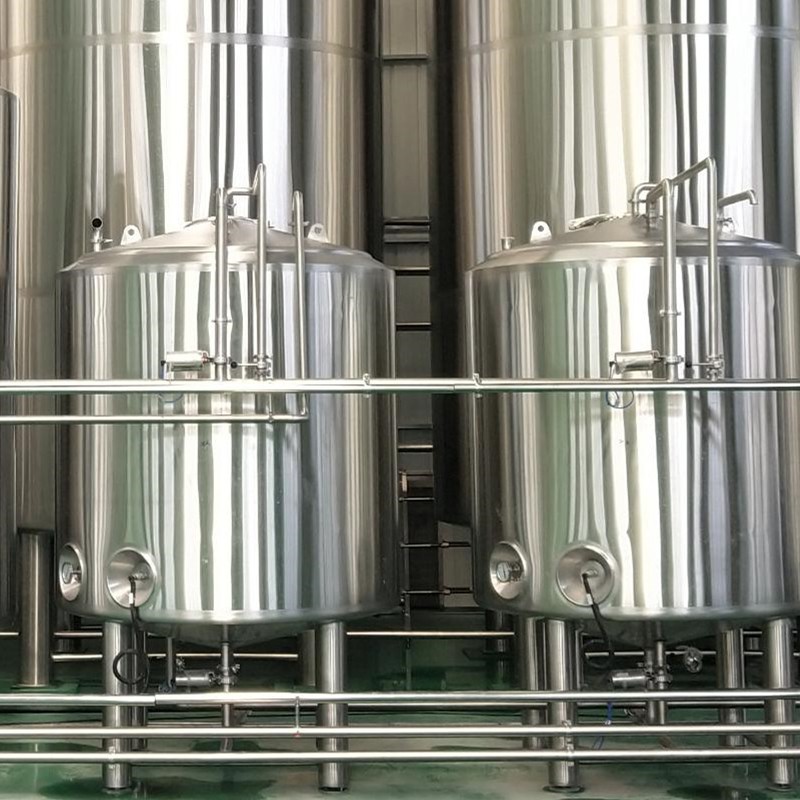

Brewery fermentation tanks are fermentation devices required in brewery process.Usually the brewery fermentation tanks are devided into two types,the vertical tanks and the horizontal tanks.The vertical fermentation tanks structure is featured with colomn tank body and conical bottom,top with conical seal or disc seal.While the horizontal fermentation tanks structure is featured with colomn tank body and disc seal.The inner tank material is stainless steel.The outer surface of the tank can be customized ,such as wire drawing,mirror surface,original color and copper.The picture shows the 5BBL vertical beer fermentation tank, made of stainless steel。

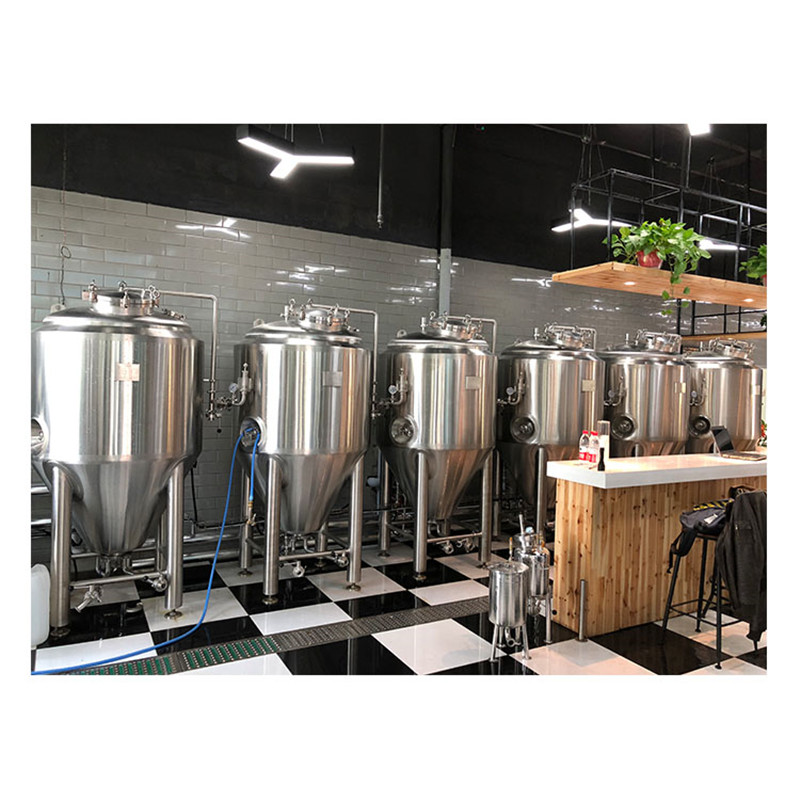

The brewery fermentation tanks are widely used in all kinds of beer brewing process.such as beer factory,beer pub and restaurant,also home use.The picture shows the 500L fermentation tank, together with beer mash equipment, installed at the customer site

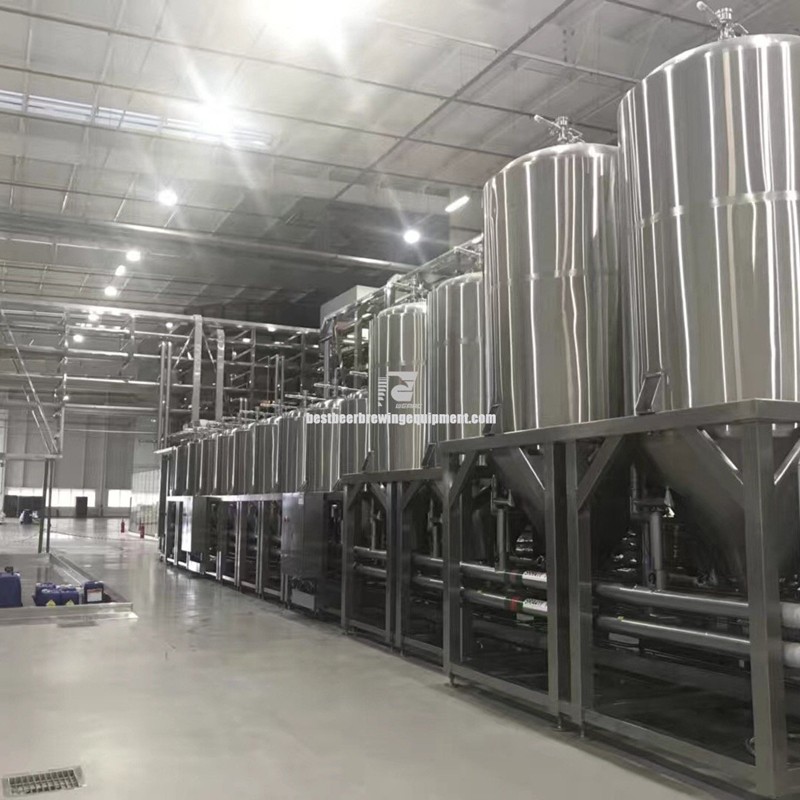

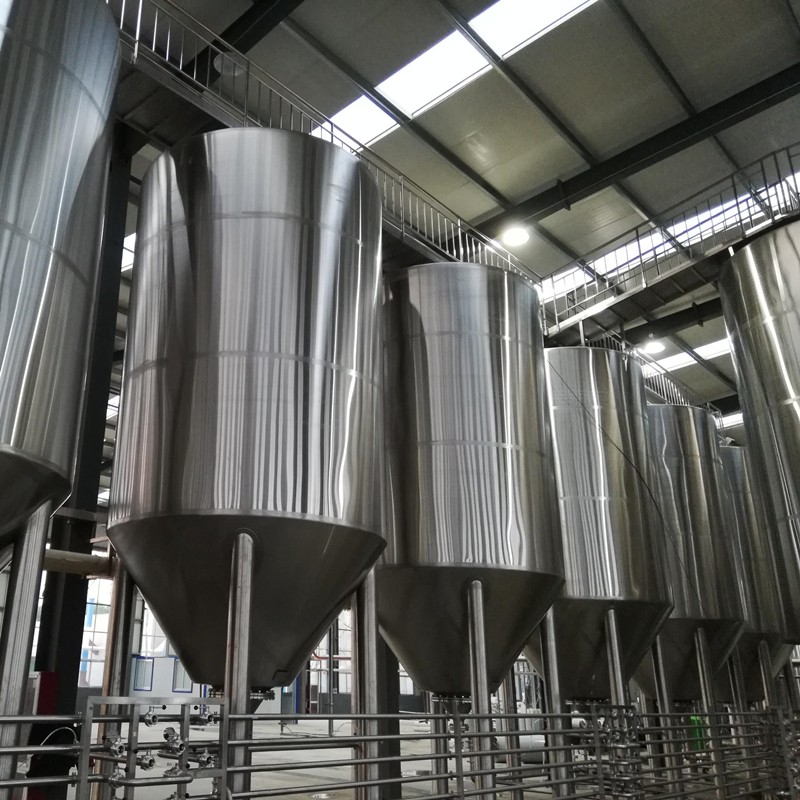

The picture shows the installation of a 3000L fermentation tank in a large beer factory. The bottom has a hammer-shaped design, strong legs, and reliable and durable.this complete set of beer brewing equipment is designed and manufactuered by us.
Control system:Pu/rock wool
Energy source:Steam,electricity,direct fire
100% TIG welding with pure argon gas shield；The pipe mouth stretch technology and automatic tank welding equipment ensure the tank with no dead angle,no material residue and easy to clean;Tank polishing precision ≤0.4um,no distortion, no scratches;Tanks and cooling devices are tested for water pressure;
Material:SUS316L or SUS304
Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm
Dish head,cylinder,60 degree cone bottom(adjustable);
Dimple jacket or dribbling cooling ,PU insulation,TH=80-100mm
Withstand voltage of tank is 4bar;
Tank equip with lifting leg,Electromagnetic valve or mechanical pressure regulating valve,manhole(top or side),
sample valve,temperature sensor, adjustable leg,Rotating beer mouth, discharging outlet.CO2 outlet,coolant inlet and outlet,
CIP inlet and outlet,wort inlet and yeast outlet,cleaning ball, pressure gauge.
Option:Dry hop mouth,CO2 filling device With titanium rod distributor;level gauge
