Auto control industrial water purification system UF compound membrane from Chinese supplier ZZ

  • * Processing : ultrafiltraion, UF water purification
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
  • * Processing : ultrafiltraion, UF water purification
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
1. UF mineralization water filter use automatic control and semi-control. 2. UF mineralization water filter when no power, poor power, larger electrical current, leakage, short circuit. 3. UF mineralization water filter is compact, easy installation. 4. UF mineralization water filter equipped with PLC + touch screen control and remote login . 5.commercial water purification system ISO certification and main parts accessories have obtained CE certification 6.We make commercial water purification system has Long term production experience

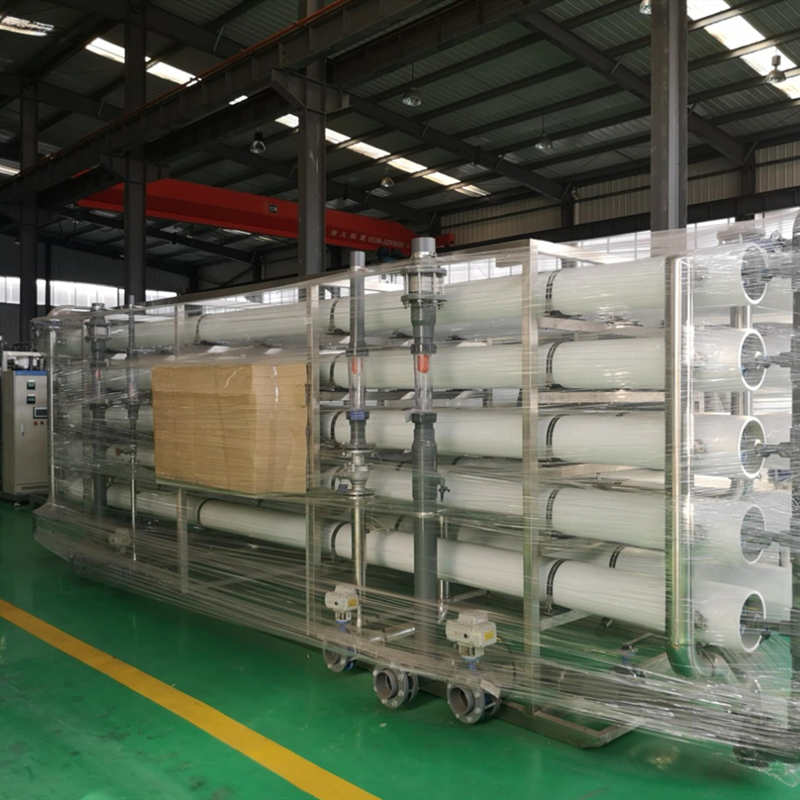

Ultrafiltration equipment9.jpg

Ultra-filtration is a membrane separation process based on the principle of sieving separation and pressure as the driving force. The filtration accuracy is within the range of 0.005-0.01μm, which can effectively remove particles, colloids, bacteria, heat sources and polymer organic substances in water. It can be widely used in the separation, concentration and purification of substances. The ultrafiltration process has no phase inversion and is operated at room temperature. It is particularly suitable for the separation of heat-sensitive substances. It has good temperature resistance, acid and alkali resistance and oxidation resistance.

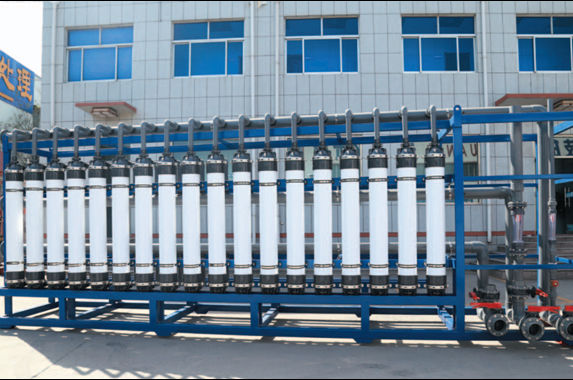

Ultrafiltration equipment 2.jpg

UF system is a solution separation device in which an UF membrane fiber is used a filtration medium, membrane two side's pressure difference as a driving force. The UF membrane is only allows the solvent(such as water molecules), mineral salts and small molecular organic substances in the solution to pass through, and the macromolecular substances such as suspended matter, colloid, protein and microorganisms in the solution are intercepted, Thereby achieving the purpose of purification or separation.

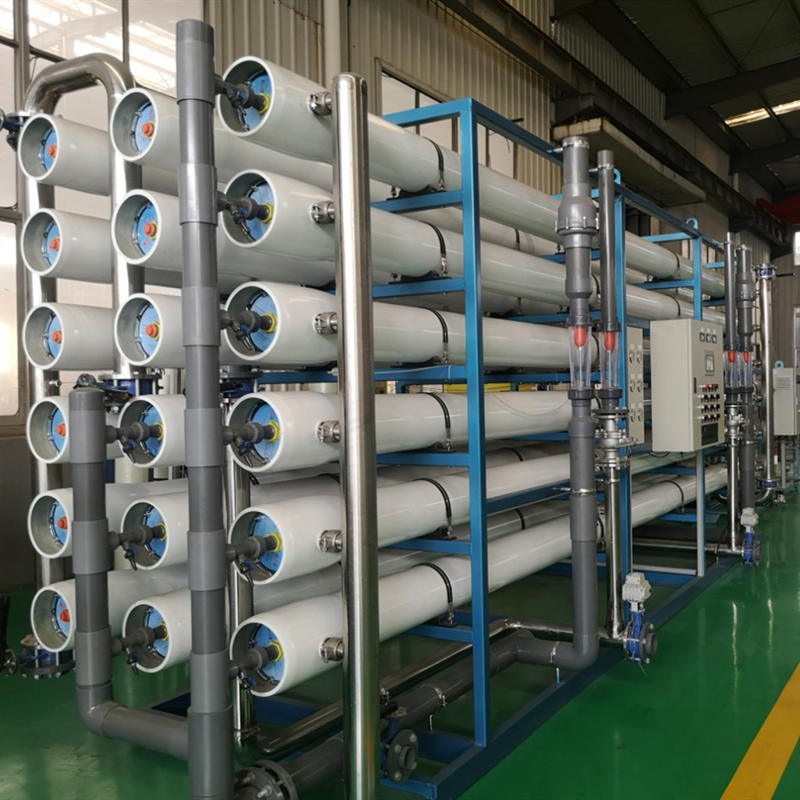

Ultrafiltration equipment10.jpg

The filter is a device that uses ultrafiltration technology to purify water. The difference from other water purification equipment is the use of ultrafiltration membranes. Ultrafiltration membrane is a kind of microporous filtration membrane with consistent pore size specifications and rated pore size range of 0.01-0.001 microns. The membrane filtration method using ultrafiltration membrane with pressure difference as the driving force is ultrafiltration membrane filtration.

The membrane in the ultrafiltration equipment is a microporous filtration membrane with the same pore size and the rated pore size range of 0.001-0.02 microns. The membrane filtration method using ultrafiltration membrane with pressure difference as the driving force is ultrafiltration membrane filtration. Ultrafiltration membranes are mostly made of acetate fibers or polymer materials with similar properties. It is suitable for the separation and concentration of solutes in the processing solution, and is also often used for the separation of colloidal suspensions that are difficult to complete with other separation technologies. Its application fields are constantly expanding. Membrane filtration driven by pressure difference can be divided into three types: ultrafiltration membrane filtration, microporous membrane filtration and reverse osmosis membrane filtration. Their distinction is based on the size or molecular weight of small particles that the film can retain.

cross-section picture of hollow filter UF membrance.png

The internal pressure hollow fiber ultrafiltration membrane module is widely used in industrial water treatment equipment, suitable for quoting mineral water, mountain spring water, industrial ultrafiltration water, and can also be used for pre-pretreatment of pure water.

Compared with traditional filtration membranes, ultrafiltration membranes have the following advantages:

The system has low energy consumption and short production cycle. Compared with traditional process equipment, the equipment has low operating costs, which can effectively reduce production costs and improve enterprise economic benefits.

The system has advanced technological design, high degree of integration, compact structure, small footprint, simple operation and maintenance, and low labor intensity.

The system is made of sanitary stainless steel, fully enclosed pipeline operation, clean and hygienic on site, meeting the requirements of GMP or FDA production specifications.

The control system can be individually designed according to the user's specific requirements, combined with Shijia's advanced control software, on-site centralized monitoring of important process operating parameters, to avoid manual misoperation, and multi-directional to ensure the long-term stable operation of the system.

The ultrafiltration membrane element adopts the products of the world-renowned membrane company to ensure that customers get the best quality organic membrane elements in the world, thereby ensuring the retention performance and membrane flux.

The recovery rate of the system is high, the quality of the products obtained is good, and the material can be efficiently separated, purified and concentrated at a high multiple.

Fushun water treatment equipment Fushun pure water treatment equipment, Fushun reverse osmosis water treatment equipment

There is no phase change during the treatment process, no adverse effect on the composition of the material, and the process of separation, purification, and concentration is always at room temperature. It is especially suitable for the treatment of heat-sensitive substances, which completely avoids the disadvantage of high temperature destroying biologically active substances. Effectively retain the biologically active substances and nutrients in the raw material system.
