professional industrial water purification system hot sell in Zambia from Chinese supplier ZZ

  • * Processing : water treatment,water purification,purified water preparation
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
Our company is able to provide customers with corresponding water treatment equipment for the different water quality in different regions and the water quality requirements of customers. The equipment can meet various water quality requirements. In addition, the pipeline layout and connection of the equipment will also be in accordance with The size of the client’s room is carefully designed

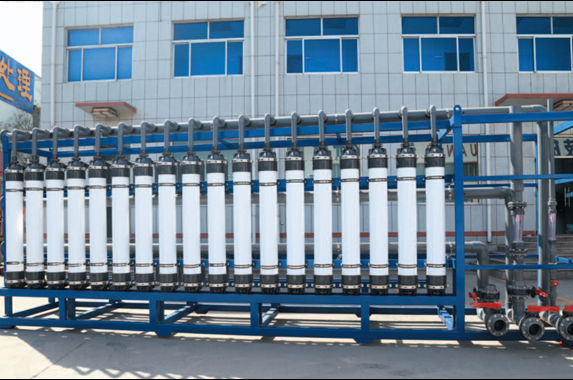

Ultrafiltration equipment 2.jpg

The reverse osmosis membrane can intercept various inorganic ions, colloidal substances and macromolecular solutes in water, and can also be used for pre-concentration of macromolecular organic solutions. Reverse osmosis has two structures: asymmetric membrane and composite membrane. Its components are hollow fiber type, roll type, plate and frame type and tube type, which can be used for separation, concentration, purification and other chemical unit operations, mainly used in pure water preparation and water treatment industries.

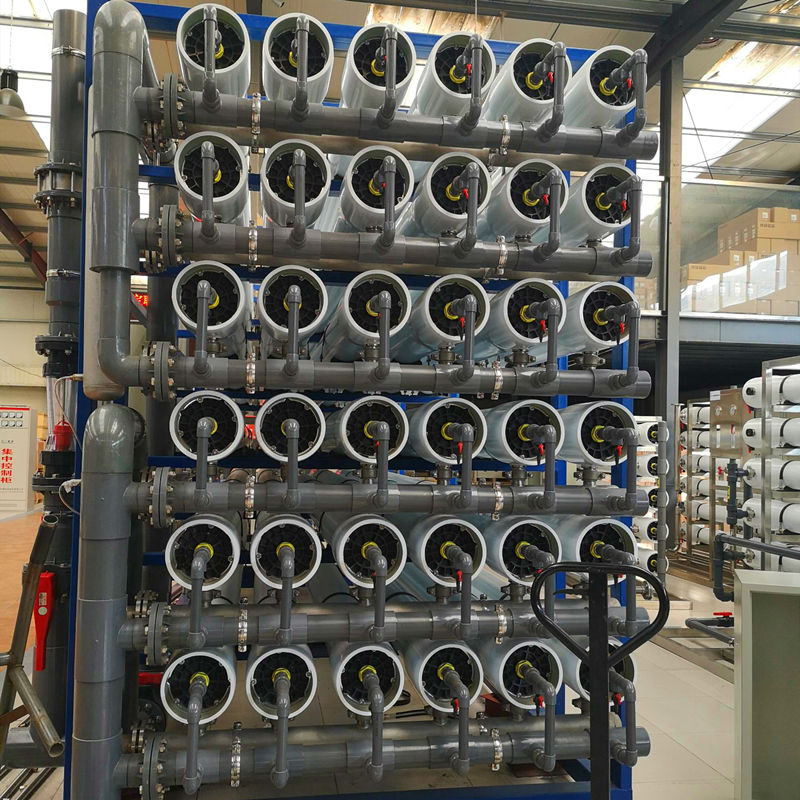

Ultrafiltration equipment5.jpg

product features:

(1) It has high mechanical strength and service life;

(2) It can function under lower operating pressure;

(3) Able to withstand chemical or biochemical effects;

(4) Less affected by factors such as PH value and temperature;

(5) Simple processing and low cost;

(6) Highly efficient desalination rate at high flow rate.

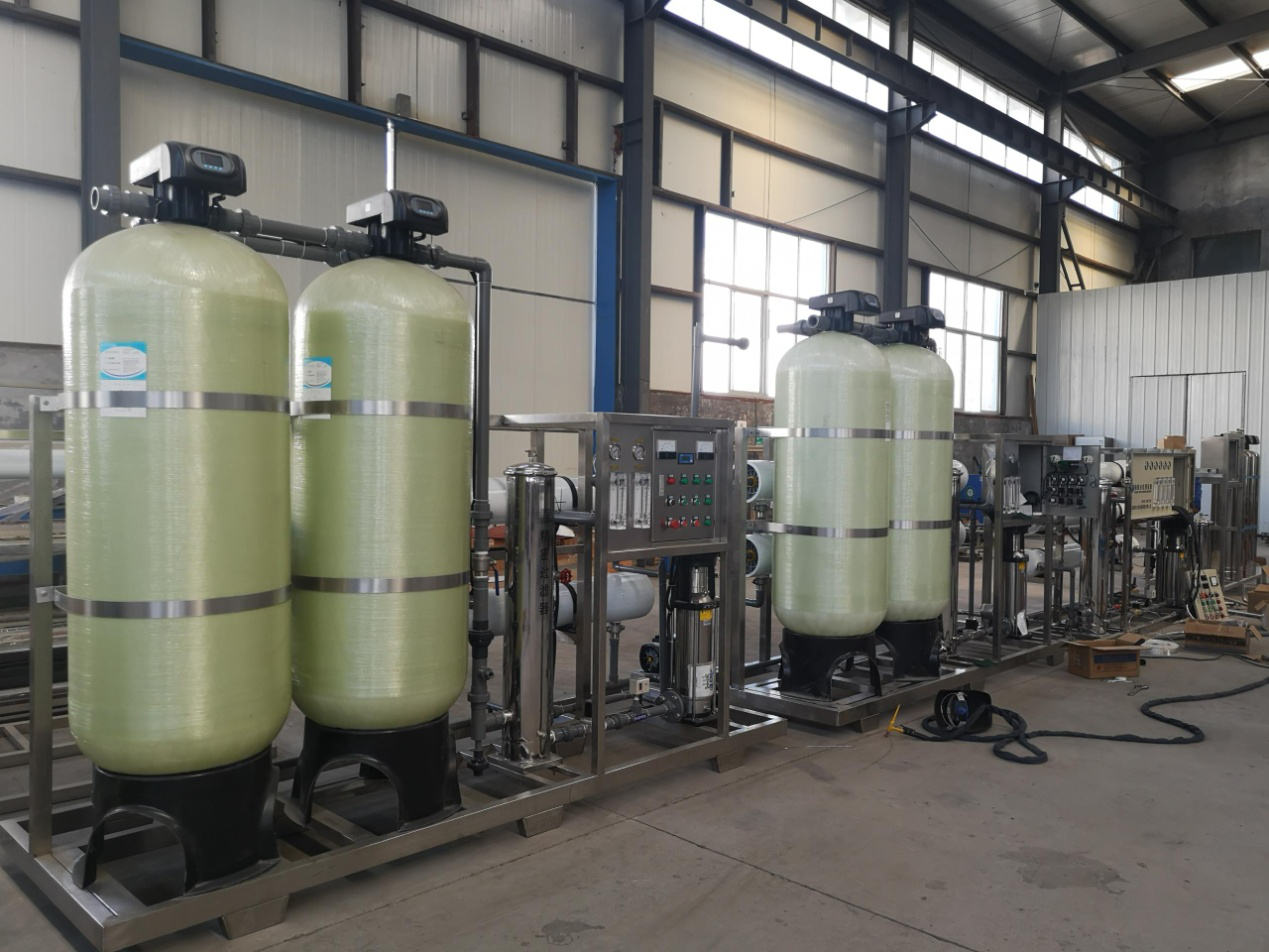

water softening equipment3.jpg

working principle:


Reverse osmosis, also known as reverse osmosis, uses the pressure difference as the driving force to exert pressure on the material and liquid on one side of the membrane. When the pressure exceeds its osmotic pressure, the solvent will reverse osmosis against the direction of natural permeation. The solvent permeated on the low pressure side is the permeate, and the solvent obtained on the high pressure side is the concentrate. If seawater is treated by reverse osmosis, fresh water is obtained on the low pressure side of the membrane and brackish water is obtained on the high pressure side.

The diameter of the micropores on the surface of the reverse osmosis membrane is generally between 0.5 and 10 nm, and the permeability is related to the chemical structure of the membrane itself. Some polymer materials have good salt repellency, but the water permeability is not good; some polymer materials have more hydrophilic groups in the chemical structure, so the water permeability is relatively fast. Therefore, a satisfactory reverse osmosis membrane should have an appropriate amount of permeation or salt rejection rate.


The calculation method of reverse osmosis membrane desalination rate + salt permeability + salt permeability + recovery rate is as follows:

Salt permeability of reverse osmosis membrane = reverse osmosis membrane product water concentration/influent water concentration × 100%

Desalination rate of reverse osmosis membrane = (1-salt content of reverse osmosis membrane product water / salt content of influent water) × 100%

Salt permeability of reverse osmosis membrane = 100%-desalination rate

Recovery rate of reverse osmosis membrane = (product water flow of reverse osmosis membrane/influent flow) × 100%

Calculation method of water production + permeation flow rate + recovery rate:

Water production of reverse osmosis membrane: refers to the water production capacity of the reverse osmosis system, that is, the amount of water passing through the reverse osmosis membrane per unit time, usually expressed in tons/hour or gallons/day.

Permeation flow rate of reverse osmosis membrane: It is also an important indicator of the water production of reverse osmosis membrane elements. It refers to the flow rate of permeate per unit membrane area, usually expressed in gallons per square foot per day (GFD).

The recovery rate, salt permeability, and calculation formula of the reverse osmosis membrane module are as follows:

Recovery rate of reverse osmosis membrane module = reverse osmosis membrane module water production/intake water×100%

Salt permeability of reverse osmosis membrane module = reverse osmosis membrane module product water concentration/influent water concentration × 100%

cross-section picture of hollow filter UF membrance.png

Application areas:

Reverse osmosis membranes are widely used in seawater and brackish water desalination, boiler water softening and wastewater treatment, and combined with ion exchange to produce high-purity water, the concentration of dairy products and juices, and the separation and concentration of biochemical and biological agents.
