We are a one of the largest Brewery equipment manufacturers and factory since 1958 from china ,professional craft brewing,home brewing ,microbrewery and commercial brewing equipment equipment solutions from China.we design and install Brewery equipment worldwide. Admin@senmobrew.com

All size SUS304 craft beer brewing Jacketeed fermenters from WEMAC ZZ

  • * Processing : Fermenting Equipment, Beer Brewing
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
  • * Processing : Fermenting Equipment, Beer Brewing
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
Single head design, fermenting tank with jacket, jacket filled with polyurethane foam, has the function of heat preservation for beer, the pressure resistance of the tank is 2.5bar and compared with the traditional fermentation tank, we use more materials, thicker materials and quality More superior, the top of the equipment is equipped with a cleaning ball, which can be connected to the CIP system. It is easy to clean after the equipment is used to ensure that the next use of the fermentation tank will not be affected. The top manhole has a safety valve and the bottom has a sewage outlet. And the wine valve sampling valve. Regarding the temperature adjustment, there is a well-known brand temperature sensor, and the quick chuck connection. with hop inlet port in the top tank,For temperature control, our jacketed insulation is covered with cold water pipes, which can be connected to cold water to control the temperature of the fermentation tank.

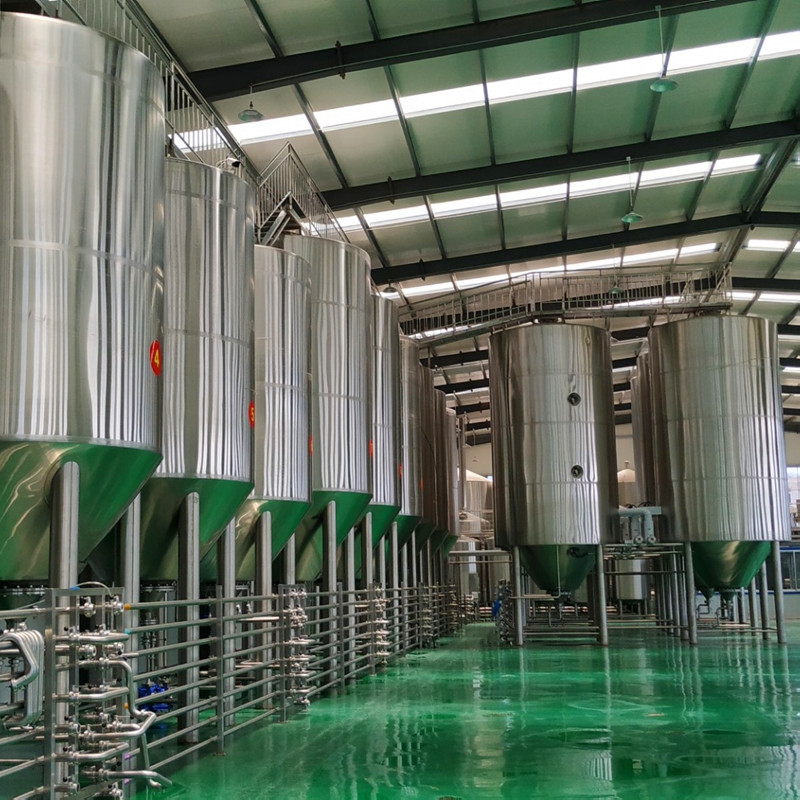

fermentation tanks in our factory.jpg

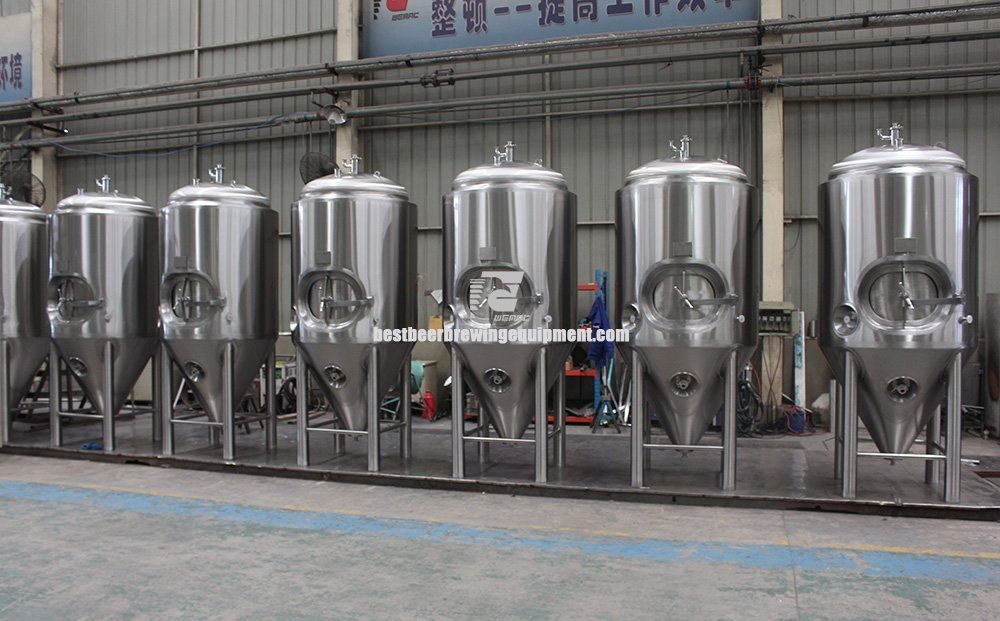

1000L Beer brewing fermenters with jacket.png

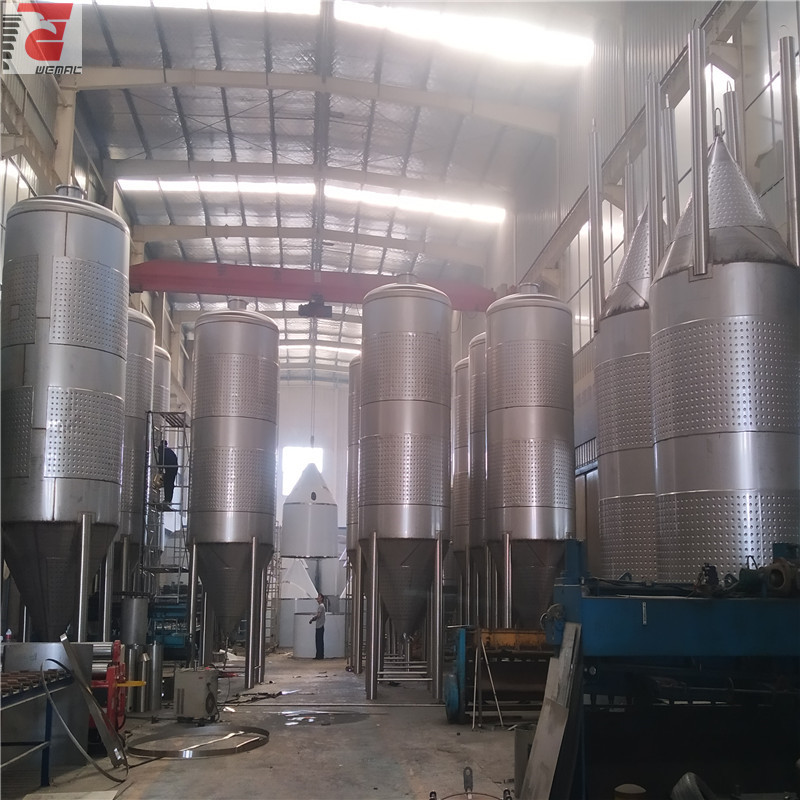

fermentation tank manufacturer.jpg

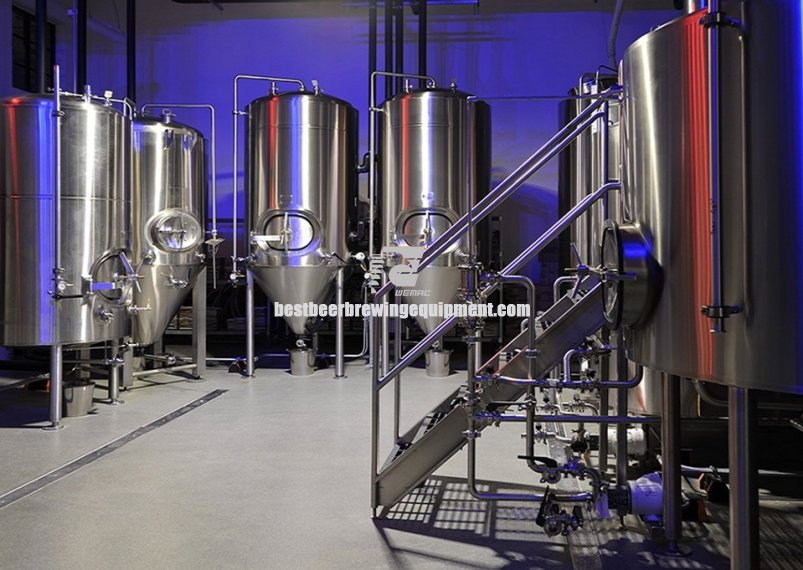

1000L complete set of beer brewing equipment.png

1000L (10HL) Stainless steel fermenter technical parameter

Total capacity: 1200L effective capacity:1000L  (10HL)
Dimension: Φ1210mmx2550mm
Material:SUS316L or SUS304
Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm
Dish head,cylinder,60 degree cone bottom(adjustable);
Dimple jacket or dribbling cooling ,PU insulation,TH=80-100mm
Withstand voltage of tank is 4bar;
Tank equip with lifting leg,Electromagnetic valve or mechanical pressure regulating valve,manhole(top or side),
sample valve,temperature sensor, adjustable leg,Rotating  beer mouth, discharging outlet.CO2 outlet,coolant inlet and outlet,
CIP inlet and outlet,wort inlet and yeast outlet,cleaning ball, pressure gauge.
Option:Dry hop mouth,CO2 filling device With titanium rod distributor;level gauge

1000L  (10HL) Stainless steel fermenter characteristics

◆100% TIG welding with pure argon gas shield;
◆The pipe mouth stretch technology and automatic tank welding equipment ensure the tank with no dead angle,
   no material residue and easy to clean;
◆Tank polishing precision ≤0.4um,no distortion, no scratches;
◆Tanks and cooling devices are tested for water pressure;
◆3D technology application make customers know tank from different angles


Send a Message

If you want to ask anything just fill in the form below and send us.

Name: DuBois         time:2020-10-10 09:53:30
The craft beer brewing Jacketeed fermenter has been put into use, and everything is perfect now. I hope the equipment will be durable.
