2000L Microbrewery Equipment System

Malt Miller                           500Kg/h

Mashing system                   2000L 2Vessel

                                   4000L Hot liquid tank

Fermentation system           2000L FT+2000L BBT

Cooling system                   2*8P chiller+4000L CL tank+ 4000L Glycol tank

CIP system                           200L

Controlling system                   PLC+Touch screen

Electric Steam boiler           200KG/h

Full sets of pipeline

Keg Filler & Rinser

Package fee&Domestic installation and commissioning&Domestic transport

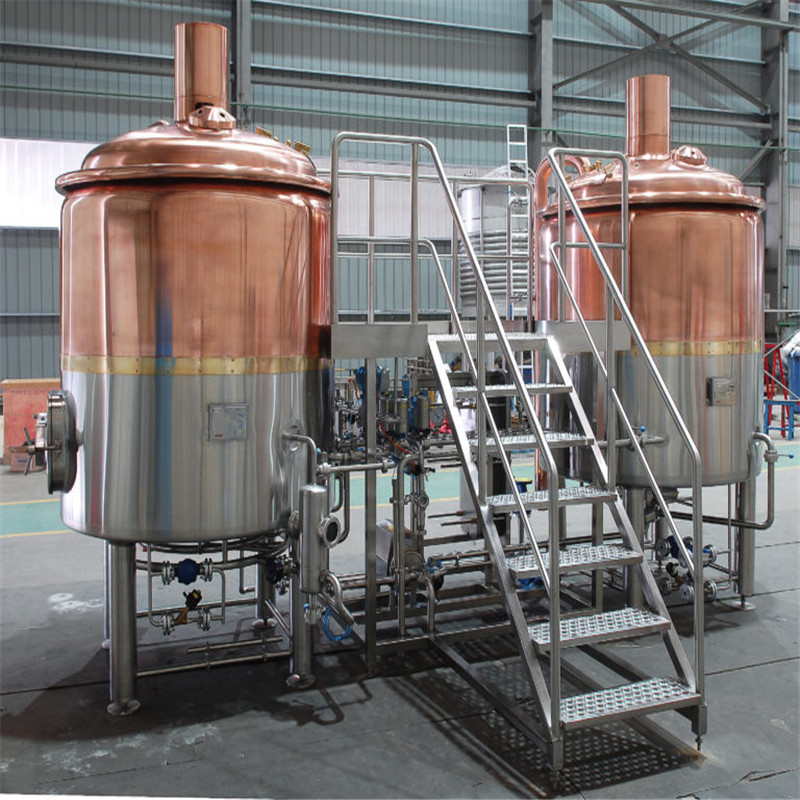

According to the requirements of different customers,WEMAC 2000L mash system can beSUS304, 316, copper or half copper.

The Mash&Kettle tun dimensions: D=1760mm, H=3700mm.

It's steam heating; Coil jacket, Pressure resistance 3bar. Heating meets the temperature rise of 1-1.5 degrees/minute; the cylinder and bottom are individually controlled.

About temperature sensor, -10--150°C, 4-20 mA signal, L = 200mm, 50.5 chuck connection, Chinese famous brand.

Round glass manhole, dish-shaped head.

With a cleaning tube, with standard ball washing, cleaning pipeline ISO32.

The effective volume of the lauter part is 2150L, and the effective volume of the whirlpool part is 2600L.

Inner shell:SUS304,TH=3mm,Cladding TH=2mm.Dimension:D=1760;H=3700mm.

3 inlet tubes at the upper, one for reflow and one for spent grain washing.

Internal sparging device adopts double umbrella flow plate form,

the other washing pipe is used to washing lauter tank equipped with standard ISO32 washing ball;

Lauter tun upper with round manholes, side square spent grain outlet (spent grain chute);

Filter discharge master tube with sight glass and sanitary sampling valve, horizontal installation;

filtration can achieve natural filtration and suction filtration, natural filtration can be washed simultaneously

Lauter plate: milling. Material:SUS304, opening rate is about 8%; Surface light, smooth;

Local can open, convenient cleaning, no deformation; The distance between filter plate and bottom of the pot is from 2 to 5cm,

at the bottom of the tank equips with cleaning device, uniform not less than three.

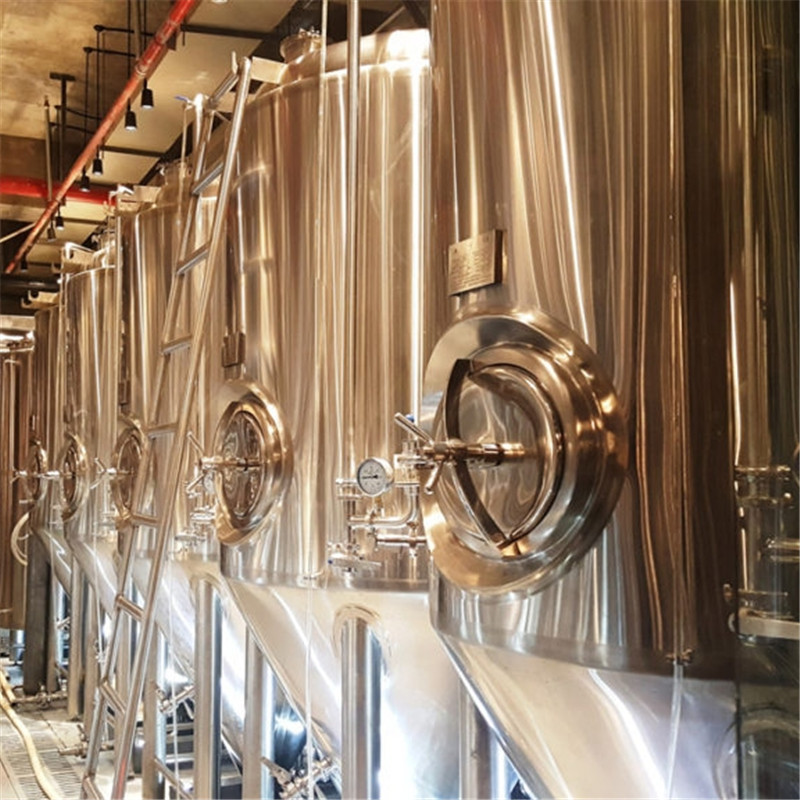

WEMAC 2000L fermentation tank equipped with cleaning ball; The mounting position is slightly lower than the barrel and head welds, cleaning the tube Ø32.

Internal roughness ≤ 0.4um, and no deformation, no scratches, weld 2B surface.

Top installation positive and negative pressure safety valve(PVRV) , single head,TOP manhole;

Tank with temperature sensing (-10--150 °C, 4-20mA signal, L = 200mm, 50.5 chuck connection, brand Fred), sampling valve;

the bottom of the sewage outfall, the bottom of the cone has a beer valve ;hops dry port DN100;

Bottom drain pipe Ø38.

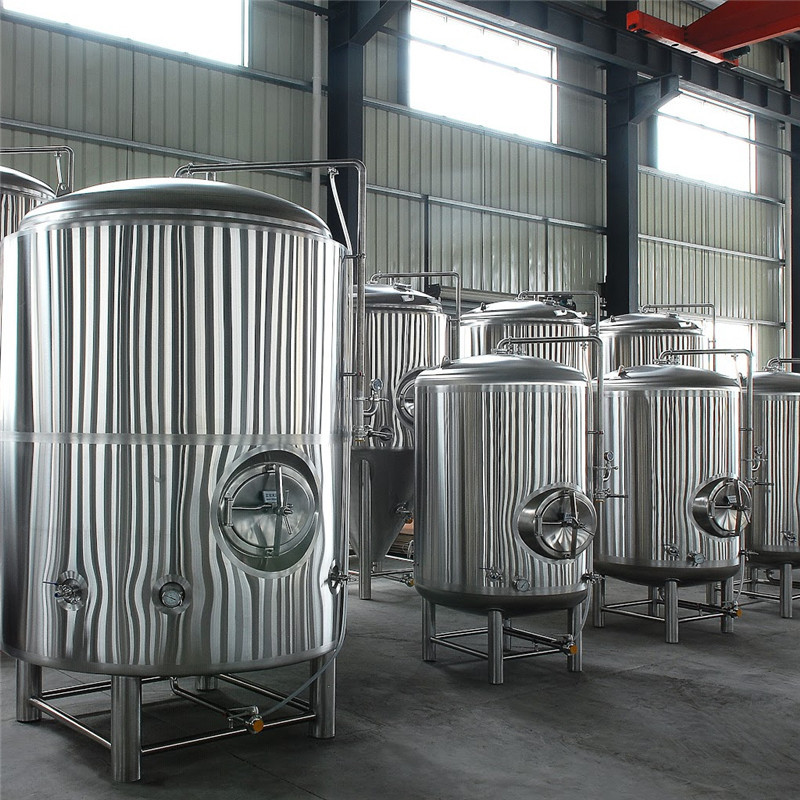

WEMAC 2000L brite tank,

Effective capacity:2000L

Dimension:D=1460;H=3450mm

Inner shell:SUS 304, TH= 3mm; cladding material:SUS 304,TH=2mm

Dimple jacket for cooling,material is SUS 304, TH=1.5mm , cylindrical cooling temperature area is about 40% of the cylinder surface area,

the cones cooling area is about 50% of the surface of the cones;

80 mm polyurethane foam for insulation;

Withstand voltage of tank is 2.5bar;

60 °hypocone is compressive strength design.

2B inside the equipment, pickling passivation treatment, welding seam is finely treated, no deformation;

External surface brush treatment, beautiful appearance.Pipe layout, opening position, etc. meet the operational, site installation and visit requirements.
