1500L Brewery manufacturers complete beer brewing system WEMAC Y012
WEMAC 1500L Microbrewery Equipment System Main item:
1.Malt Miller 500Kg/h
2.Mashing system 1500L 2Vessel+3000L Hot liquid tank
3.Fermentation system 1500L FT+1500L BBT
4.Cooling system 5P chiller +8P chiller+3000L CL tank+ 3000L Glycol tank
5.CIP system 200L
6.Controlling system PLC+Touch screen
7.Electric Steam boiler 150KG/h
8.Full sets of pipeline
9.Package fee&Domestic installation and commissioning&Domestic transport

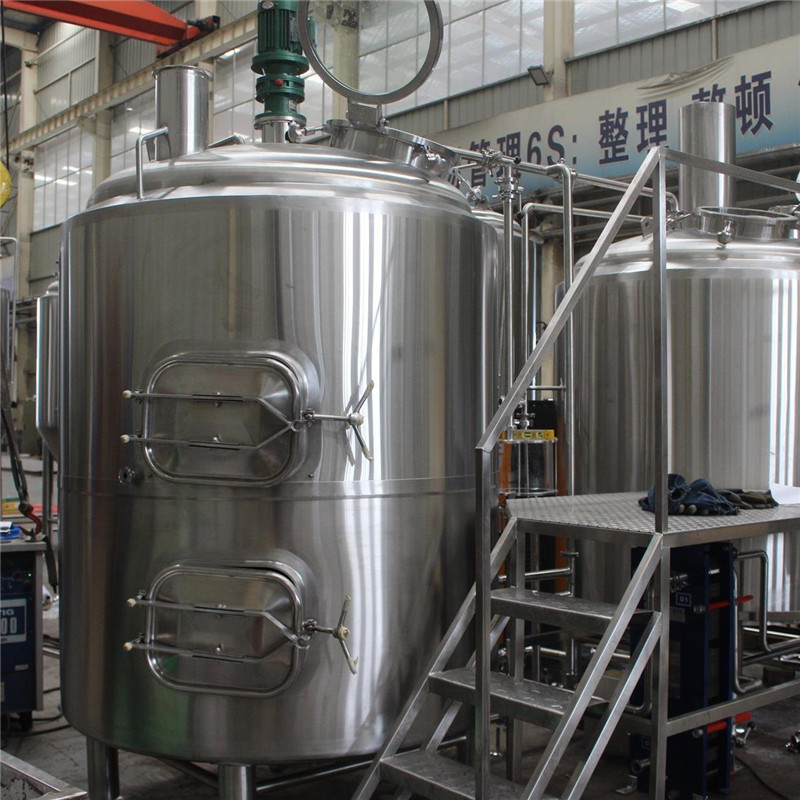

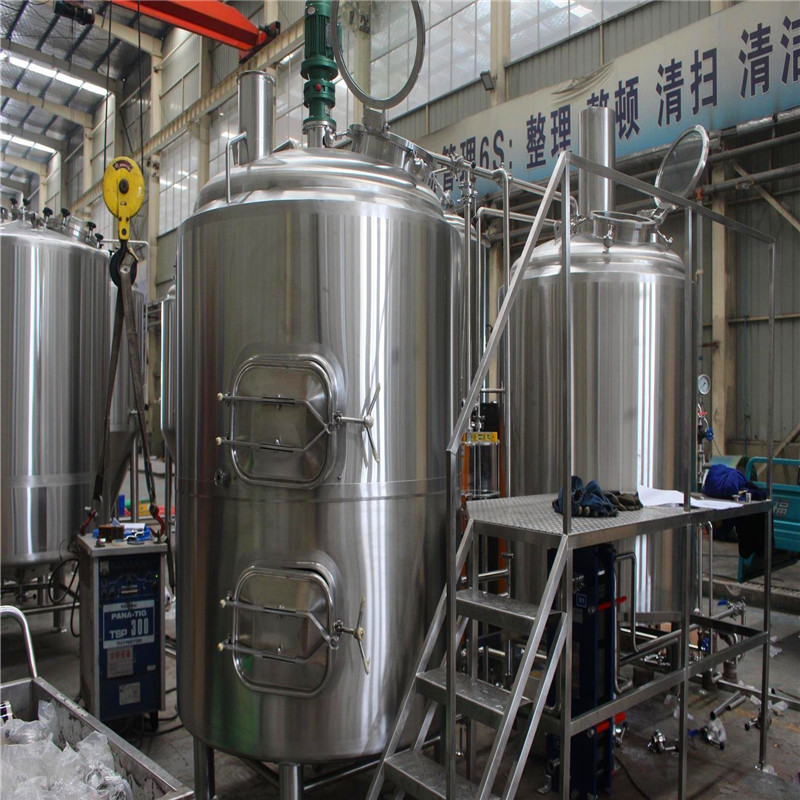

1500L mash system,
Inner shell SUS304, 3mm, Cladding 2mm; Dimensions: D=1660mm, H=3700mm.
Steam heating; Coil jacket, Pressure resistance 3bar. Heating meets the temperature rise of 1-1.5 degrees/minute;
the cylinder and bottom are individually controlled.
Rock wool insulation, thickness 80mm or 100mm.
The speed of the stirring motor is 20r/min, the material of the stirrer in the tank is stainless steel 304,
the stirring shaft has a scale, and the low part support with bushing. The upper part of the tank has a seal
to prevent steam leaking from the shaft.
The upper steam discharge pipe diameter is ¢159, and a condensate collecting device is added to the steam discharge pipe.
The drain pipe is embedded in the insulation layer.

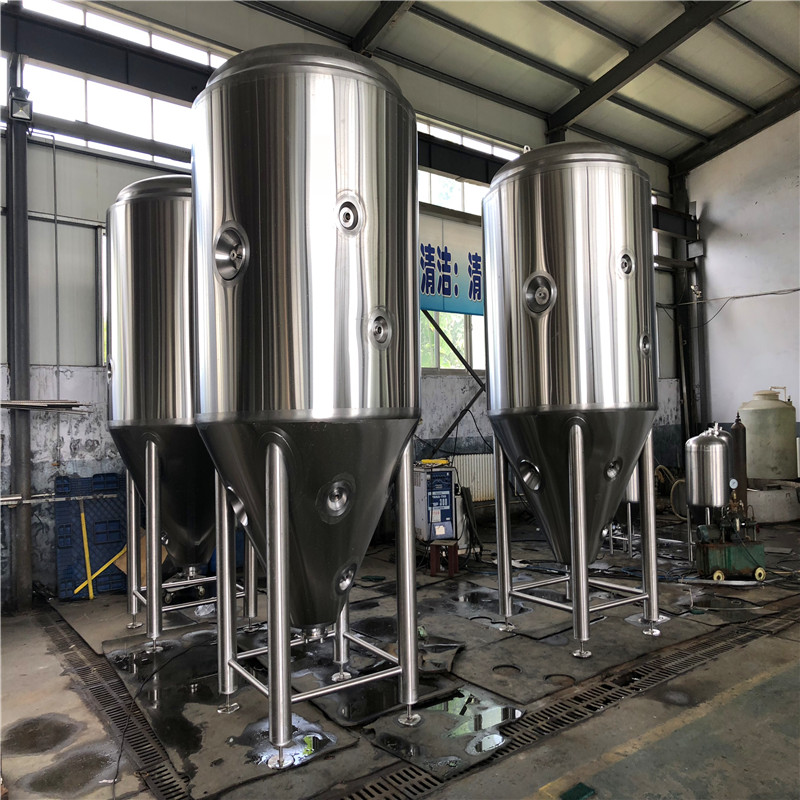

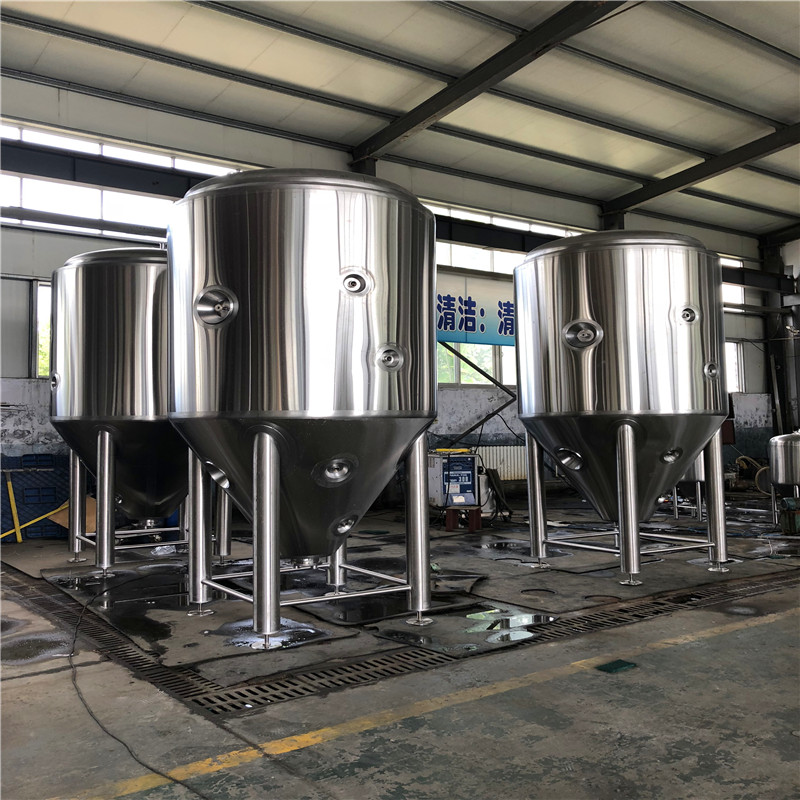

1500L fermentation system,including the 1500L fermentation tank and 1500L brite tank.
Inner shell:SUS 304, TH= 3mm; cladding material:SUS 304,TH=2mm
Dimple jacket for cooling,material is SUS 304, TH=1.5mm,
cylindrical cooling temperature area is about 40% of the cylinder surface area, the cones cooling area is about 50% of the surface of the cones;
80mm or 100mm polyurethane foam for insulation;
Withstand voltage of tank is 2.5bar.
60 °hypocone is compressive strength design;
Empty capacity by 20%.The upper part of the tank cylinder is flush with the bottom of the washing ball.
Equipped with cleaning ball; The mounting position is slightly lower than the barrel and head welds, cleaning the tube Ø32.
Internal roughness ≤0.4um, and no deformation, no scratches, weld 2B surface.
Top installation positive and negative pressure safety valve(PVRV) , single head,TOP or side manhole.
Tank with temperature sensing (-10--150 °C, 4-20mA signal, L = 200mm, 50.5 chuck connection, brand Fred),
sampling valve; the bottom of the sewage outfall, the bottom of the cone has a beer valve ;hops dry port DN100;
Bottom drain pipe Ø38;.
The internal 2B surface of the equipment, pickling and passivation treatment, external surface brush treatment,
beautiful appearance, pipeline layout, opening position, etc. satisfy the operations, on-site installation and visit requirements.
WEMAC workers and enigneers daily work round.
WEMAC will be your supportive brewing partner!
