SUS304 10000L AUTO complete beer brewing system export to South Korea Chinese supplier Zo7

The whole equipment consists of the following parts：

1.Mash tun:
Equipped with suitable jacket and mixer to ensure temperature rise rate, avoid coking
large volume, as well as wort boiling, improve the overall system’s efficiency.
2.Lauter tun:
Combined plow knife structure increase lautering efficiency,increasing the diameter of the center circular construction has improved lautering efficiency and spend grains discharge speed greatly. Because of the center circular construction basic design, the mash will be filled into the lauter tun steadily and speedily, the wort will be circulated with low oxygen uptake.Set more suitable wort outlets accord with hydrodynamics principle, assure wort flows through piping etc. long wort collection ring, make wort collection steadily and speedily.
Use specially designed raking arm to raise main shaft seal, avoid leaking to improve sanitation.Can be used as mash tun, meet a variety of process demands of craft beer.
3.Kettle tun
With inner heater, jacket, mixer. This design makes the kettle tun can be used as adjunct cooker or mash tun, meet the special demands of craft beer process; benefit for heating low-temperature wort more.Inner heater functions to wort forced circulation
4.Whirlpool tun
  Specially designed whirlpool tun bottom accord with hot trub sedimentation characteristics, combined with specially designed hot trub collection zone, can make the hot trub more closely and be discharged directly no need for washing, avoid remixing hot trub into wort when we pump the wort to PHE.

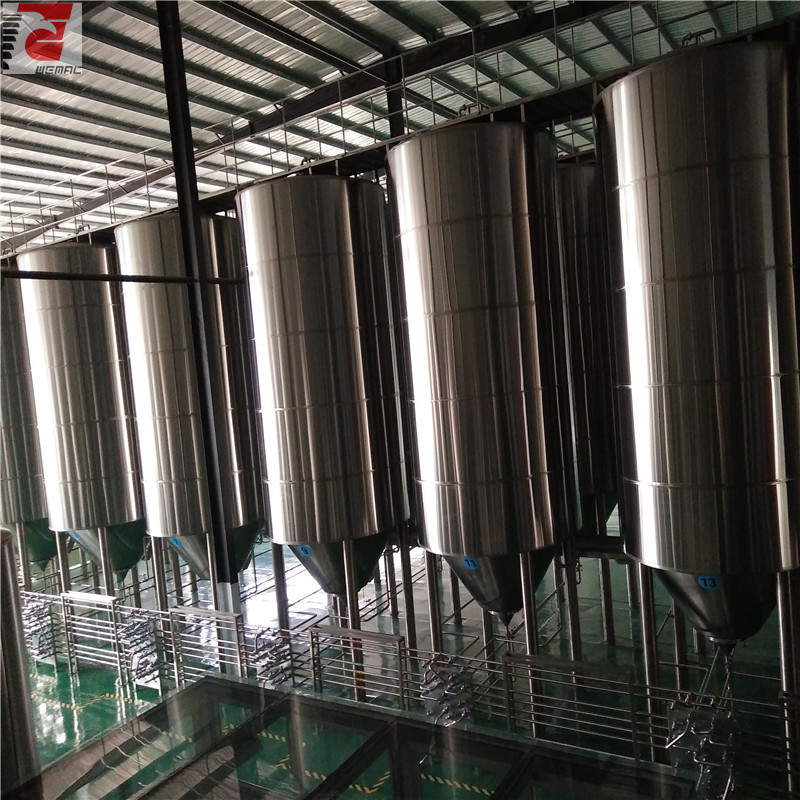

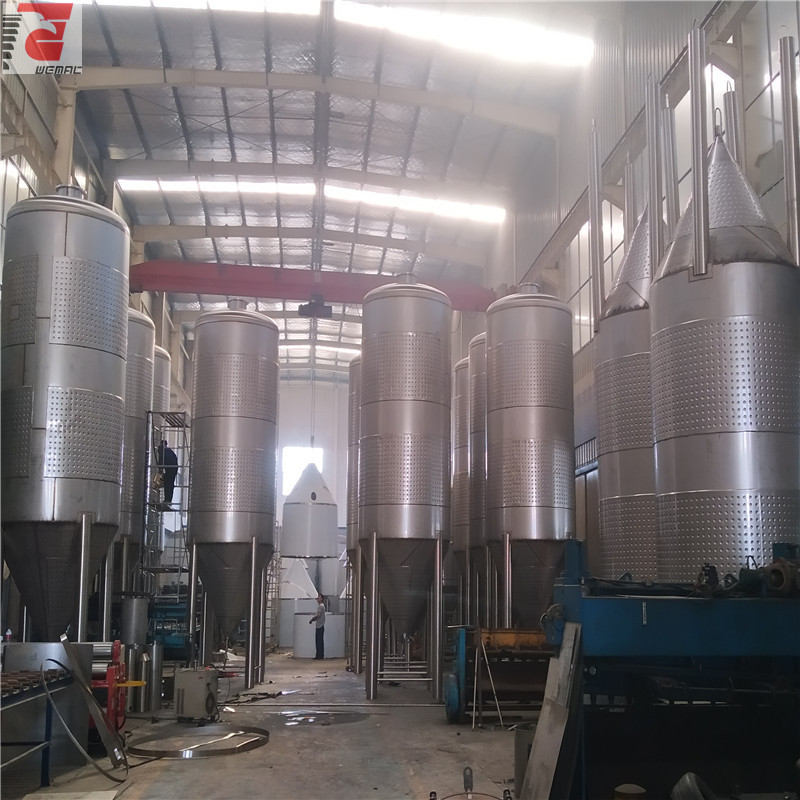

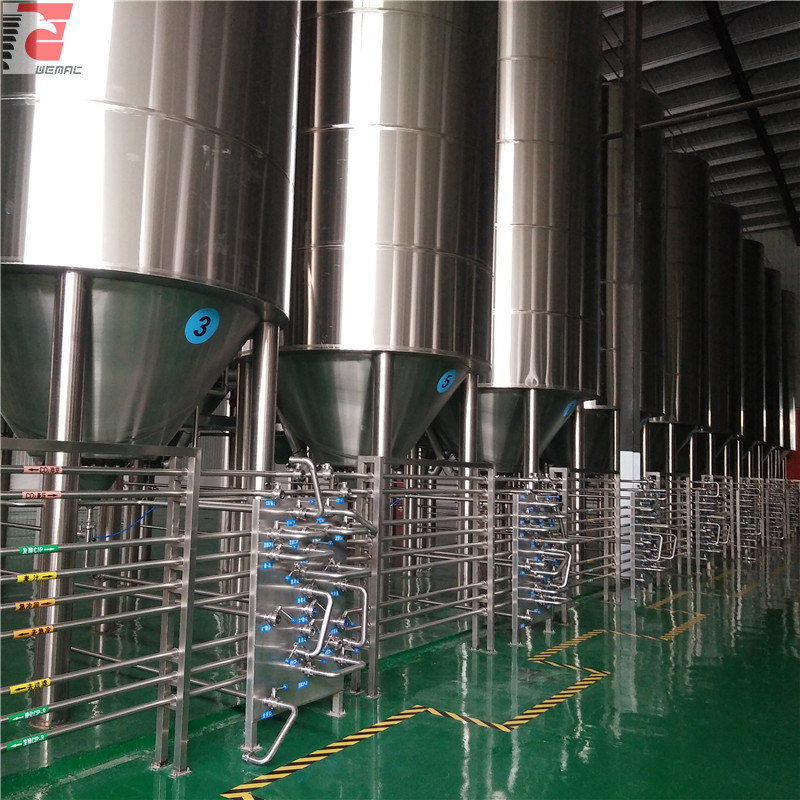

5.Fermentation tank

Brewery fermentation tanks are fermentation devices required in brewery process.Usually the brewery fermentation tanks are devided into two types,the vertical tanks and the horizontal tanks.The vertical fermentation tanks structure is featured with colomn tank body and conical bottom,top with conical seal or disc seal.While the horizontal fermentation tanks structure is featured with colomn tank body and disc seal.The inner tank material is stainless steel.The outer surface of the tank can be customized ,such as wire drawing,mirror surface,original color and copper.The brewery fermentation tanks are widely used in all kinds of beer brewing process.such as beer factory,beer pub and restaurant,also home use
