Pharmaceutical storage and distribution system for sale made in China WEMAC S015

  • * Processing : Storage and distribution system
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Size : To Be Determined
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
Design according to the customer’s actual cite and disinfection requirements, comply with the GMP, ISPE engineering guide and FDA regulations. Utilizing use of the space, easy operation, and best option of clean pipes and fittings, which will make sure no dead leg, no contamination in the process of design and installation, proper control of returning, fully meet the customer’s requirements and validation regulations.

Pharmaceutical storage and distribution system for sale made in China WEMAC S015

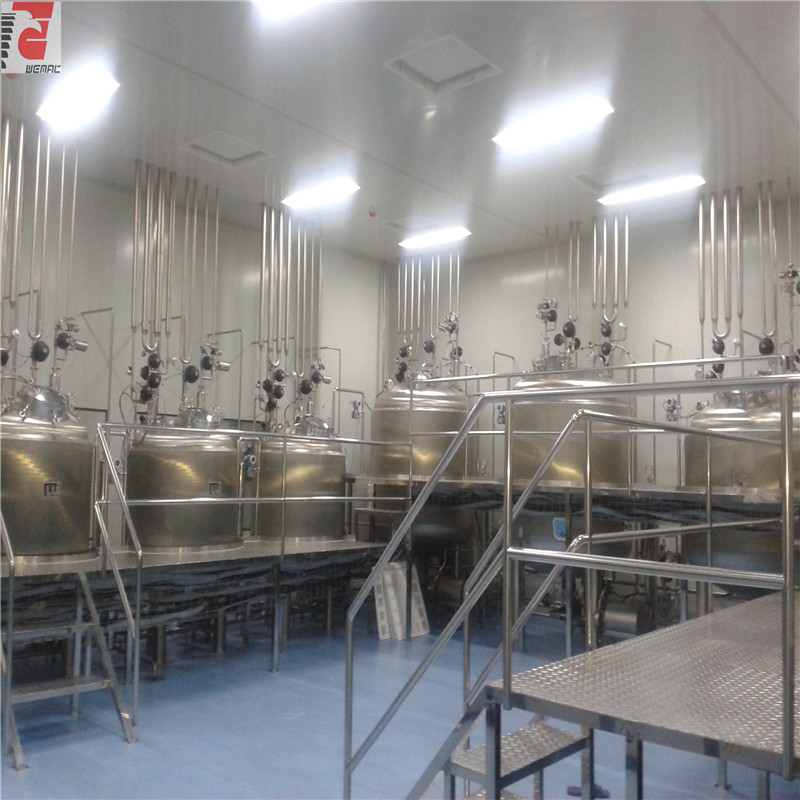

1.1 Storage and distribution system is on-site installation, the platform and stairs need to be installed, and easy to operate.

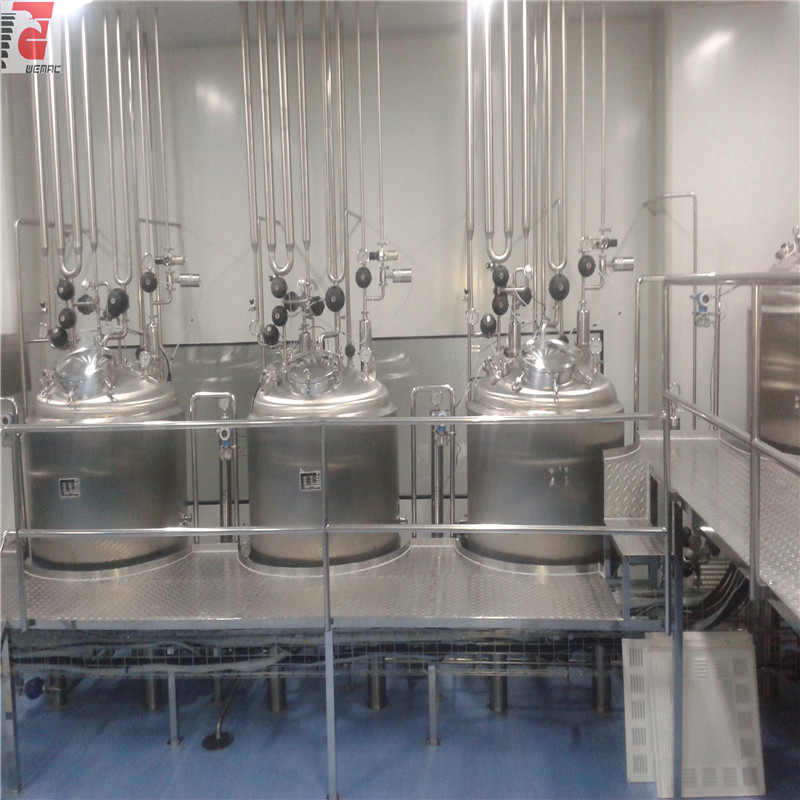

1.2 Each storage tank or mixing tank is a set of independent systems, with the total sending and total return, and the relevant data are monitored separately.

1.3 With German Gemu pneumatic diaphragm valve, automatic switch, stable quality and easy operation.

1.4 All distribution pipelines are all argon-protected and automatically welded, and endoscope monitoring is carried out on site to ensure the welding quality.



2.1 The control and preparation systems of the storage and distribution system are separately controlled.

2.2 Strong and weak electricities are separated and controlled independently.

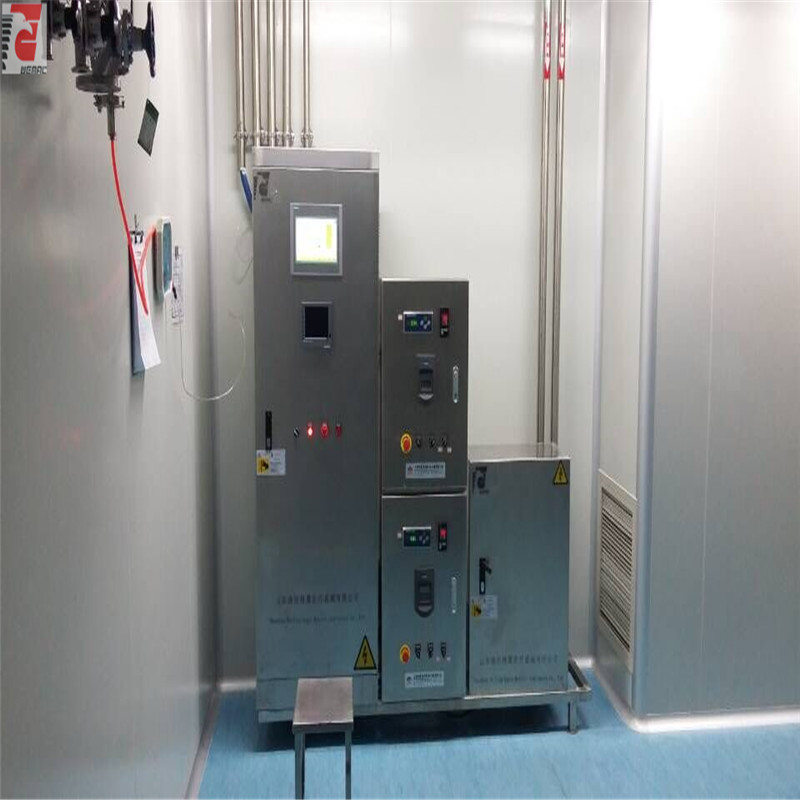

2.3 304 stainless steel control cabinet, PLC + touch screen control, the main components are all Siemens brand.

2.4 Various monitoring data is monitored online and displayed on the touch screen.

2.5 With a paperless recorder for data storage and printing.



3.1 All distribution pipes are insulated to provide safety and energy savings.

3.2 On-site installed with diaphragm pressure gauge, real-time observation of equipment operating pressure.

3.3 Each transfer pipeline is equipped with a U-shaped diaphragm valve with a sampling device.



4.1 Each tranfer system is equipped with an independent control system.

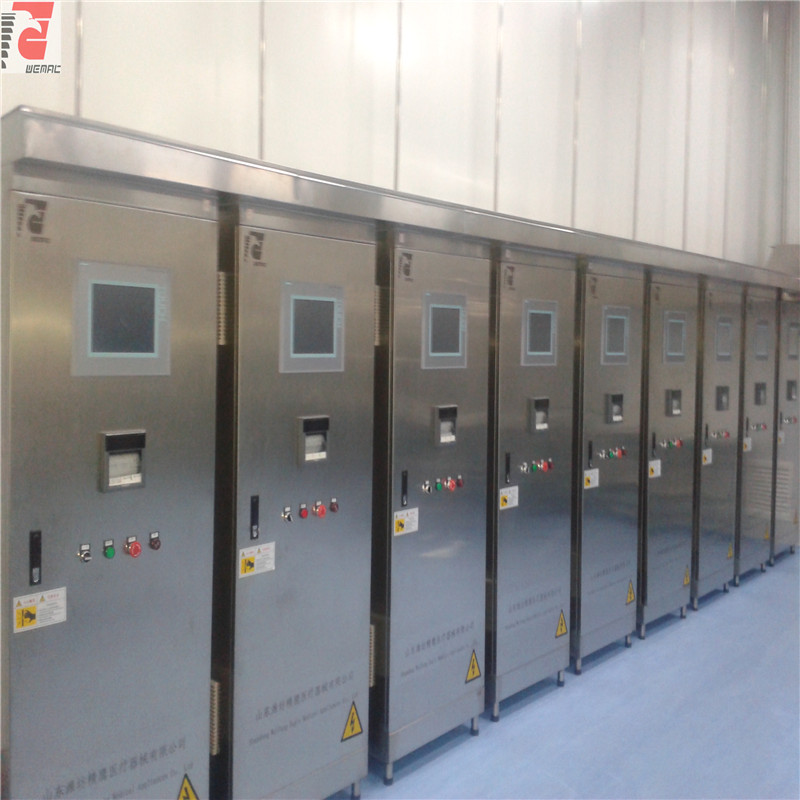

4.2 Each system is with PLC+ touch screen control, and the main components are all Siemens brands.

4.3 With sound and light alarm device.

4.4 Each system is equipped with a paperless recorder for independent data storage and printing.
