2500L Turnkey beer microbrewery brewhouse

  • * Processing : Fermenting Equipment, Beer Brewing
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
2500L commercial beer brewery system turnkey project suppliers,the four vessels combination can brewing beer at least 4 batches per day,daily beer production is 10000L,other combination like 3 cessels/5 vessels/6 vessels are optional.

2500L Turnkey craft beer microbrewery brewhouse

Component of 2500L four vessels craft beer turnkey microbrewery brewhouse:

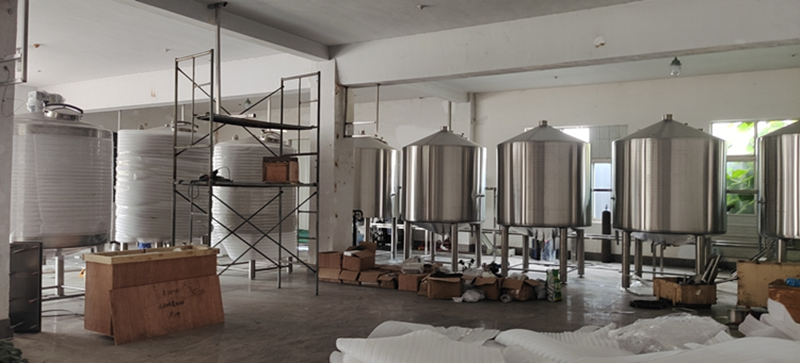

brewing brewery-brewhouse-beer brewing machine.jpg


Milling system


Stainless steel or carbon steel malt mill
Flexible or stainless steel screw conveyor




Mash system


Material:SUS316L, SUS304,copper;
Mash & kettle& lauter & whirlpool tun are any combination;dimple jacket or dribbling for heat exchanger, rock wool insulation,TH=80-100mm,upper stirring or bottom stirring,lauter plate:milling,side or bottom vinasse discharging
Hot liquid tank for option;
Plate heat exchanger: cooling form,capacity and piping meet requirements;
Oxygenation system:oxygenation form, capacity and interface form meet requirement;
Yeast adding tank depends on the customer’s requirement;
Stainless steel working platform;
Accessories:wort pump, wort tester, hop adding device,hop filter device, saccharimeter,worst rake,CIP system etc


Fermentation system


25HL(2500L) / 50HL(5000L) fermentation tank
25HL(1000L) / 50HL(5000L) beer brite tank
Amount depends on the customer's request
Dimple jacket or dribbling cooling
Option:dry hop mouth,CO2 filling device with titanium rod distributor,level gauge


CIP


Mobile or Fixed CIP


Energy system


Heating system &cooling system design capacity meet the requirement


Electric system


Stainless steel electric cabinet with imported brand PLC and touch screen or spraying plastics electric cabinet with push-button


Pipeline fittings system



Including mash line, alcohol water line and other system line,valves



Filtering and sterilization system



Candle type diatomite filter and pasteurizer




Beer distribution


To bar wine column
Keg washing&filling machine
Bottle brushing&filling machine
Can filling machine
Label machine

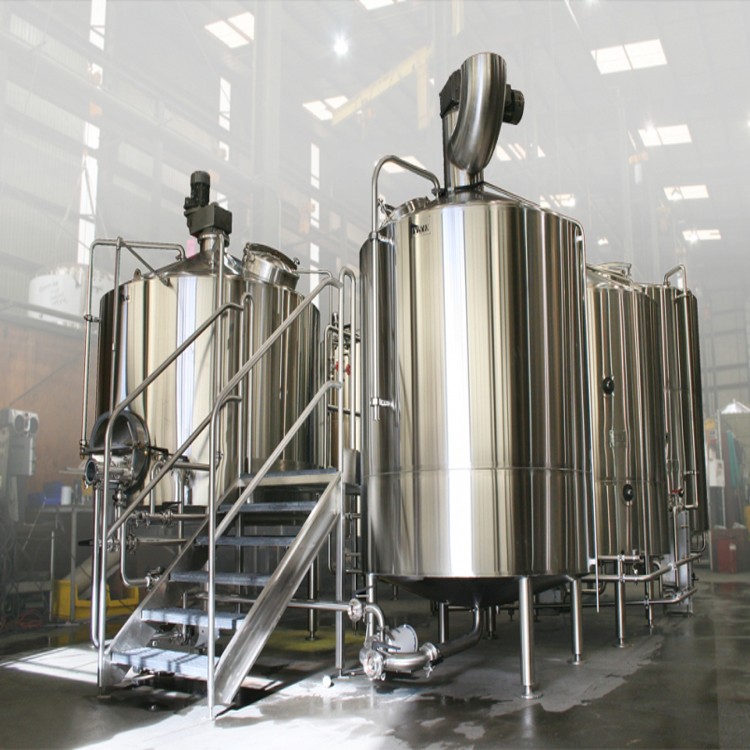

craft beer-brewery-brewing brewery-brewhouse-2500L-3000L-For sale.jpg

Five vessels brewhouse of 2500L turnkey craft beer microbrewery:

Rice tun+mash tun+lauter tun+kettle tun+whirlpool tun and also equipped with hot liquor tank.

SUS 304 shell,double shell structure,inner tanks shell thickness is 3mm,and outer shell thickness is 2mm.for these people in beer industry,the service life of the brewhouse matters a lot,our products uses more material,With better pressure resistance, the equipment is polished, pickled and passivated, and it is durable and guarantees the life of the equipment over 30 years.

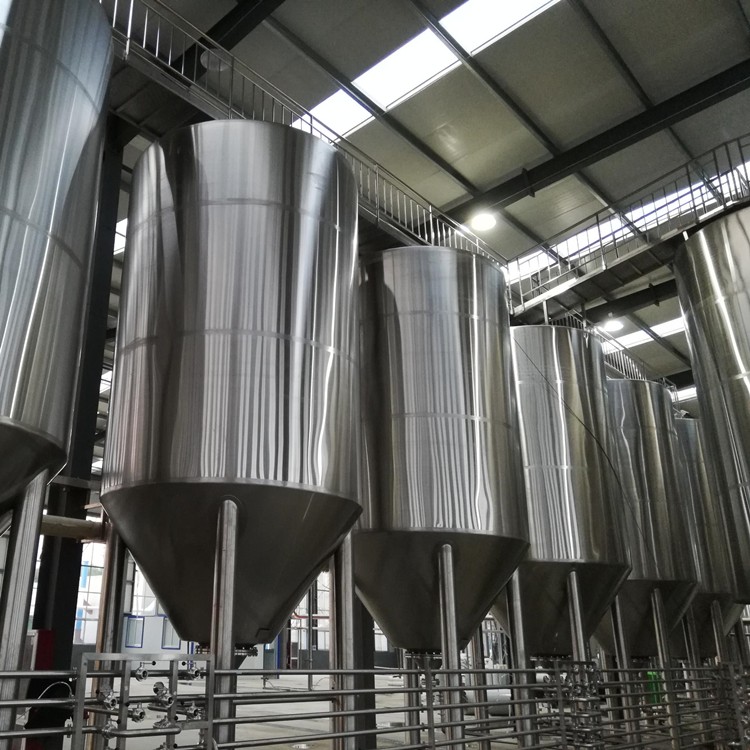

turnkey brewery suppliers-beer brewhouse-brewing equipment.jpg

Fermen tationsystem of 2500L turnkey craft beer microbrewery:

Top stainless steel monitoring platform,Conical cooling pipe,double-layer stainless steel jacket, polyurethane foam insulation layer.Pneumatic valves automatically control the entry and exit of the wort. The fermentation tank is equipped with a temperature sensor that converts the temperature signal into an electrical signal. The fermentation temperature can be monitored and controlled by the PLC control system. During use, it can be connected to the Internet through terminal devices such as mobile phones and tablets, which can be remotely automated control.

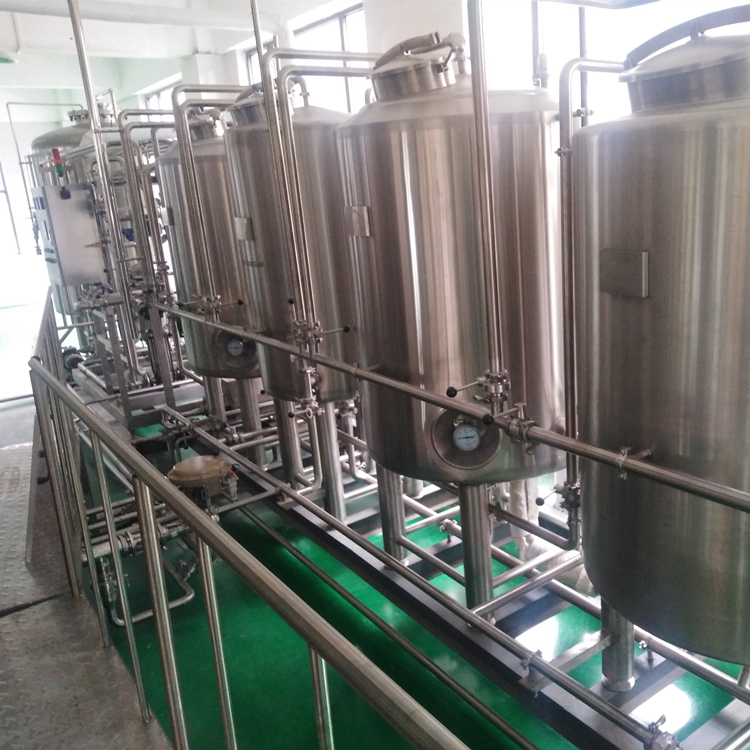

jacketed fermenter-fermentation vessels-2500L brewing system.jpg

Beer bright tank of 2500L turnkey craft beer microbrewery:

After filtering, the wort is stored in the beer bright tank and connected to the filling system, such as beer keg filling line, glass bottle filling line, can filling line.

Side sample valve,top presssure gauge,The double L pipes on the top are cold water pipes and CIP pipes respectively, which refrigerate and effectively clean the tank after fermentation. The top side of the manhole position is optional, flange connection, built-in rubber pad, no dead corners.


Daily beer production of 2500L four vessels turnkey microbrewery brewhouses:


5000L-10000L per day,the brewing batches can reach to 2-4 batches.It can meet the beer consumption demand of the population in small and medium-sized cities, and it can pay back the cost after half a year of production.


Our company established in the year of 1958,with more than 60 years working experience,our products scopes including:malt milling,beer brewhouse parts,fermentation system,beer bright tanks,cooling system,filtering,filling,water treatment,yeast propagation,heating boiler..etc.


Professional technical engineers and years of brewery design experience can design a suitable flow chart, configure and produce for you. We provide a professional after-sales service team, install and debug equipment on site, and provide equipment use training to customers. It is our task to provide customers with a complete one-stop service.


If you want to know more,please feel free to email us.
