We are a supplier and manufacturer that provides a complete set of beer brewing system solutions. export@wemac.cn

1000L Big size beer brewing system fermentation jacketed tank from WEMAC ZZ

  • * Processing : Fermenting Equipment, Beer Brewing
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
1. Material of inner tank SUS304, thickness 3mm; inner material SUS304, thickness 2mm; Dimensions: D = 1320mm, H = 2200mm.
2. Miller plate jacket, material SUS304, thickness 1.5mm, barrel cooling area is about 40% of the barrel surface area, cone cooling area is about 50% of the cone surface area.
3. Polyurethane foam insulation, thickness 60mm.
4. The pressure of the tank is 2.5bar.
5. Cone compression design at 90 °.
6. 10% capacity. The upper part of the tank cylinder is flush with the bottom of the washing ball,
7. Equipped with a washing ball, the installation position is slightly lower than the welding seam between the cylinder and the head, and the cleaning tube is Ø32.
8. Internal roughness ≤ 0.4um, and no deformation or scratches, 2B side of the weld.
9. Manholes and positive and negative pressure safety valves are installed on the upper part, DN102 hop dry inlet, single head.
10. The tank is equipped with temperature sensor (-10--150 ℃, 4-20mA signal, L = 200mm, 50.5 chuck connection, brand Fred), sampling valve; sewage outlet at the bottom, wine outlet valve at the bottom of the cone .
11. Bottom sewage pipe Ø38.
12. The 2B surface inside the equipment, pickling passivation treatment, external surface brushing treatment, beautiful appearance, pipeline layout, opening position, etc. meet the requirements of operation, site installation and visit.

WEMAC ADVANTAGES
1)Since 1958, more than 60 years' good reputation comes from top quality.
2)Professional technical team in design and customization.
3)Top manufacturing ability, national and industrial benchmark.
4)WEMAC insists on full material in tank thickness. Different from competitors'claimed thickness. WEMAC equipment is thicker and heavier than competitors'.
5)WEMAC equipment is more stable with longer service life. The oldest equipment in use is more than 40 years old.

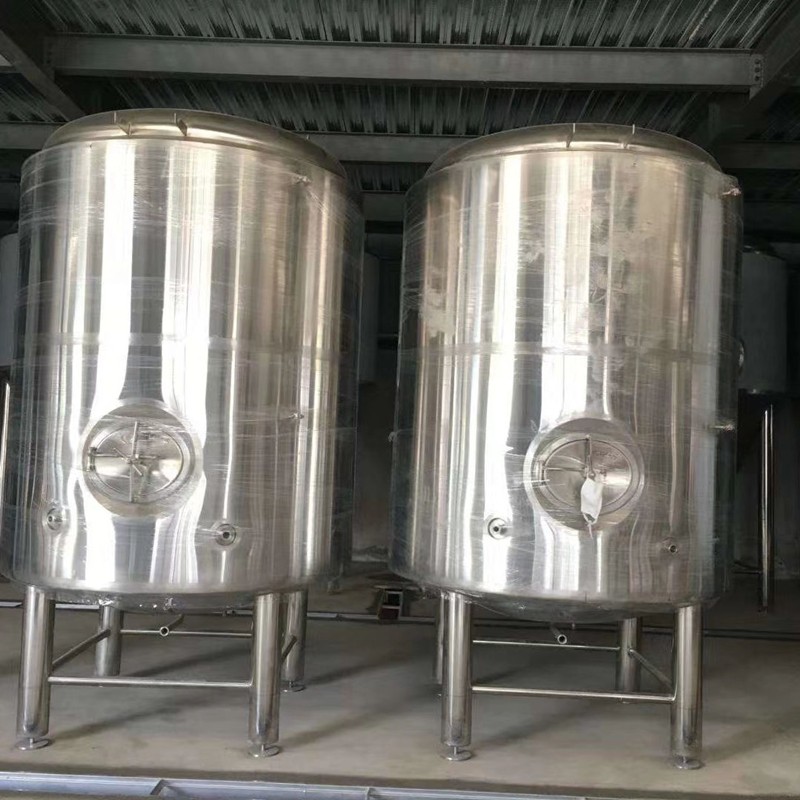

beer brewing fermentation tanks.jpg

1. Material of inner tank SUS304, thickness 3mm; inner material SUS304, thickness 2mm; Dimensions: D = 1320mm, H = 2200mm.

2. Miller plate jacket, material SUS304, thickness 1.5mm, barrel cooling area is about 40% of the barrel surface area, cone cooling area is about 50% of the cone surface area.

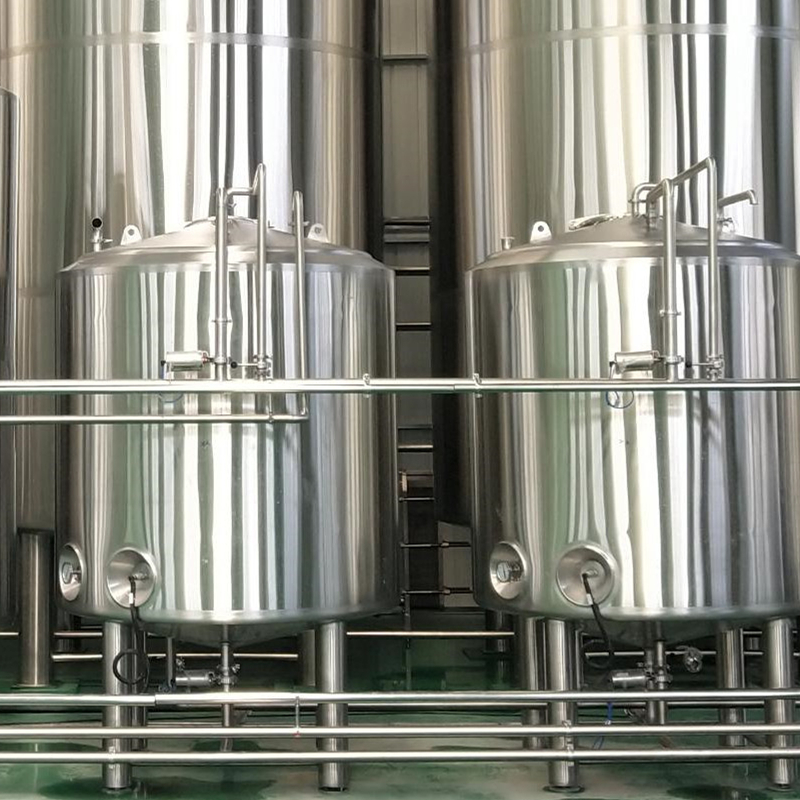

stainless steel beer brewing fermentation tanks.jpg

3. Polyurethane foam insulation, thickness 60mm.

4. The pressure of the tank is 2.5bar.

5. Cone compression design at 90 °.

6. 10% capacity. The upper part of the tank cylinder is flush with the bottom of the washing ball,


7. Equipped with a washing ball, the installation position is slightly lower than the welding seam between the cylinder and the head, and the cleaning tube is Ø32.

8. Internal roughness ≤ 0.4um, and no deformation or scratches, 2B side of the weld.

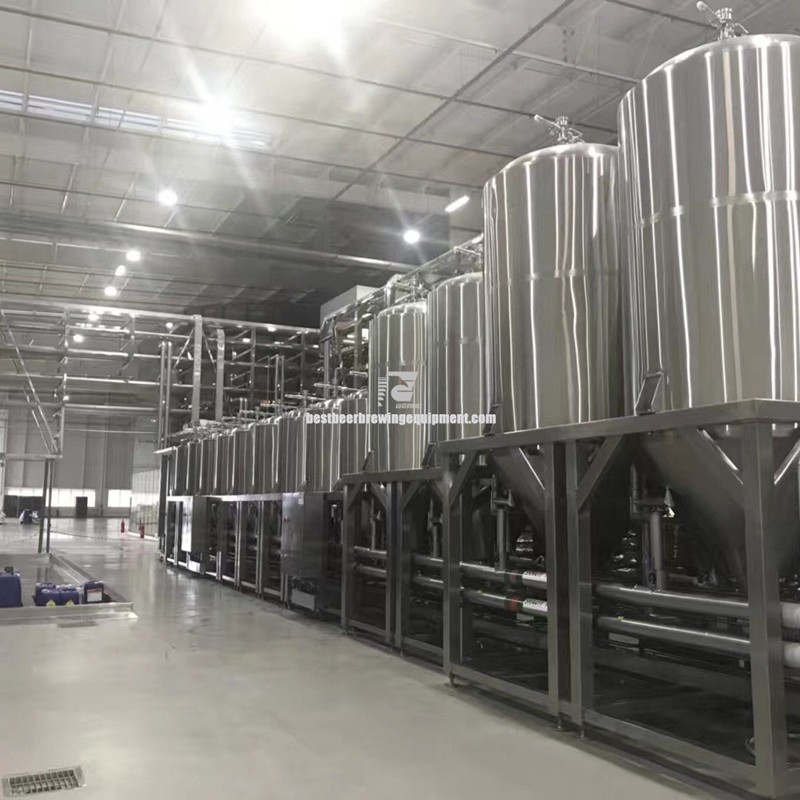

commercial beer brewing fermentation tanks.jpg

9. Manholes and positive and negative pressure safety valves are installed on the upper part, DN102 hop dry inlet, single head.

10. The tank is equipped with temperature sensor (-10--150 ℃, 4-20mA signal, L = 200mm, 50.5 chuck connection, brand Fred), sampling valve; sewage outlet at the bottom, wine outlet valve at the bottom of the cone .

11. Bottom sewage pipe Ø38.

12. The 2B surface inside the equipment, pickling passivation treatment, external surface brushing treatment, beautiful appearance, pipeline layout, opening position, etc. meet the requirements of operation, site installation and visit.

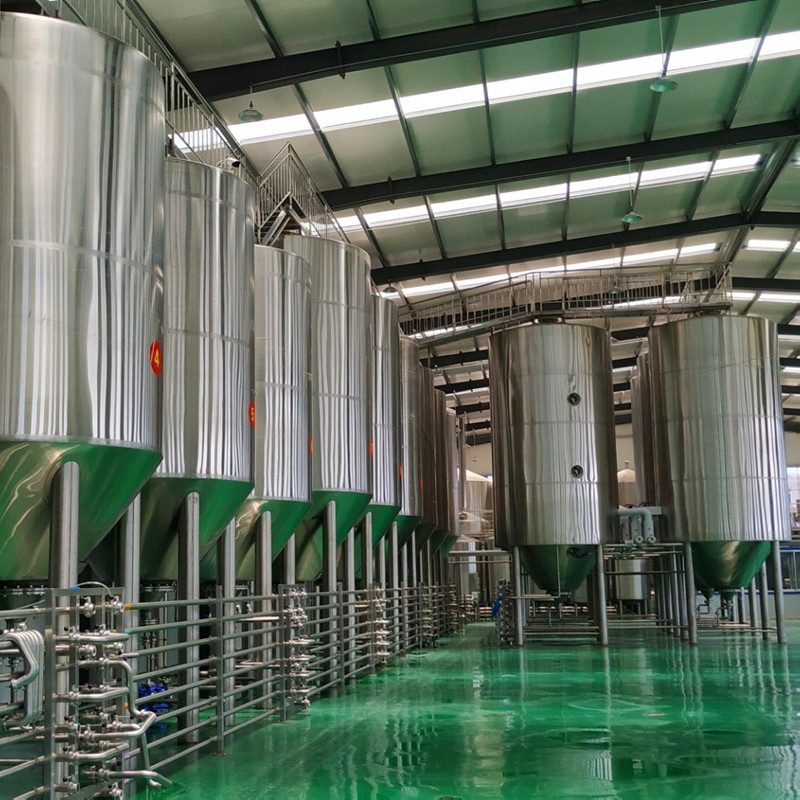

Craft brewing equipment.jpg

WEMAC beer brewing equipment was established in 1958, WEMAC beer brewing equipment is one of the top brewing equipment manufacturs and factory, including 70 senior technologists. We have 530 employees and workers in total. WEMAC provides water treatment equipment for above 60% medicine factories in Chinese local market, totally 3000+ factories and companies.
WEMAC also provides high quality beer brewing equipment, beer brewery technical guidance, personnel training, technological formulation, beer new technology research and development.
WEMAC is a professional beer fermentation equipment manufacturer in China. We produce different volumes of beer fermenters and related beer brewing equipment. Our beer fermenters range in capacity from 30 liters to 50 tons. We can meet the needs of all customers, from small restaurants, breweries to large craft breweries and industrial breweries. We also make Mini brewing equipment for families and individuals. We take the high quality 304 stainless steel as the main raw material. We insist on using all materials to confirm the thick tank wall and heavy equipment weight. This makes our beer fermentation equipment more stable and durable than other suppliers. established in 1958 ,with more than 60 years of tank manufacturing history, our manufacturing capacity and standards are in the leading position in the local market. We strive to create better equipment for our customers and become a better beer fermenter manufacturer for customers to choose from.
