WEMAC Stainless steel concial craft beer fermentation pail tanks hot sell in Norway

  • * Processing : Fermenting Equipment, Beer Brewing
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
  • * Processing : Fermenting Equipment, Beer Brewing
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
5000L (50HL) Brewery fermentation tanks technical parameter Total capacity: 6000L (60HL) effective capacity:5000L (50HL) Dimension: Φ1760mmx4540mm Material:SUS316L or SUS304 Interior Shell: 2B/mirror plate; TH=3mm Exterior Shell:2B/mirror/brushed plate; TH=2mm Dish head,cylinder,60 degree cone bottom(adjustable); Dimple jacket or dribbling cooling ,PU insulation,TH=80-100mm Withstand voltage of tank is 4bar; Tank equip with lifting leg,Electromagnetic valve or mechanical pressure regulating valve,manhole(top or side), sample valve,temperature sensor, adjustable leg,Rotating beer mouth, discharging outlet.CO2 outlet,coolant inlet and outlet, CIP inlet and outlet,wort inlet and yeast outlet,cleaning ball, pressure gauge. Option:Dry hop mouth,CO2 filling device With titanium rod distributor;level gauge

WEMAC BEER BREWING SERVICE FOR WORLD

5000L (50HL) Brewery fermentation tanks characteristics

◆100% TIG welding with pure argon gas shield;
◆The pipe mouth stretch technology and automatic tank welding equipment ensure the tank with no dead angle,
   no material residue and easy to clean;
◆Tank polishing precision ≤0.4um,no distortion, no scratches;
◆Tanks and cooling devices are tested for water pressure;
◆3D technology application make customers know tank from different angles

5000L (50HL) Brewery fermentation tanks technical parameter

Total capacity: 6000L (60HL) effective capacity:5000L (50HL)
Dimension: Φ1760mmx4540mm
Material:SUS316L or SUS304
Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm
Dish head,cylinder,60 degree cone bottom(adjustable);
Dimple jacket or dribbling cooling ,PU insulation,TH=80-100mm
Withstand voltage of tank is 4bar;
Tank equip with lifting leg,Electromagnetic valve or mechanical pressure regulating valve,manhole(top or side),
sample valve,temperature sensor, adjustable leg,Rotating  beer mouth, discharging outlet.CO2 outlet,coolant inlet and outlet,
 CIP inlet and outlet,wort inlet and yeast outlet,cleaning ball, pressure gauge.
Option:Dry hop mouth,CO2 filling device With titanium rod distributor;level gauge

1. The inner tank is made of SUS304, thickness 3mm; outsourcing is stainless steel 304, thickness 2mm;

2. Miller plate jacketed three-stage cooling, material SUS304, thickness 1.5mm, the cooling area of the cylinder is about 40% of the surface area of the cylinder, and the cooling area of the cone is about 50% of the surface of the cone.

3. Polyurethane foam insulation, thickness 150mm, full insulation.

4. The tank can withstand a pressure of 2.5bar.

5. Compression-resistant design of cone under 60°.

6. 30% empty capacity. The upper part of the cylinder of the tank is flush with the bottom of the washing ball,

7. Equipped with a washing ball, the installation position is slightly lower than the welding seam between the cylinder and the head, and the cleaning pipe is Ø38.

8. The internal roughness is ≤0.4um, and there is no deformation, no scratches, and the welding seam is 2B surface.

9. The top of the tank is equipped with positive and negative pressure, heavy hammer safety valve and vacuum valve.

10. The tank body is equipped with temperature sensing N/A sanitary interface and sampling valve; there is a sewage outlet at the bottom.

11. The bottom drain pipe Ø38.

12. The internal 2B surface of the equipment, pickling passivation treatment, external surface drawing treatment, beautiful appearance, pipeline layout, opening position, etc. meet the requirements of operation, site installation and visit.

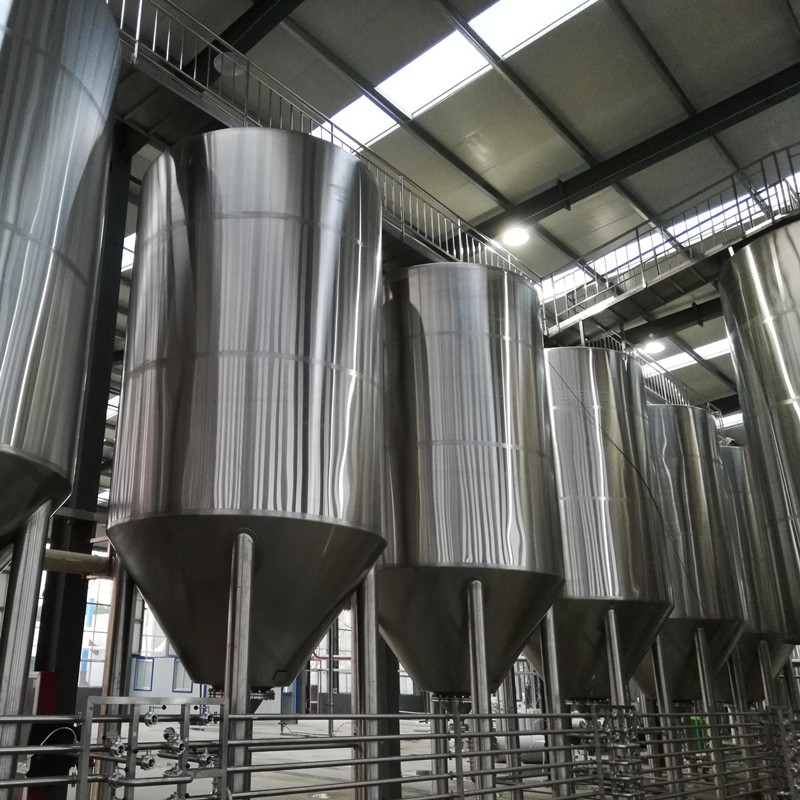

fermentation tanks installationsite in factory.jpg

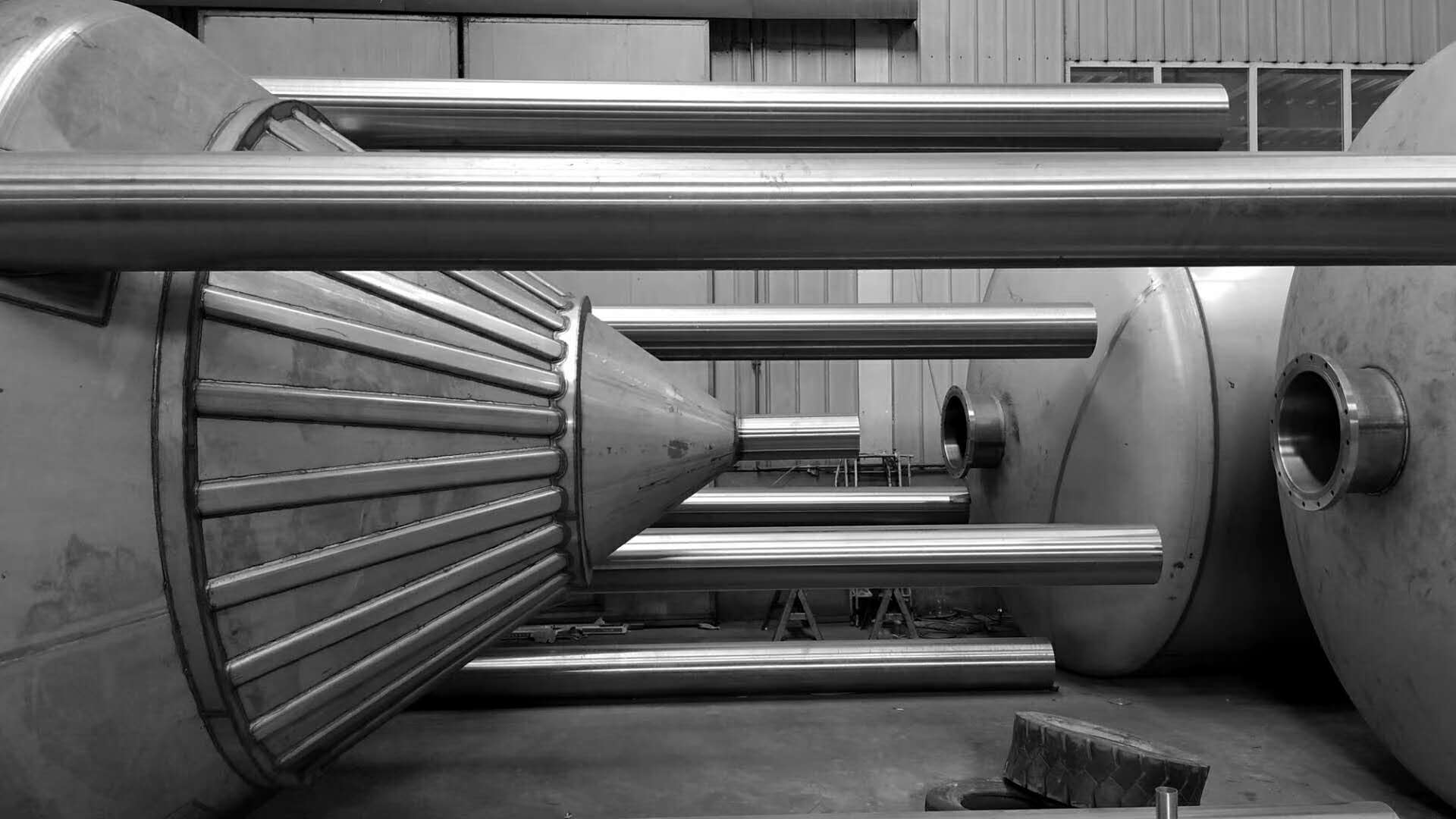

5000L conical beer fermenter.jpg

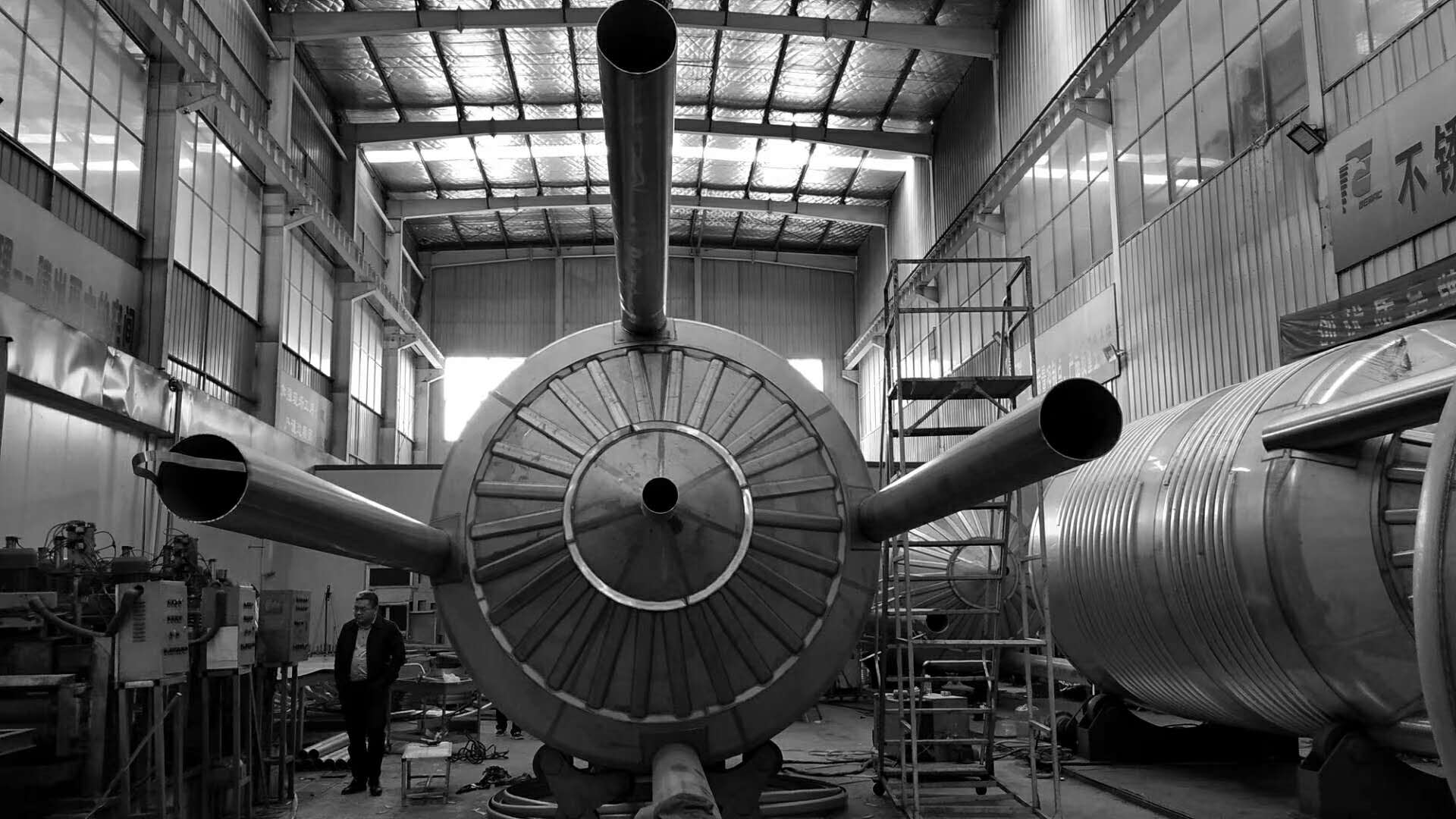

5000L Fermentation pail tank.jpg

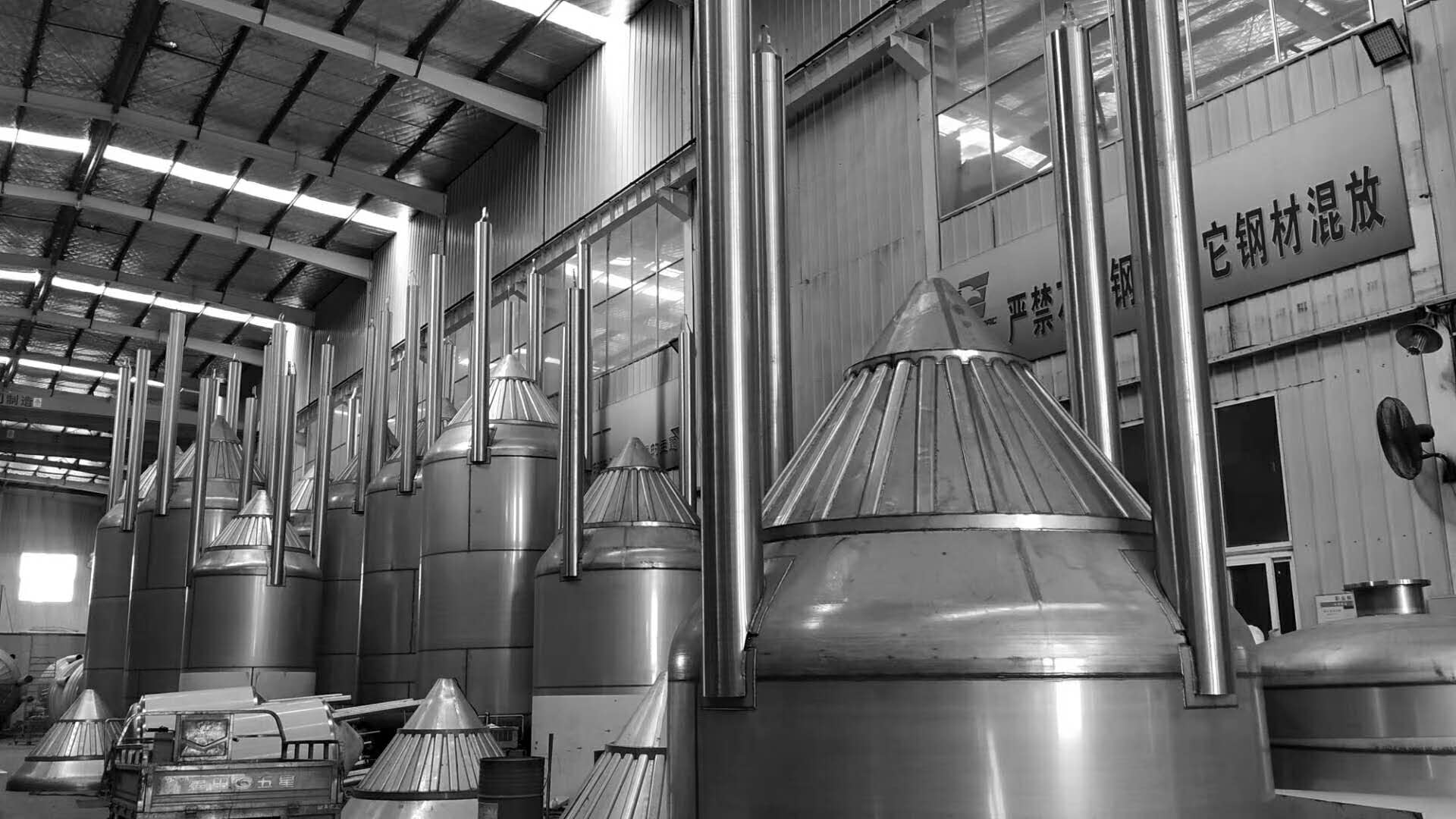

WEMAC Beer fermentation tanks.jpg

This large-scale beer fermentation equipment is suitable for use in large-scale breweries. The equipment is jacketed, contains poly-condensate foam, and has a thermal insulation effect. The thermal insulation layer is embedded with a cooling tube, which can effectively achieve the For refrigeration requirements, the fermentation tank is equipped with a temperature sensor, which is connected to an electronic control system. You can monitor the temperature of the fermentation tank in real time without touching the tank body, and can automatically adjust the temperature and fermentation time, which can truly liberate labor and save labor Labor costs. After the equipment is polished, if you put it in the factory, you will surely attract a large number of tourists to come for reference. Before leaving the factory, we will carry out strict inspections of the equipment, conduct pressure test and hydraulic test, etc., to ensure that the equipment is fully qualified. After the purchase, you can enjoy a three-year warranty service. We will be responsible for repairing any accessories or tanks that have problems. Based on our strict production and factory management, our equipment has maintained a zero failure rate for many years. You can use and buy with confidence.
