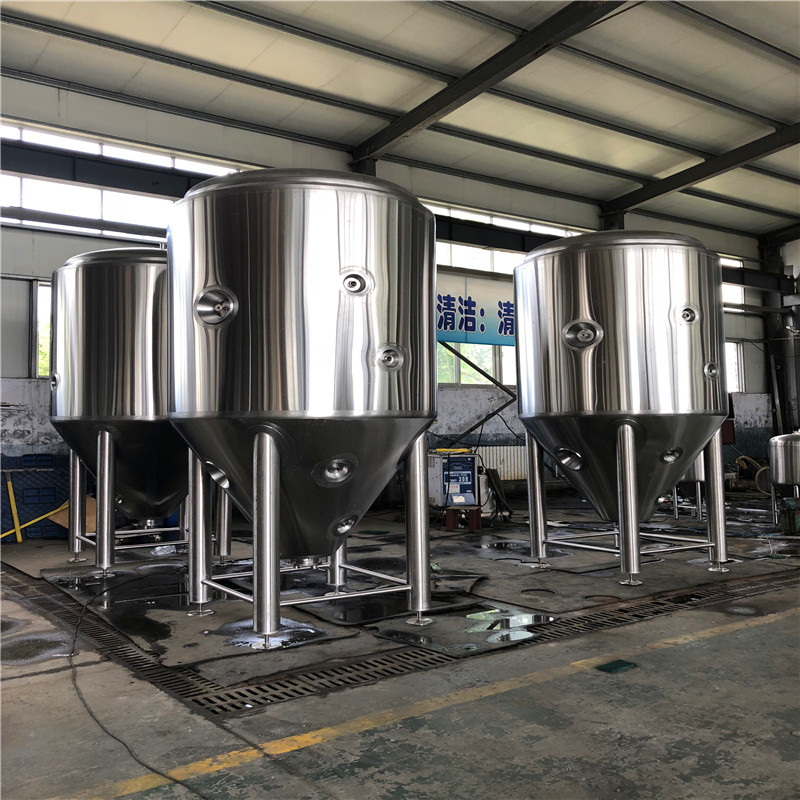

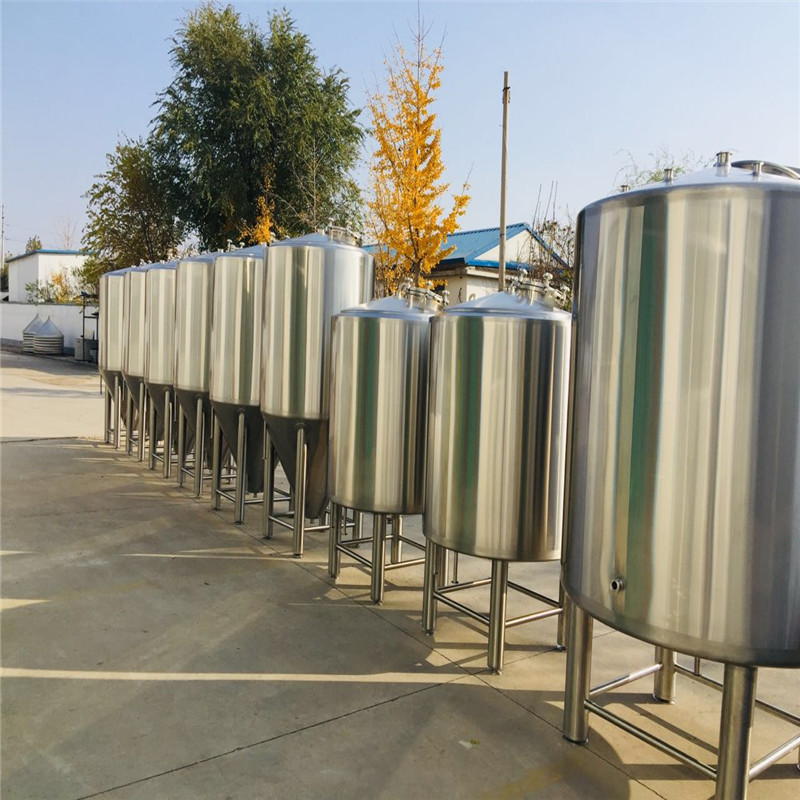

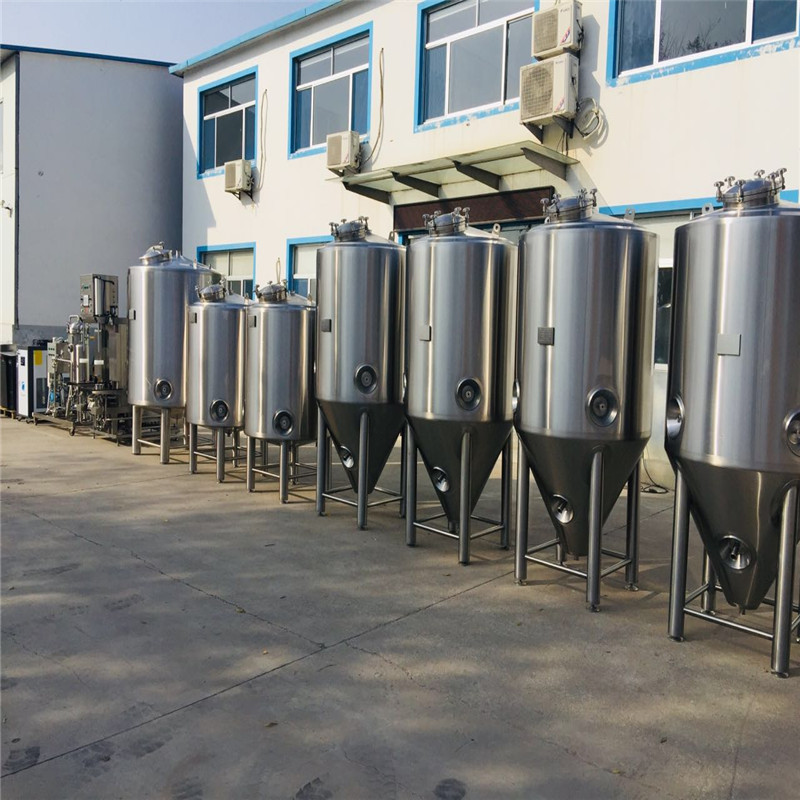

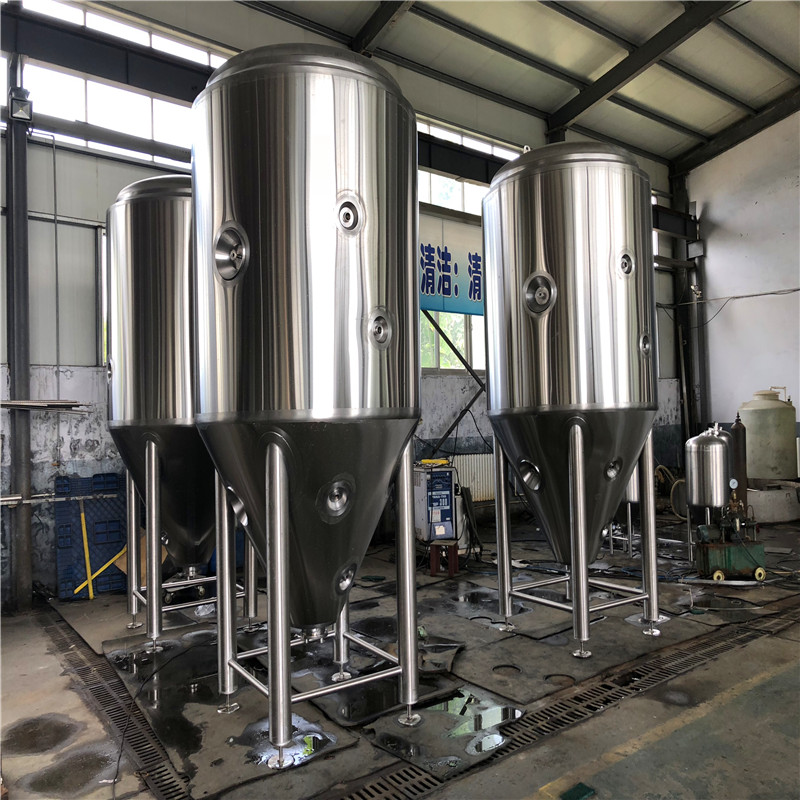

China fermentation equipment for sale beer fermentation tank WEMAC Y081

China fermentation equipment for sale beer fermentation tank WEMAC Y081

Liner material SUS304, thickness 3mm; outer material SUS304, thickness 2mm;

Miller plate jacket, material SUS304, thickness 1.5mm, the cylinder cooling area is about 75% of the surface area of the cylinder.

Two sections of Miller plate are individually temperature controlled, and two sets of ice water are imported and exported.

Polyurethane foam insulation, thickness 60mm.

With a ball washing, the installation position is slightly lower than the barrel and head weld, cleaning tube Ø32.

Internal roughness ≤ 0.4um, and no deformation, no scratches, weld 2B surface.

Side elliptical manhole and top positive and negative pressure safety valve, single cone head.

Tank with temperature sensing (-10--150 ° C, 4-20 mA signal, L = 300 mm, 50.5 chuck connection, brand Fred), sampling valve; the bottom has a sewage outlet, the side has a wine valve . Titanium rod.

The bottom sewage pipe Ø38.

Fermentation automation.Add the control part of the six tanks on the original basis, and increase the analog module IF4, the intermediate relay and the wiring inside the cabinet.

Fermentation control solenoid valve.Copper, diaphragm fluorine rubber, DC24V.

Temperature Sensor.4-20mA, quick mount chuck connection.

Wire and Cable.Signal line using shielded wire.

Threading tube.Stainless steel, the number of sizes meets the requirements for on-site installation.

The tank design pressure is 0.25mpa, the use pressure is not higher than the design pressure, the jacket design pressure is 0.33mpa, and the use pressure is 0.3mpa.

170°cone compression design.

The upper part of the tank cylinder is flush with the bottom of the washing ball.

Inside the equipment 2B surface, pickling passivation treatment, external surface wire drawing treatment, beautiful appearance, pipeline layout, opening position, etc. to meet the operation, site installation and visit require.
