China commercial beer fermenter beer factory equipment WEMAC Y074

China commercial beer fermenter beer factory equipment  WEMAC Y074

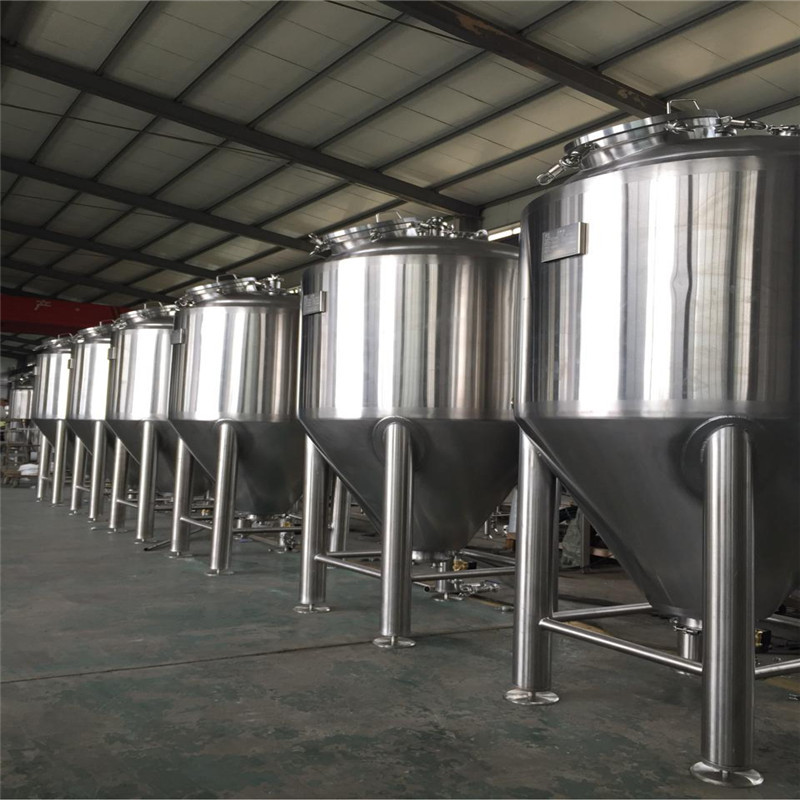

Fermentation tank

Function is wort fermentation or maturtion.

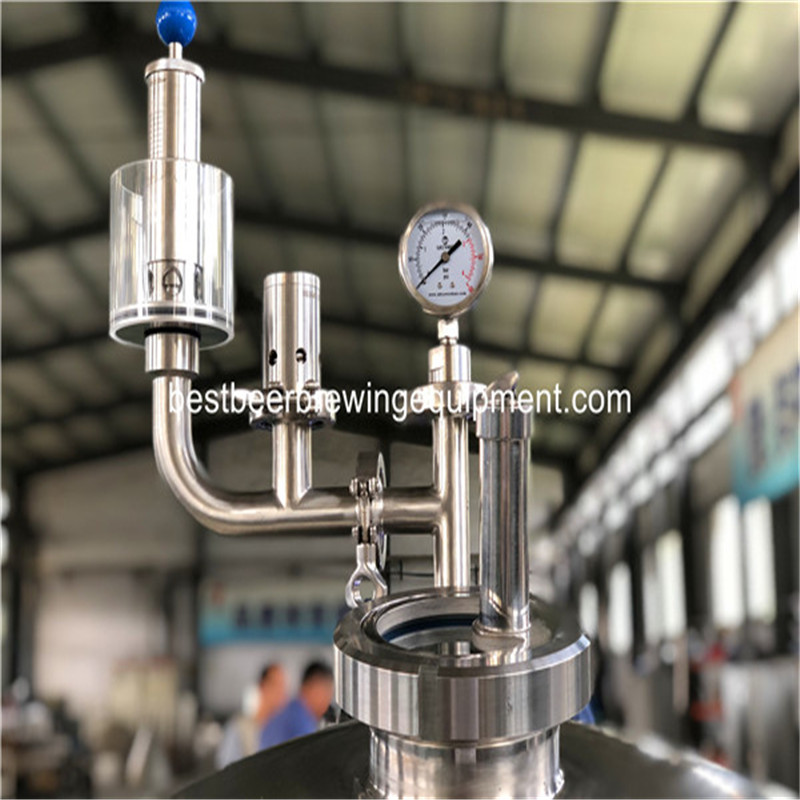

It is composed of Shadowless manhole, Pressure relief valve, Aseptic valve, Pressure gage,

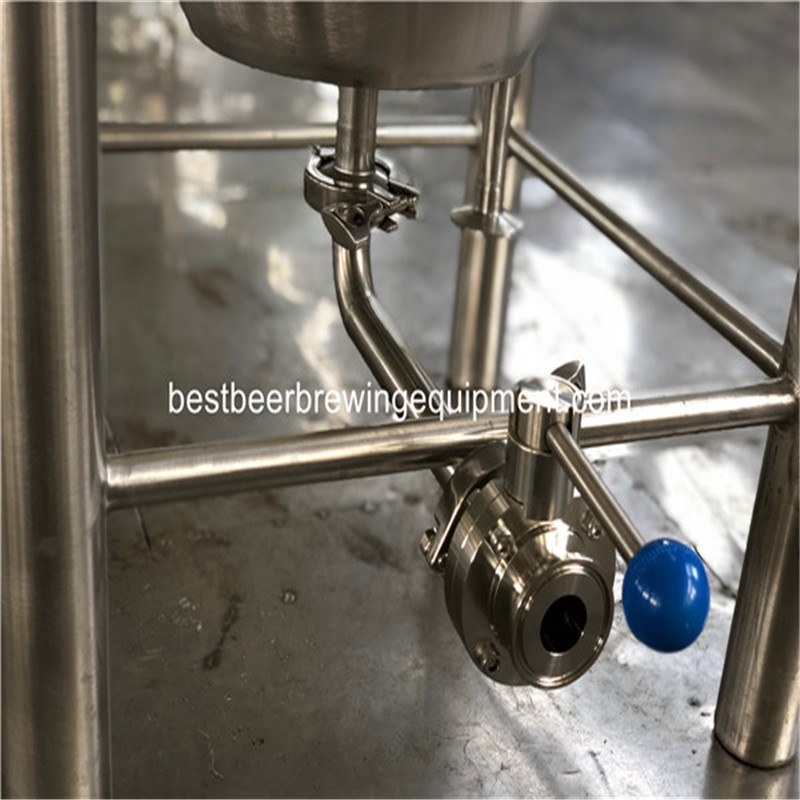

Rotate racking arm, Butterfly valve, Pressure relief valve and so on. It is the third part of 2 vessel beer brewing equipment.

Types is 50L-10000L, and even bigger volume.

Ice water belt or glycol cooling jacket around both top and bottom.

Design pressure is 0.3MPa; Working pressure is 0.15MPa.

Material: Stainless steel 304/316/316L.

Cooling method is ice water belt or glycol

For the capacity,we can produce 50L-10000L, and even bigger volume.cooling jacket around both top and bottom.

The nozzle is stretched and formed into a smooth transition with the tank, which is easy to clean and reduces the sanitary corner.

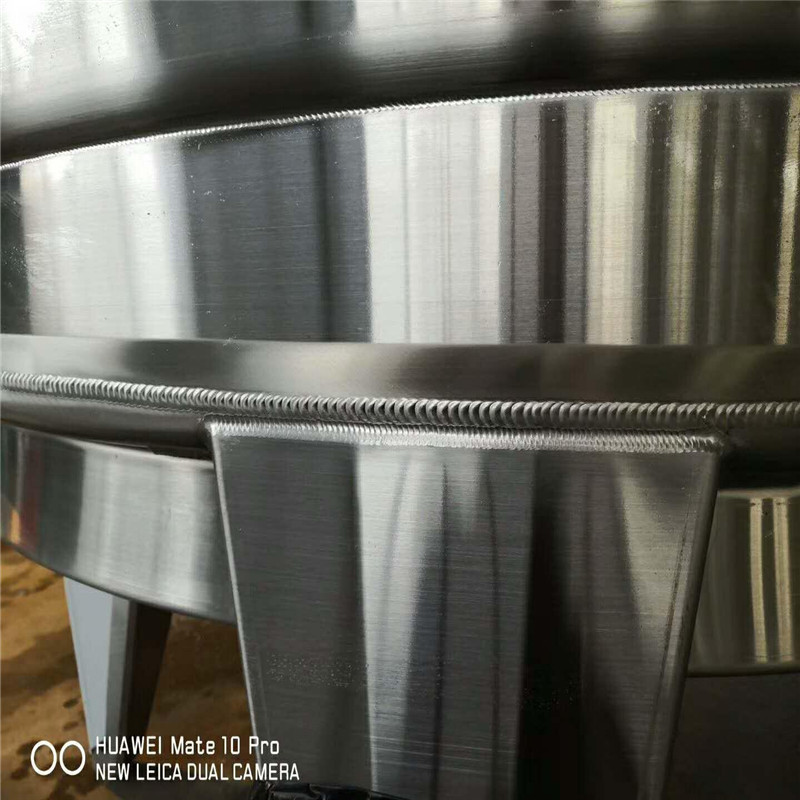

The welding seam is finely treated, without deformation;

External surface brush treatment, in beautiful appearance.

The Pipe layout, opening position, etc. all meet the operational, site installation and visit requirements.

The upper steam discharge pipe has a diameter of 159, and a condensate collecting device is added to the steam discharge pipe,

and the drain pipe is embedded in the heat preservation layer.

The bottom feed;

Temperature sensor, -10--150 ° C, 4-20 mA signal, L = 200 mm, 50.5 chuck connection, famous brand.

Optional: multi-nozzle steam condensing device.

The inner material SUS304, thickness 3mm, outer thickness 2mm;

Filter part of rock wool insulation, thickness 80mm;

WEMAC brewery equipment in very high standard.

Like the Electro-chemical polish technology,

it can polish all the location where mechanical polish equipment can not do it.

Other beer equipment manufacturers are not available.

 If you have time,pls arrange a factory visit plan for your reference.

Then you will know,different processing equipment,different configuration,different quality.

Also you will feel our company brewery culture!
