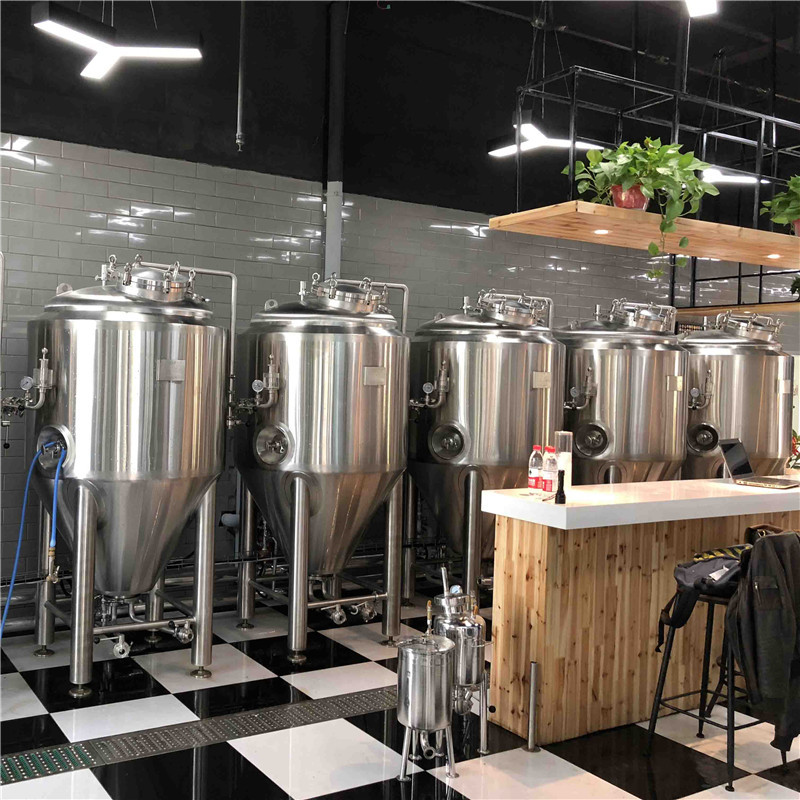

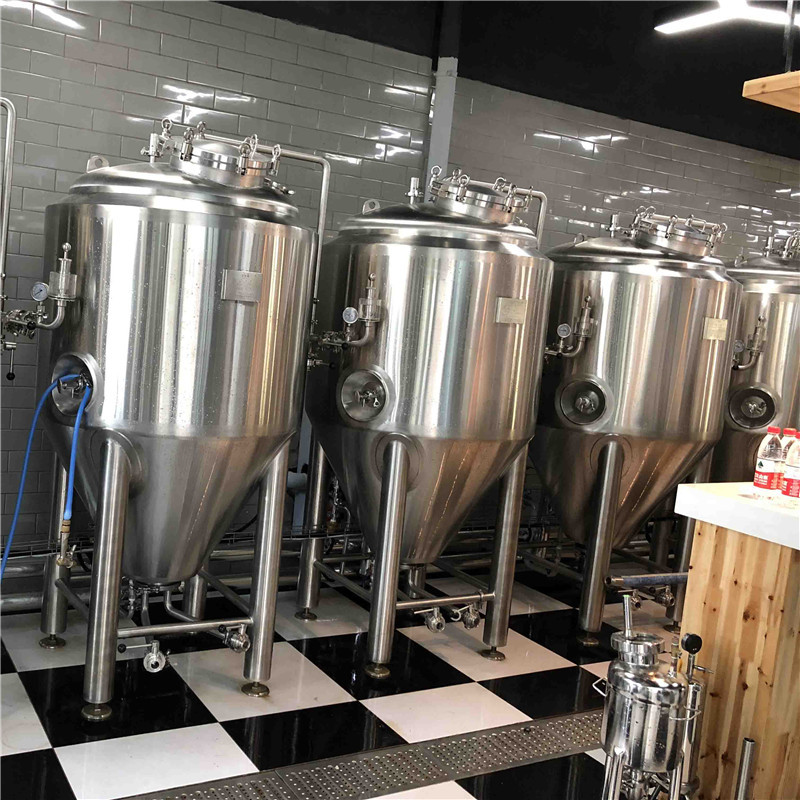

500L vertical beer fermentation tank WEMAC G008

  • * Processing : Fermenting Equipment, Beer Brewing
  • * Brand : WEMAC
  • * Condition : New
  • * Material : SUS 304 316
  • * Size : To Be Determined
  • * Place of Origin : Weifang, China (Mainland)
  • * Control system : AUTO/MANUAL
  • * Warranty : Within 24 months against the date of B/L
  • * Voltage: : To Be Determined (220V/ 380V/ 415V)
We can design fermentation tanks and bright tank for various volumes .diameters or heights according to clients requirments with following features
1.Effective volumes :100HL -6000HL
2.Tank diameter :2800-7000mm
3.Cooling jacket form semi-round pipe type or honeycomb plate type
4.Cooling media:direct cooling or alcohol.water or liquid ammonia
5.Support pattern:support by foot or seat
6.Mechanical polishing treatment on internal surface of tank :surface roughness≤ 0.4um

500L beer -brewing -equipment5.jpg

Aseptic sampling valve

Aseptic sampling valve equipped in the side of fermenter ,Material is SUS304, inner polishing roughness <0.2. Sampling beer aseptic , its good for beer inside the fermenter .Prevent beer pollution

500L beer -brewing -equipment14.jpg

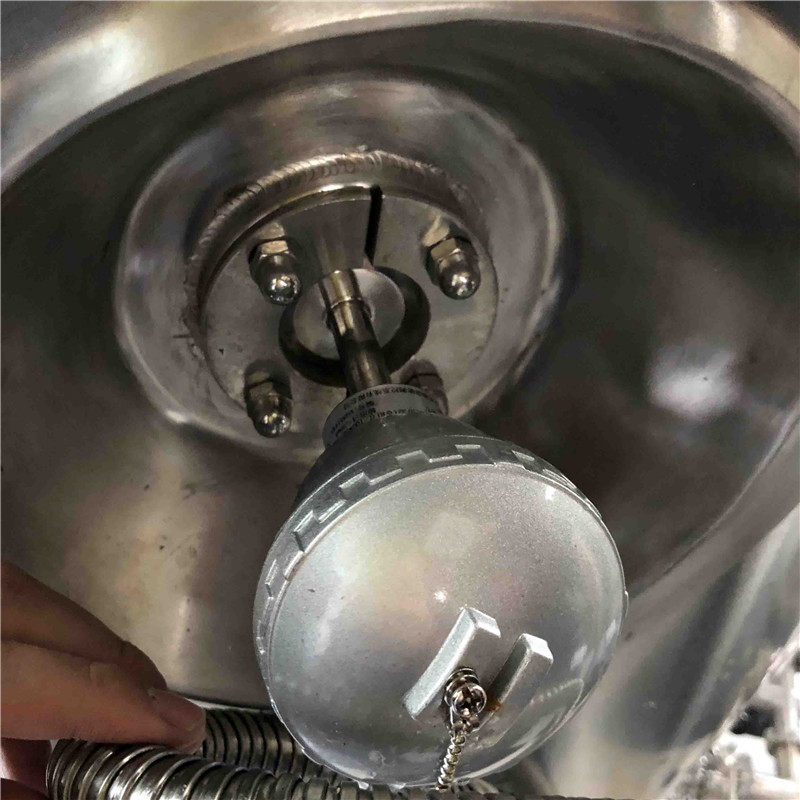

Temperature Sensor

The temperature sensor detects the temperature and transfer the temperature to control system . Ensure the fermentation process wort fermentation normal

500L beer -brewing -equipment33.jpg

Liner material SUS304, TH=3 mm; outer material SUS304, TH=2 mm.

With dimple jacket,cylinder cooling area is about 40% of the cylinder surface area, cone cooling area is about 50% of the cone surface area.

Tank pressure 2.5bar.

60 ° cone compression design.

The empty capacity is 20%. The upper part of the cylinder body is flush with the bottom of the wash ball.

Equipped with a wash ball, the mounting position is slightly lower than the weld between the barrel and the head and the cleaning tube .

Internal roughness ≤ 0.4um, and no deformation, no scratches, weld 2B surface.

500L beer -brewing -equipment29.jpg

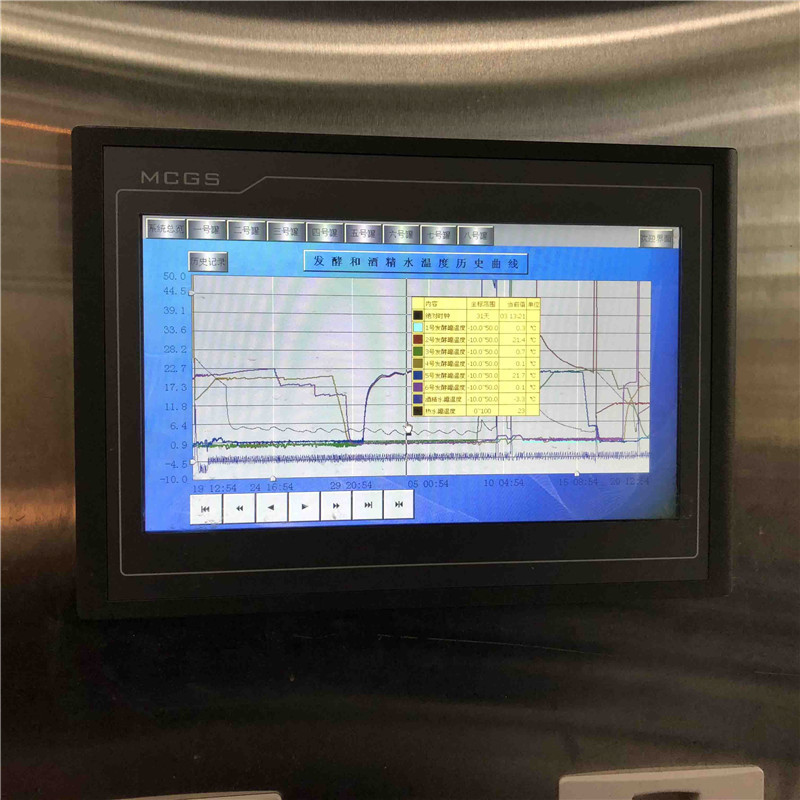

Control system

Fermentation control system fully automaticIt can show temperature history curve for each fermenter and alcohol water tank .Control the solenoid valve switch and pump

Also setting for alcohol water valve
